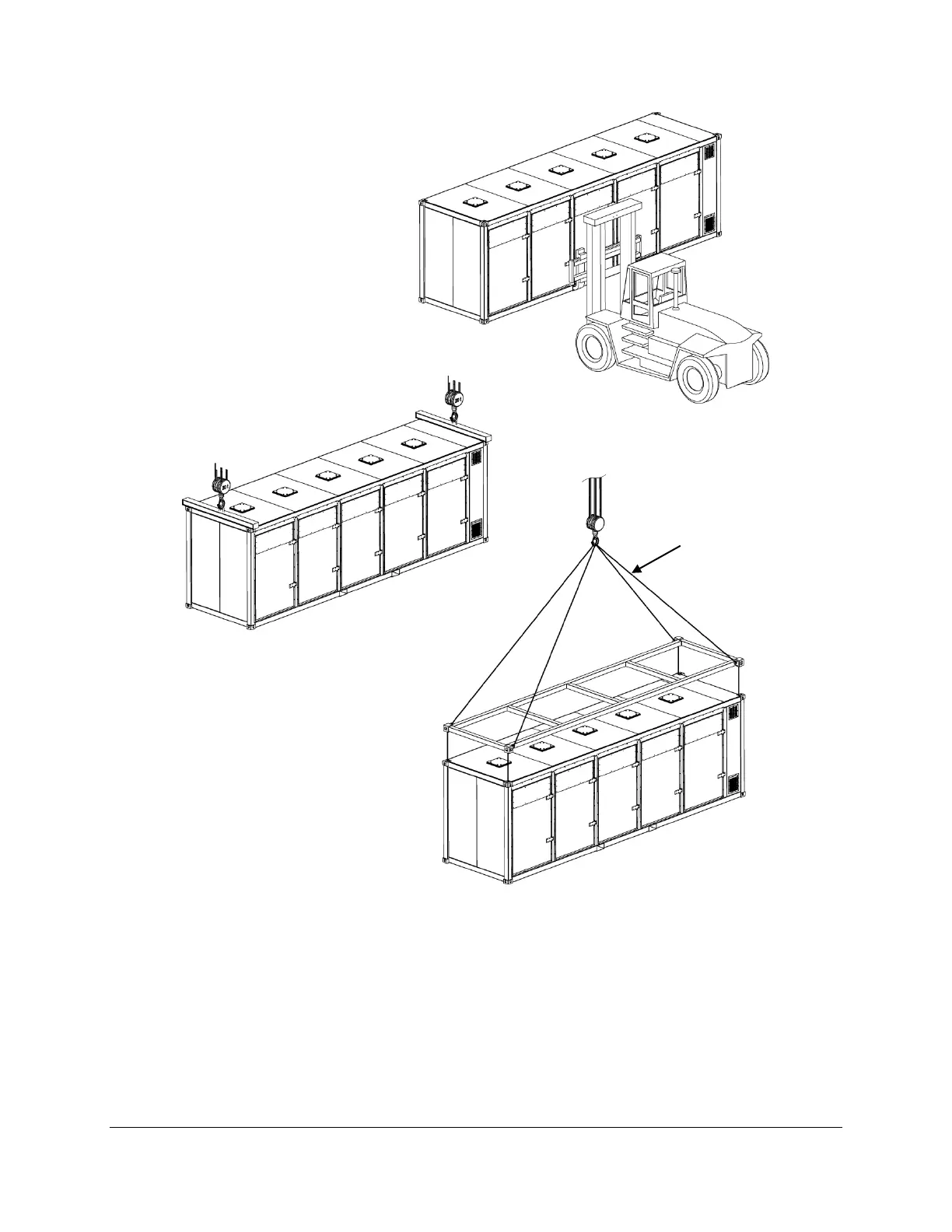

Figure 4. C1000S/C800S/C600S Lifting Example
Bottom Lift via Properly
Rated Forklift
Four Corner Top Lift
via Properly Rated
Gantry Crane
Four Corner Top Lift via
Properly Rated Spreader
Bar and Crane
Maximum Allowable
Lift Angle Determined
by Spreader Bar
Manufacturer
