Capstone Microturbine C1000 Series User Manual

Capstone Turbine Corporation • 16640 Stagg Street • Van Nuys • CA 91406 • USA
Installation Guide: Capstone C1000S/C800S/C600S with C1000 Series Controller
480064 Rev C (December 2018) Page 31 of 122
Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without
incurring any obligation either with respect to equipment previously sold or in the process of construction.
Table 3. Liquid Fuel Connection Specifications
Parameter
Specification
Torque
Pressure
Fuel Supply Header
1 1/2 inch FNPT
286 Nm (211 ft-lb)
3.4 to 34.5 kPag
(0.5 to 5.0 psig)
Fuel Return Header
3/4 inch FNPT
106 Nm (78 ft-lb)
34.5 kPag (5.0 psig)
maximum
Skid Drain Header
1/2 inch FNPT
73 Nm (54 ft-lb)
Atmosphere
Filter Drain Header
1/2 inch FNPT
73 Nm (54 ft-lb)
Atmosphere

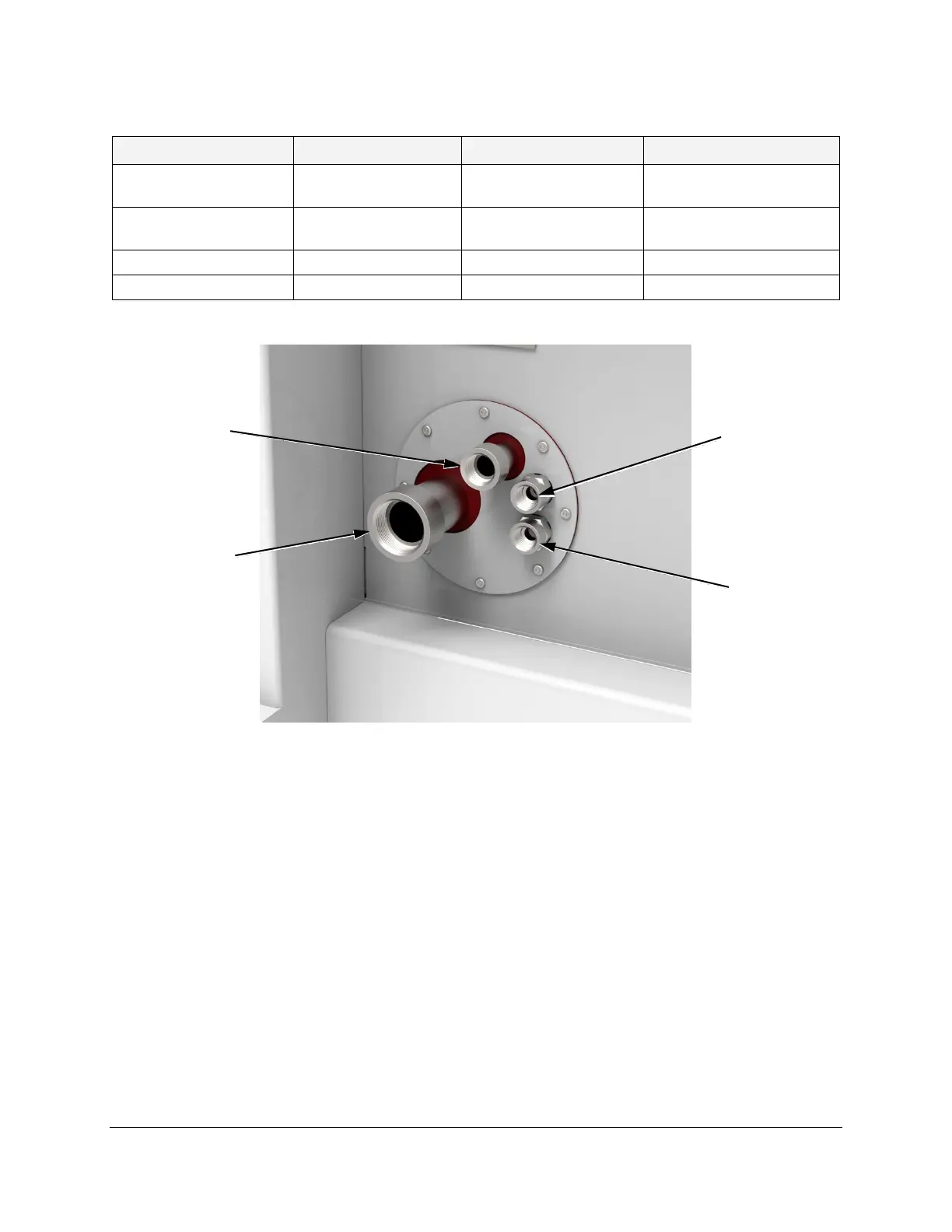

Figure 7. Liquid Fuel Connection
4.2. Exhaust Connection
4.2.1. Exhaust Specifications
Exhaust connection requirements are as follows:
 Exhaust diameter: 305 mm (12 inch) outer diameter
 Exhaust ducting material to be rated to 371 °C (700 °F)
 Maximum allowable backpressure:
o Low emissions: 1245 Pa (5 in WC)
o All other: 1990 Pa (8 in. WC)
 Loading: not more than 22.7 kg (50 lb) per bay
Fuel Supply
Fuel Return
Skid Fuel
Drain (Leaks)
Water
Separator
Drain
