Capstone Microturbine C1000 Series User Manual

Capstone Turbine Corporation • 16640 Stagg Street • Van Nuys • CA 91406 • USA
Installation Guide: Capstone C1000S/C800S/C600S with C1000 Series Controller
480064 Rev C (December 2018) Page 57 of 122
Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without
incurring any obligation either with respect to equipment previously sold or in the process of construction.
Shutoff
Valve
Natural Gas
> 95 psig
Sediment
Trap
Shutoff
Valve
Shutoff
Valve
Natural Gas
< 5 psig
Shutoff
Valve
Sediment
Trap
Pressure
Regulator
Pressure
Indicator
Purge
Line
Microturbine
Filter
Microturbine
HPNG
Condensate Drain
Pressure
75-80 psig
Relief
Valve
Pressure
Regulator
Pressure
Indicator
Purge
Line
Microturbine
Filter
Microturbine
HPNG
Condensate Drain
Pressure
75-80 psig
Relief
Valve
Shutoff
Valve
Shutoff
Valve
Pressure
Regulator
Purge
Line
Microturbine
Filter
Microturbine
LPNG
Condensate Drain
Pressure
0.5-5 psig
Relief
Valve
Pressure
Regulator
Purge
Line
Microturbine
Filter
Microturbine
LPNG
Condensate Drain
Pressure
0.5-5 psig
Relief
Valve
Shutoff
Valve
3
rd
Party
Compressor
Natural Gas
< 80 psig
Compressor
Filter
Condensate
Drain
Sediment
Trap
Shutoff
Valve
Shutoff
Valve
Pressure
Regulator
Pressure
Indicator
Purge
Line
Microturbine
Filter
Microturbine
HPNG
Condensate Drain
Pressure
75-80 psig
Relief
Valve
Pressure
Regulator
Pressure
Indicator
Purge
Line
Microturbine
Filter
Microturbine
HPNG
Condensate Drain
Pressure
75-80 psig
Relief
Valve

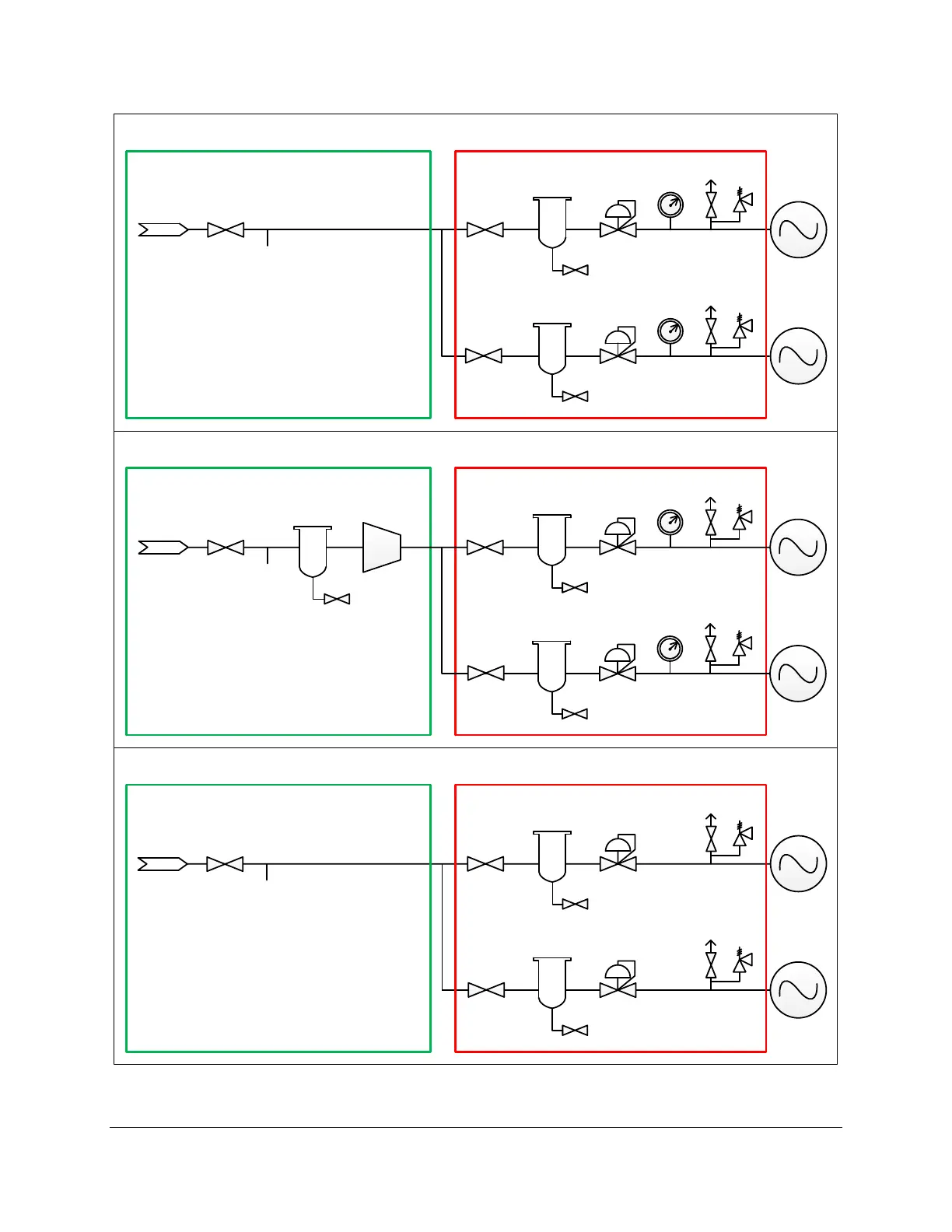

High Pressure Natural Gas Installation Example
High Pressure Natural Gas Installation with 3rd Party Compressor Example
Low Pressure Natural Gas Installation Example
> 95
psig
Figure 25. Pipeline Natural Gas Installation Examples
