Capstone Turbine Corporation • 16640 Stagg Street • Van Nuys • CA 91406 • USA
Installation Guide: Capstone C1000S/C800S/C600S with C1000 Series Controller
480064 Rev C (December 2018) Page 38 of 122
Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without
incurring any obligation either with respect to equipment previously sold or in the process of construction.

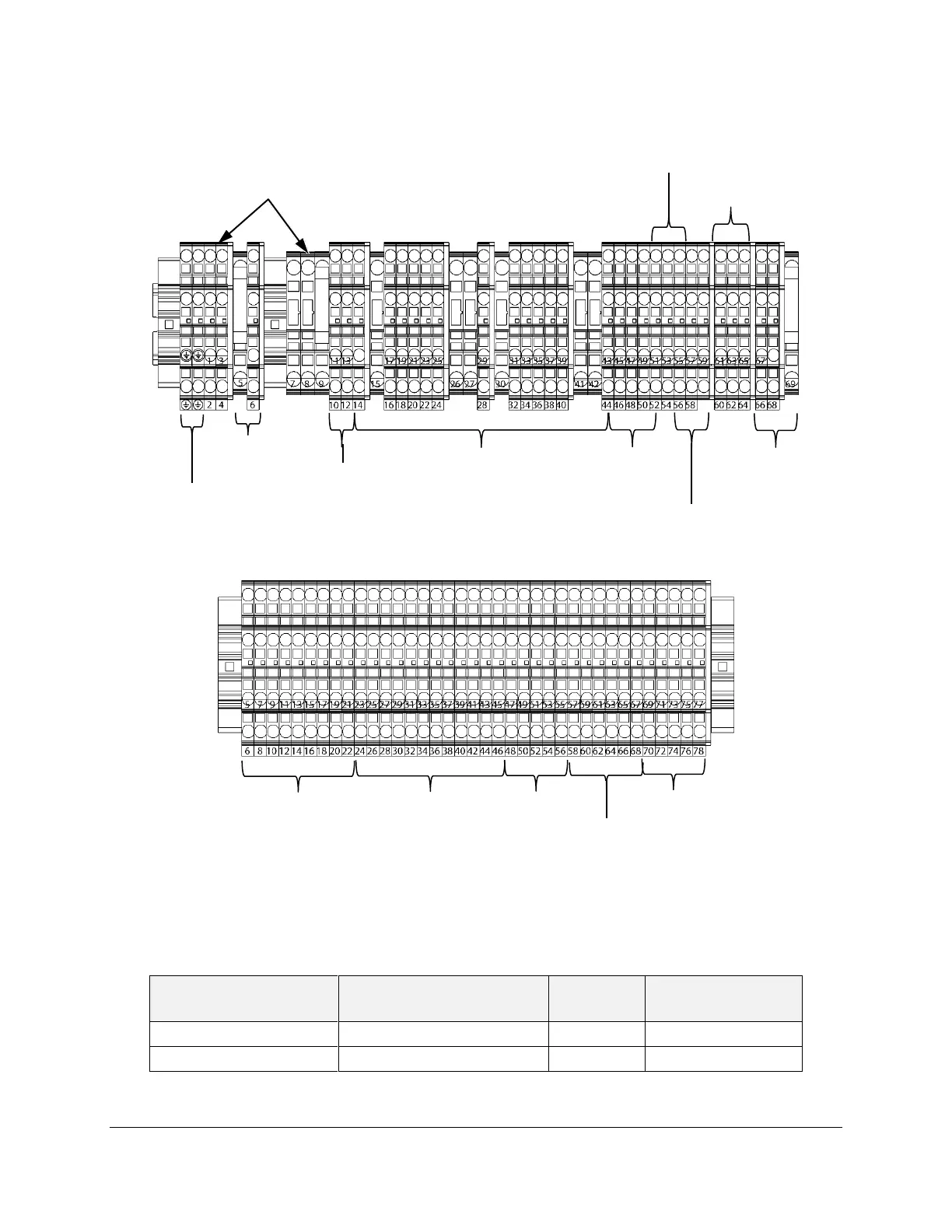

Figure 13. C1000 Series Controller Terminal Blocks for External Connections
Table 8. Terminal Block Wire Specifications
Terminal Block Type
(Figure 13)
Conductor Cross Section
AWG
Stripping Length
Double Level
0.08 to 4 mm
2
28 to 12
8 to 10 mm
Single Disconnect
0.08 to 6 mm
2
28 to 10
8 to 10 mm
TB1
TB3
Modbus I/O
(60-65)
Internal Power
Connections
(1-4, 7-9)
External Wake
(52-55)
Sync, Inter Start,
E-Stop To/From
Bays (14-43)
DMSC PWR
Output (5-6)
Chassis
GND
E-Stop
Inputs
(10-13)
External
Sync Input
(44-51)
DMSC
Input
(56-59)
Spare and
Internal
(66-69)
Digital Inputs
(5-22)
Digital Outputs
(23-46)
Digital Inputs
(69-78)
Fault
Inputs
(57-68)
Reserved
(47-56)
