3-CONTROLSANDINSTRUMENTS

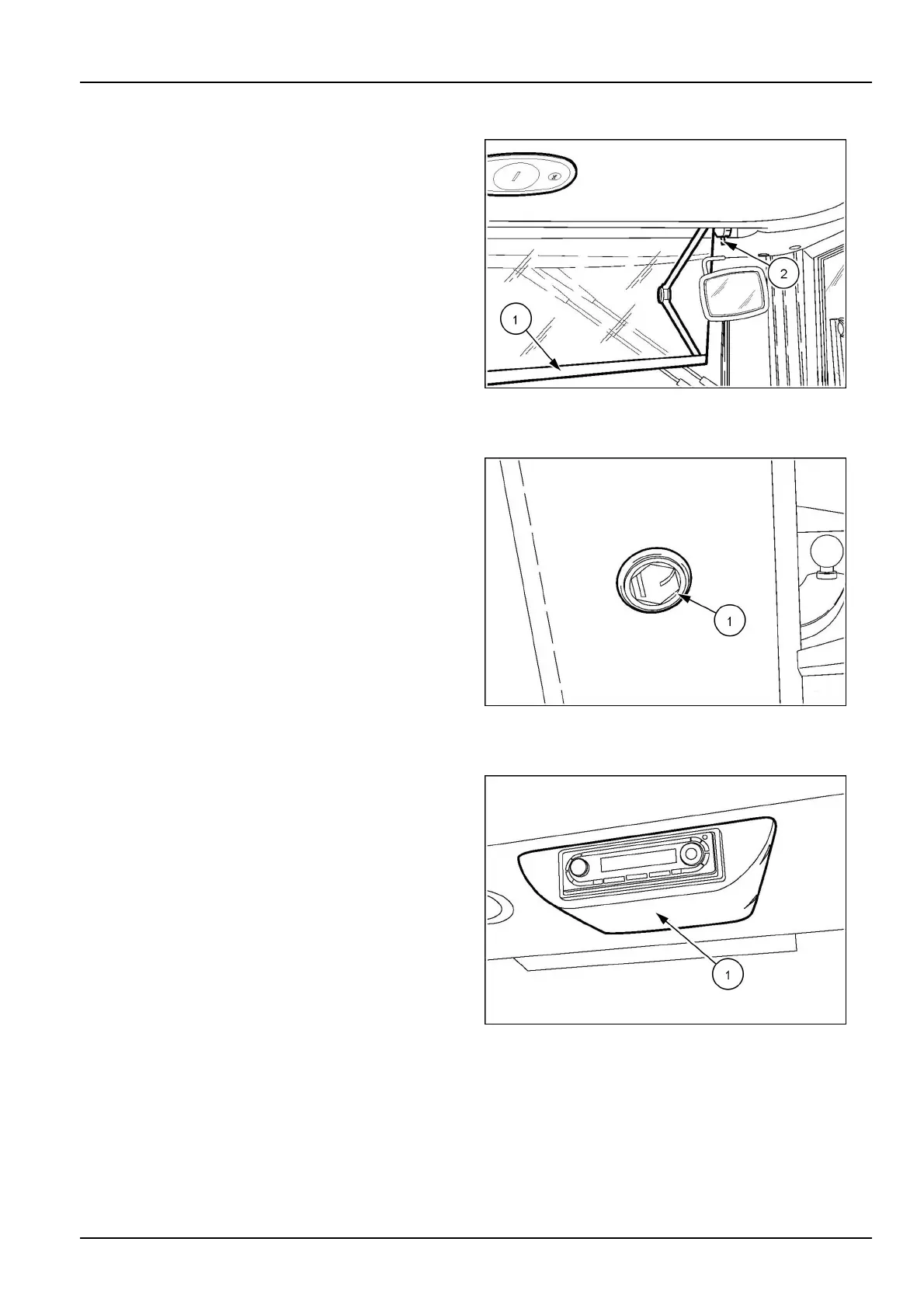

Sunvisor

Usethetab(1)topullthesunvisordownandplaceitin

thepositionrequired.

Pushupthelatch(2)torollupthesunvisor.

LEEN11T0066AA4

Auxiliary12Vsocket

Anauxiliary12Vpowersocket(1)islocatedonthecab’s

left-handpost.

LEEN11T0067AA5

Radiocompartment(Optional)

Onthecabroofthereisacompartment(1)wheretheradio

isinstalled;theradioisprovidedondemand.

LEEN11T0068AA6

3-43
