Case 695ST - Fuel Filter

7-MAINTENANCE
Fuellter

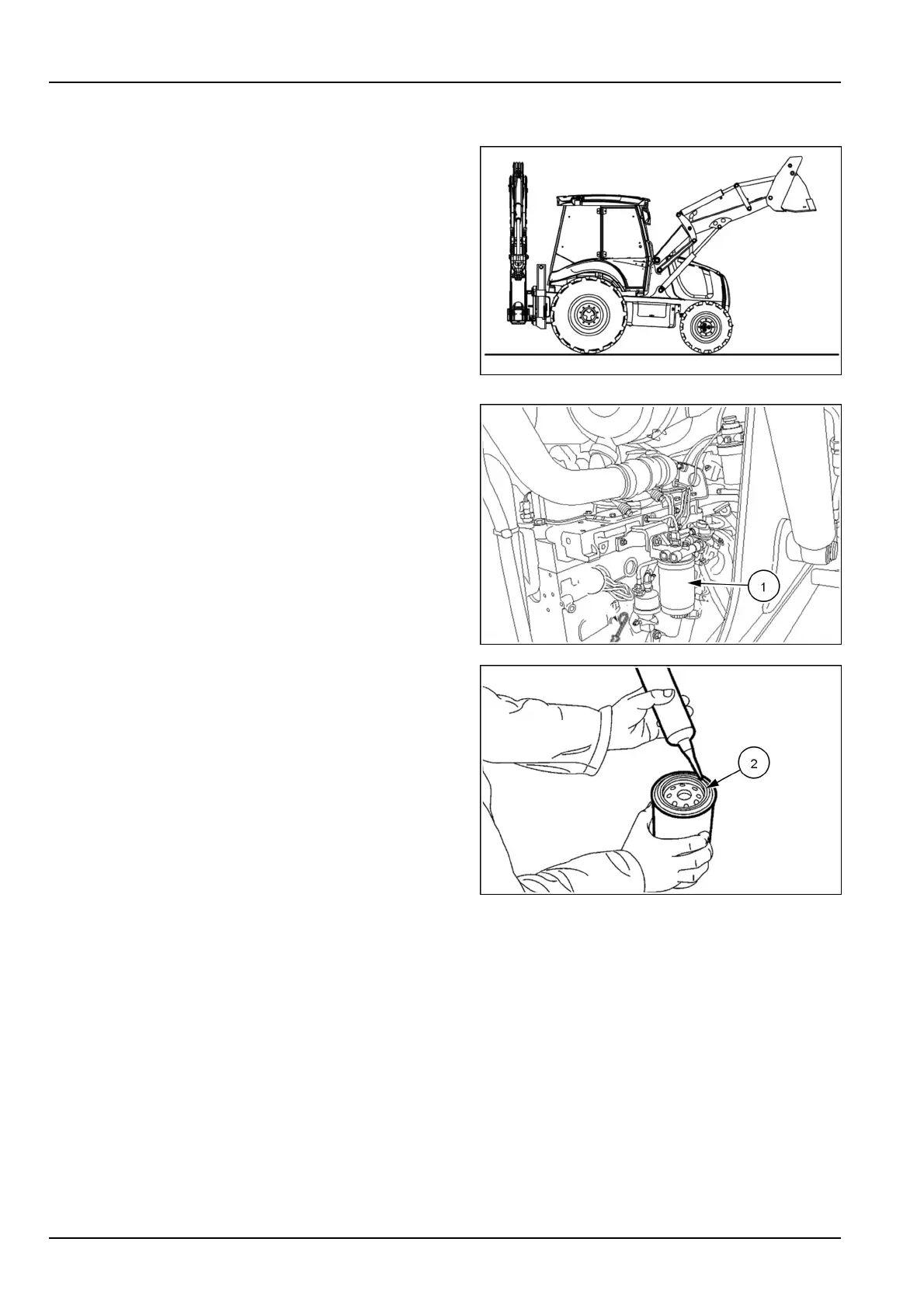

1.Movethemachinetoalevelandrmground.
2.Raisetheloaderattachmentandinstallthesafetysup-
portstrut.
3.Placethebackhoeattachmentintheroadtravelposi-
tion.
4.Placethedirection-of-travelleverandgearshiftleverin
neutralposition.
5.Immobilizethemachinewiththeparkingbrake.
6.Stoptheengineandremovethestarterswitchkey.
7.Openandraisetheengineguard.
LEEN11T0354AA1
8.Placeacontainerwithsuitablecapacityunderthelter.
9.Unscrewandremovethecartridge(1)bymeansof
wrench380000670.
10.Applyathinlayerofcleanoilontheseal(2)ofthenew
cartridge.
11.Assemblethenewcartridge(1).
12.Manuallyscrewinthecartridgeuntilthesealtouches
thelterhead.
13.Bymeansofwrench380000670,tightenby3/4ofa
turn.
NOTICE:Overtighteningcandamagethelterseal(2).
NOTE:Forthisreplacement,itisessentialthatanoriginal
sparecartridgeisused,asanon-approvedpartcouldse-
riouslydamagetheinjectionpump.
14.Bleedthefuelsystem.
RAIL15TLB0174AA2
LEEN11T0396AA3
