Case 695ST - Power Shuttle Transmission - Oil Change

7-MAINTENANCE
Powershuttletransmission-Oilchange
1.Movethemachinetoalevelandrmground.
2.Raisetheloaderattachmentandinstallthesafetysup-
portstrut.
3.Placethebackhoeattachmentintheroadtravelposi-
tion.
4.Placethedirection-of-travelleverandgearshiftleverin
neutralposition.
5.Immobilizethemachinewiththeparkingbrake.
6.Stoptheengineandremovethestarterswitchkey.
7.Openandraisetheengineguard.

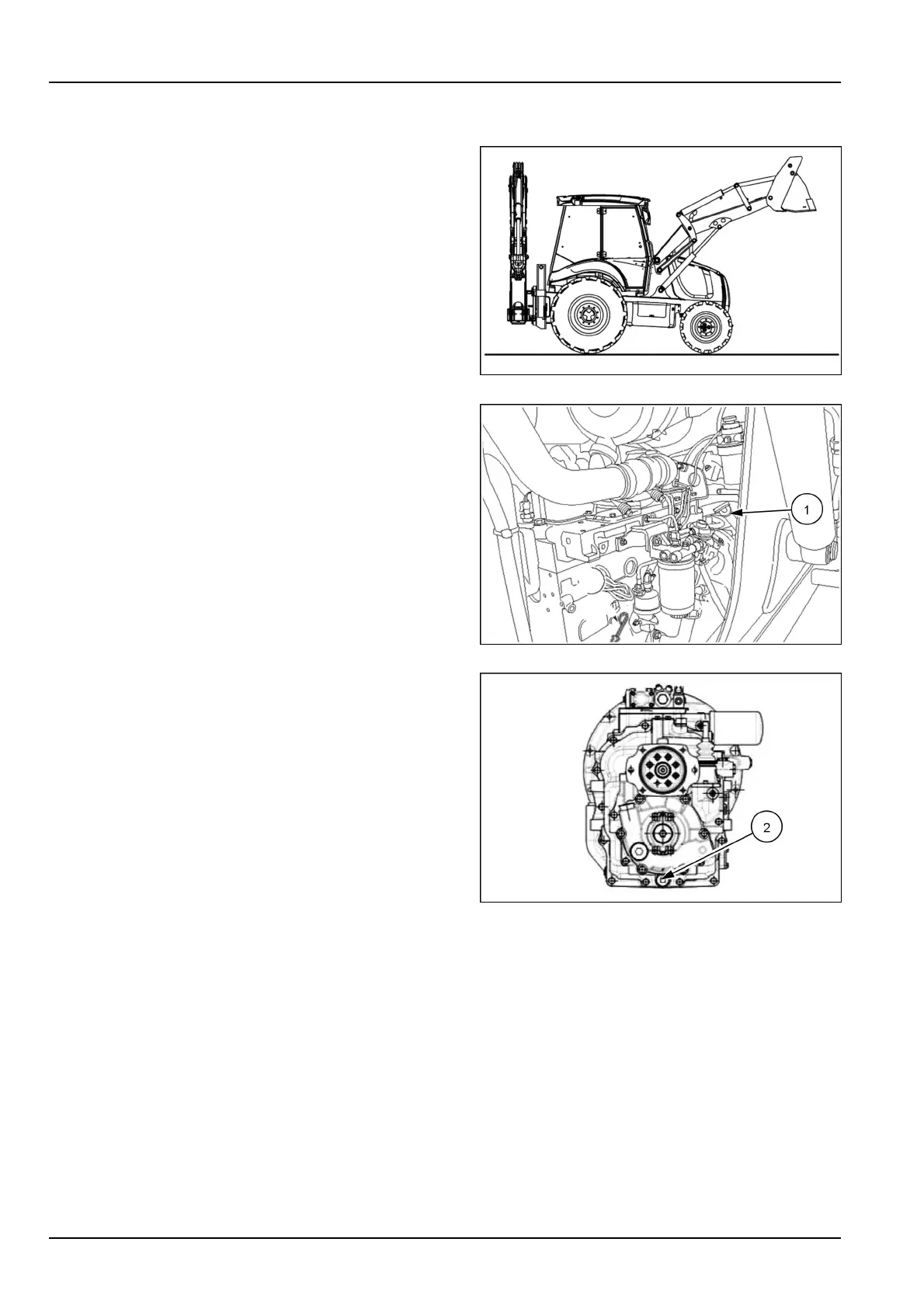

LEEN11T0354AA1
8.Removethedipstick(1).
NOTE:Changetheoilwhilethetransmissionisstillwarm;
theoilwillowmoreeasily.
9.Placeacontainerwithsuitablecapacityunderthedrain
plug(2).
10.Loosenandremovethedrainplug(2).
11.Letthetransmissionoildrain.
RAIL15TLB0174AA2
12.Installthedrainplug(2).
13.Fillwithnewoilofspeciedtypethroughthedipstick
hole.
14.Reinstallthedipstick(1).
15.Checktheoillevelbymeansofthedipstickand,if
necessary,addmoreoil.
16.Drivethemachineforafewminutesinrstandsecond
gear,thenstoptheengine.
17.Checktheoillevelagainbymeansofthedipstickand,
ifnecessary,addmoreoil.
18.Lowerandlocktheengineguard.
19.Removethesafetysupportstrutandlowertheloader
attachment.
LEEN11T0405AA3
Oilspecicationandcapacities
UseCASEAKCELAHY-TRAN®ULTRACTION(MAT
3525).
Capacities:
•
2WD:18.5L(4.89USgal)
•
4WD:20.8L(5.49USgal)
7-78
