Case 695ST - Multi-Function Control Lever

To Next Page

To Previous Page

3-CONTROLSANDINSTRUMENTS

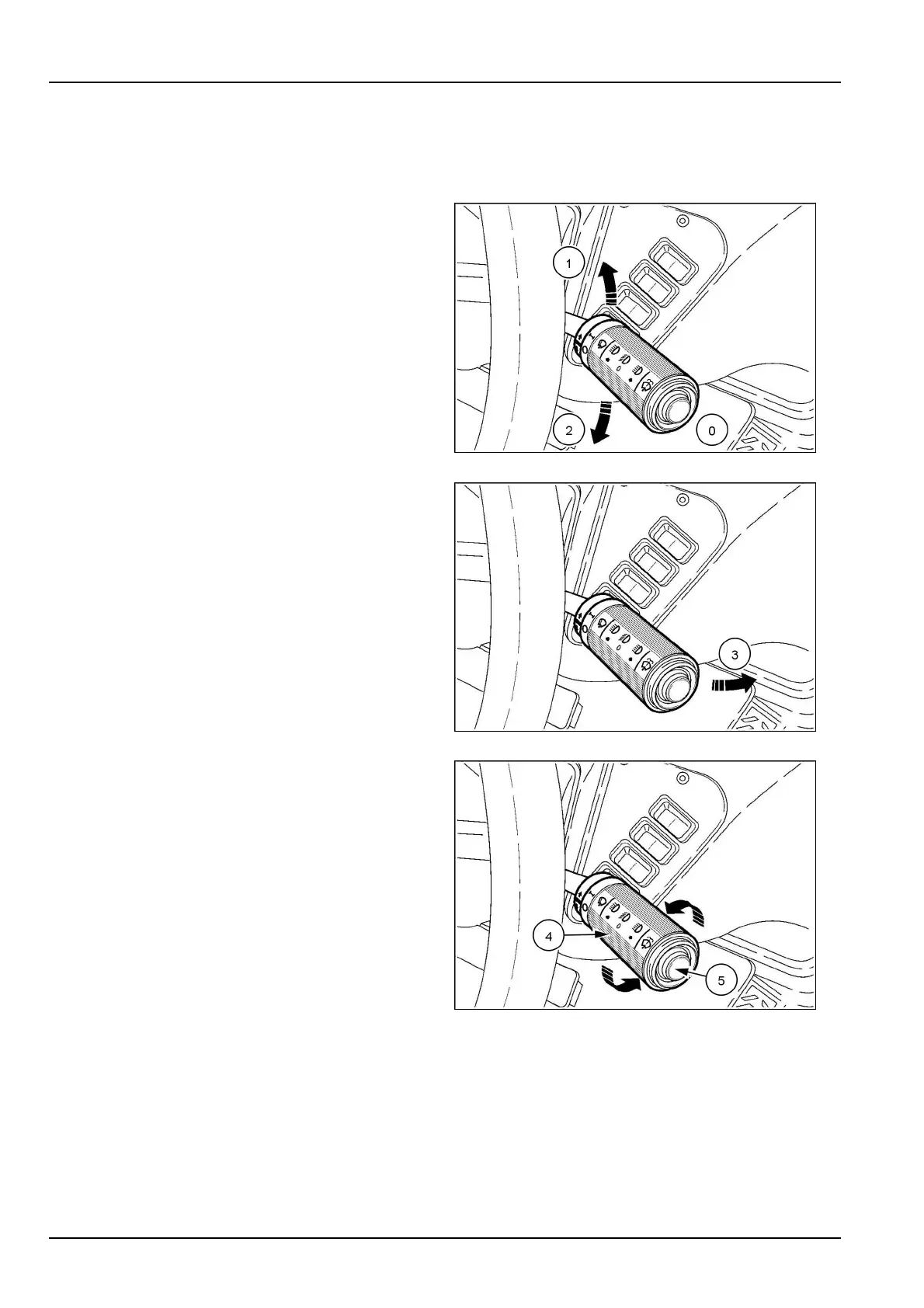

Multi-functioncontrollever

Leverfordirectionindicators,mainbeams,

frontwindshieldwiperandwasher(cab)

Locatedontherightofthesteeringwheel,thisleverhas

vepositions:

Position0:Neutral.

Position1:Theleft-handdirectionindicatorsandthedi-

rectionindicatorlamponthesideinstrumentclusterash

atthesamespeed.

Position2:Theright-handdirectionindicatorsandthedi-

rectionindicatorlamponthesideinstrumentclusterash

atthesamespeed.

LEEN11T0041AA1

Position3:(Lightswitchinlowbeamposition)Pushthe

leverdownwardstoturnonthemainbeamsandthecor-

respondingindicatorlamp.

LEEN11T0042AA2

Position4:Turntheknobofthehandlecounterclockwise

toactivatethefrontwindshieldwiper.

0=Stop

I=Normalspeed

Position5:(Momentaryactioncontrol)Pressandhold

downthebuttononthetipofthehandletooperatethe

windshieldwasher.

LEEN11T0043AA3

3-24
