7-MAINTENANCE

Windshieldwasheruidlevel

1.Movethemachinetoalevelandrmground.

2.Makesurethemachineisinsafecondition.

3.Stoptheengineandremovethestarterswitchkey.

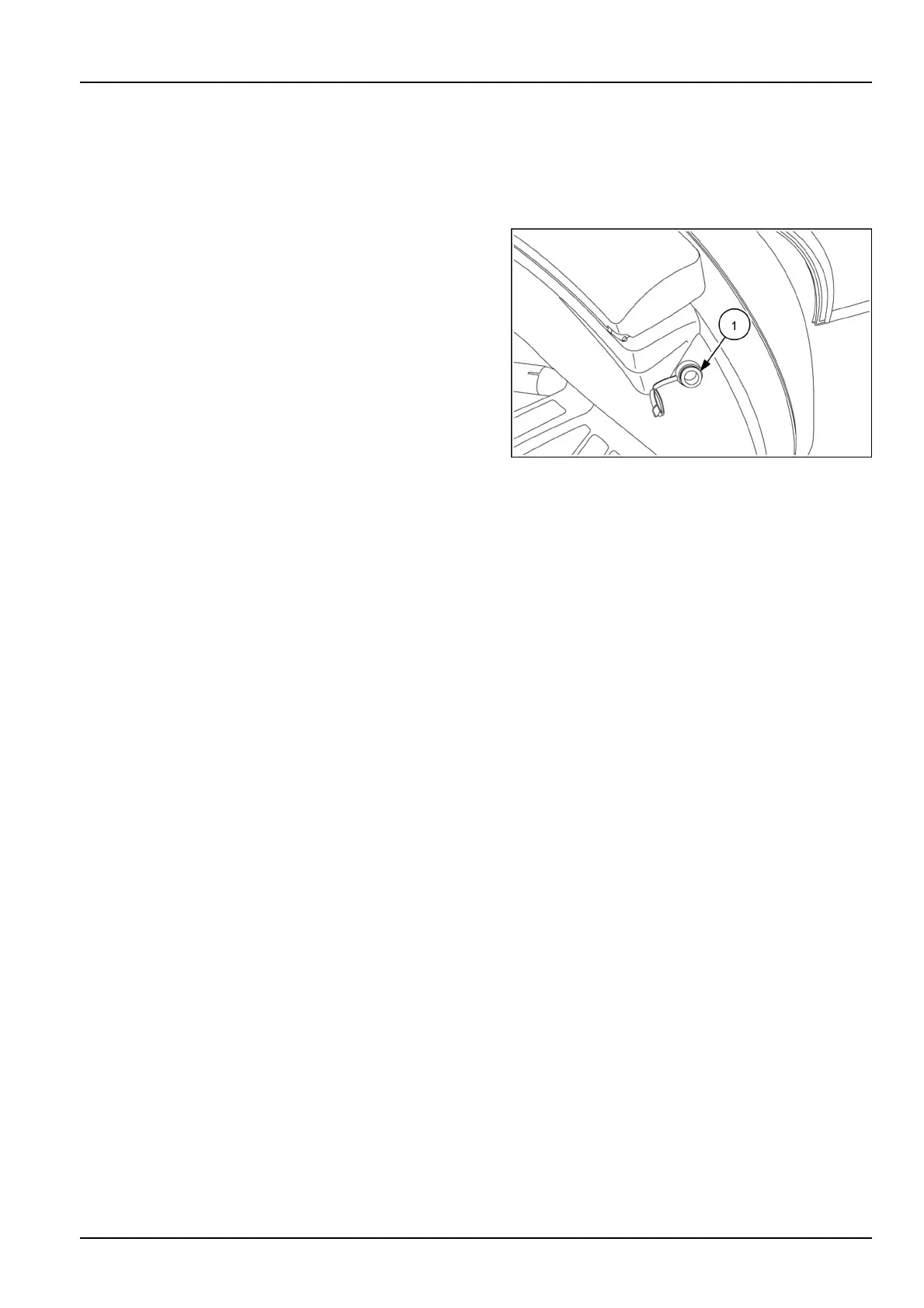

4.T ocheckthelevelofthewindshieldwiper/washeruid,

directlycheckthereservoirthroughtherelevantcap(1)

insidethecab.

5.Ifnecessary,topup.

NOTICE:Thewindshieldwipermotorisgravity-fed.Donot

removetherubbertubeasdamagecanbecausedifliquid

getsintothemotor.

LEEN11T0358AA1

Fluidspecication

UseTUTELAPROFESSIONALSC35orawindscreen

washerapprovedbyCASECONSTRUCTION.

7-27
