Case 695ST - Loader Bucket - Self-Levelling Adjustment

7-MAINTENANCE
Loaderbucket-self-levellingadjustment
Theself-levellinglinkagemountedontheright-hand
loaderarmandframeautomaticallycontrolstheangle
oftheloaderbucketduringtheraisingcycleofthelift
armstomaintainaconstantbucketlevel.Thereisno
self-levellingduringtheloweringcycle.

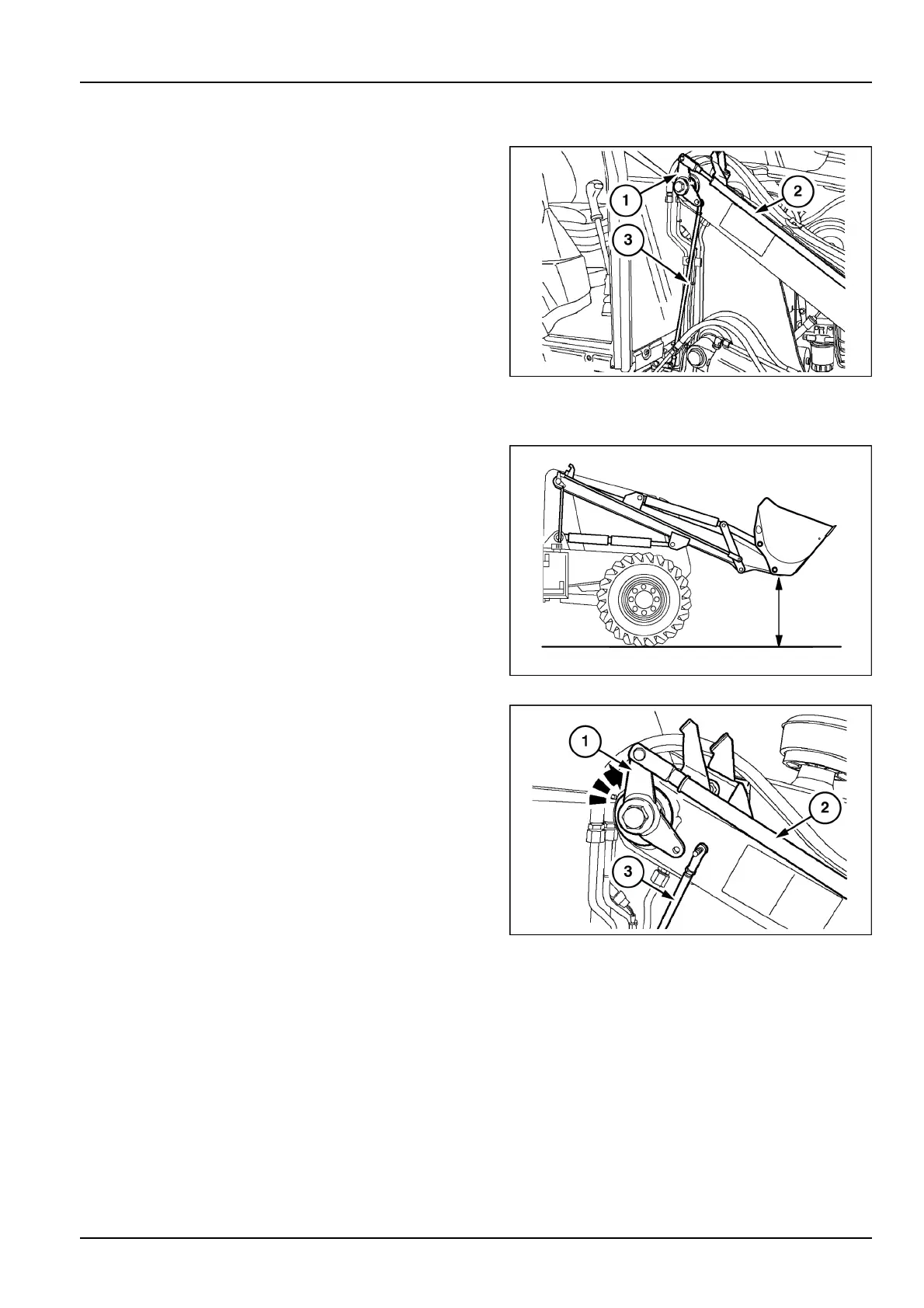

Self-levellingbeginswhenthetube(2)ontheloader
armcontactsthebellcrank(1)andliftstheverticallink-
agerod(3).Thetierodthenmovesthebucketspoolto
thedumppositiontolevelthebucket.
MOLI12LBB0500AB1
Automaticself-levellingcontroladjustment
1.Lowertheloaderattachmenttotheground.
2.Disconnecttheverticaltierod(3)atthelowerbell
crank.
3.Raisetheloaderattachmentsothatthelowerbucket
pinis800mm(31.5in)abovetheground,andfullyturn
overthebuckettotherear.
MOLI12LBB0501AA2
4.Rotatethebellcrank(1)tillittouchesthetube(2)on
theloaderarm.Makesurethelowerbellcrankarmis
directingupwards.
5.Adjustthelengthoftheverticalrod(3)sothatwhen
reconnected,theendoftheloaderarmtuberemainsin
contactwiththebellcrank.
6.Securelytightenthelocknutsonaverticaltierod.
MOLI12LBB0502AB3
7-135
