Case 695ST - INSTRUMENT CLUSTER

3-CONTROLSANDINSTRUMENTS
INSTRUMENTCLUSTER

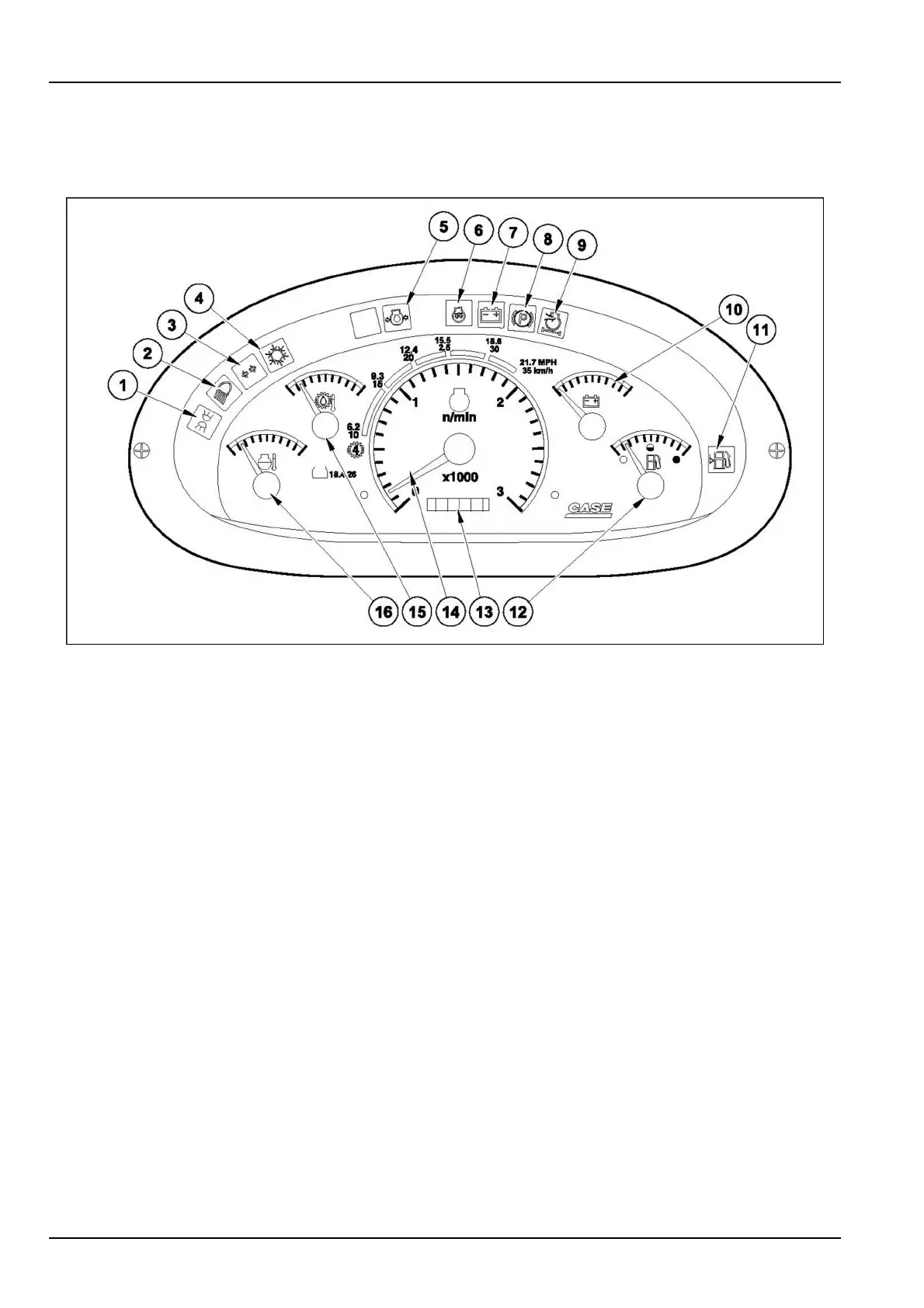

Sideinstrument(580T)
LEIL13TLB0001FA1
1.SIDELIGHTANDLOWBEAMINDICATORLAMP
Thisindicatorlampturnsonwhenthesidelightsor
thelowbeamsareon.
2.MAINBEAMSINDICATORLAMP
Thisindicatorlampturnsonwhenthemainbeams
areon.
3.DIRECTIONINDICATORLAMP
Thislampturnsonwhenthedirectionindicatorsare
working.
4.AIRCONDITIONERINDICATORLAMP(Optional)
Thislampturnsonwhentheairconditioneriswork-
ing.
5.ENGINEOILPRESSUREWARNINGLAMP
Thiswarninglampturnsonandtheaudiblewarning
devicesoundswhentheengineoilpressureistoo
low.
6.“GRIDHEATER”LAMP(Optional)
Ifthemachineisequippedwitha“gridheater”,wait
fortheindicatorlamptoturnoffbeforestartingthe
engine.
7.BATTERYCHARGEWARNINGLAMP
Thiswarninglampturnsonwhenthealternator/fan
beltisbrokenorwhenthealternatorisnotcharging
thebattery.
8.PARKINGBRAKEINDICATORLAMP
Thisindicatorlampturnsonwhentheparkingbrake
leverisintheraisedposition(wheelsbraked).
9.AIRFILTERRESTRICTIONLAMP
Thiswarninglampturnsonwhentheairlterelement
needstobecleanedorreplaced.
10.BATTERYCHARGEINDICATOR
Thisindicatorshowsthestateofchargeofthebat-
tery.
Atnormalchargetheneedleshouldbeinthegrey
area.
Iftheneedleisintheleftredarea,thisshowsthatthe
batterychargeisinsufcientorthatthealternatoris
notchargingthebattery.
Iftheneedleisintherightredarea,thisindicates
excessivebatterychargewhichmaycausedamage
tothebattery.
11.LOWFUELLEVELWARNINGLAMP
Thiswarninglampturnsonwhenthefuellevelislow.
Youhaveapproximatelyanhourtollthefueltank.
NOTE:whenthestarterswitchkeyisintheONpo-
sition,lamps(5),(7),(8),and(9)turnonforthree
seconds.Afterthistime,onlylamps(7)and(8)re-
mainalight.
12.FUELLEVELGAUGE
Thisgaugeshowsthequantityoffuelinthefueltank.
13.HOURMETER
Thehourmetershowsthenumberofhoursand
tenthsofhourstheenginehasbeenfunctioning.It
alsomakesitpossibletodeterminetheintervalsof
theservicingoperations.
3-34
