Case 695ST - Backhoe Bucket - Removal

6-WORKINGOPERATIONS
Backhoebucket-Removal
Mechanicalcoupler
NOTE:Onlyapplicabletomodelswithanoverlapping
cylinderboom.
1.Movethemachinetolevelandrmground.
2.Lowerthestabilizersuntiltheyarerestingonthe
ground.
3.Placethebucketonthegroundasshown.
4.Stoptheengineandremovethestarterswitchkey.
CAUTION
Flyingobjects!
Weareyeprotection.Donotstrikesteelparts
withasteelhammer.Partsmaybreak.
Failuretocomplycouldresultinminoror
moderateinjury.
C0024A

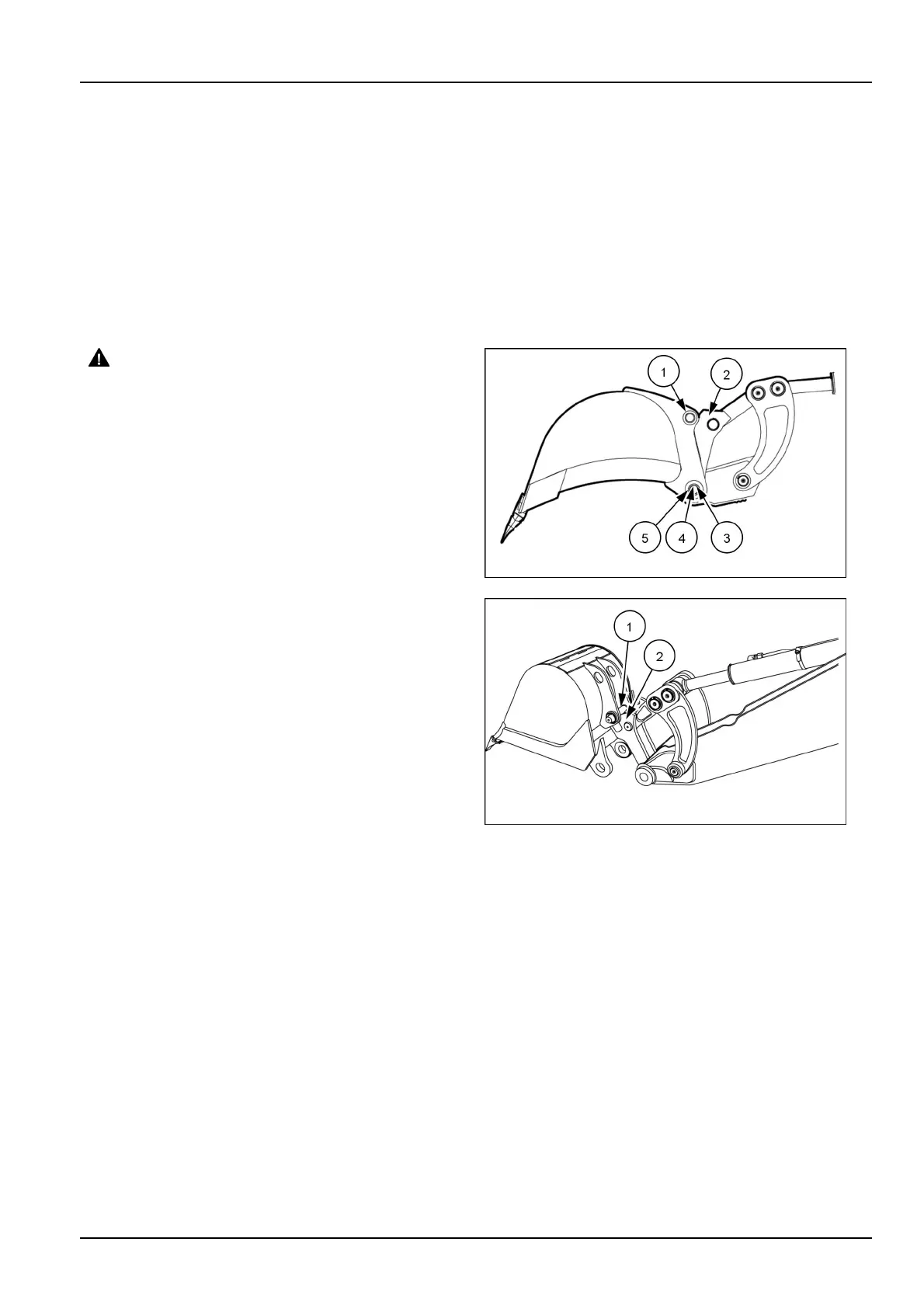

5.Removethesnapring(3)andthewasher(4).
6.Slideoutthepin(5).
7.Starttheengine.
8.Operatethebackhoeattachmentcontrolssothatthe
mechanicalcouplerhook(2)releasesfromthebucket
pin(1).
9.Stoptheengineandremovethestarterswitchkey.
LEEN11T0192AA1
RCPH10TLB397AAF2
6-33
