Case 695ST - Backhoe Attachment (Side Shift Version)

6-WORKINGOPERATIONS
Backhoeattachment(Sideshiftversion)
Todigalongsideabuildingorfence,etc.,itispossibletoshiftthebackhoeattachmentsidewaystotheright-hand
sideortheleft-handside.
Mechanicalhandling
1.Placethebackhoeattachmenttotheleftifyouwant
toshifttheattachmenttotheright,orplaceittothe
rightifyouwanttoshiftittotheleft,thenplacethe
attachmentontheground.

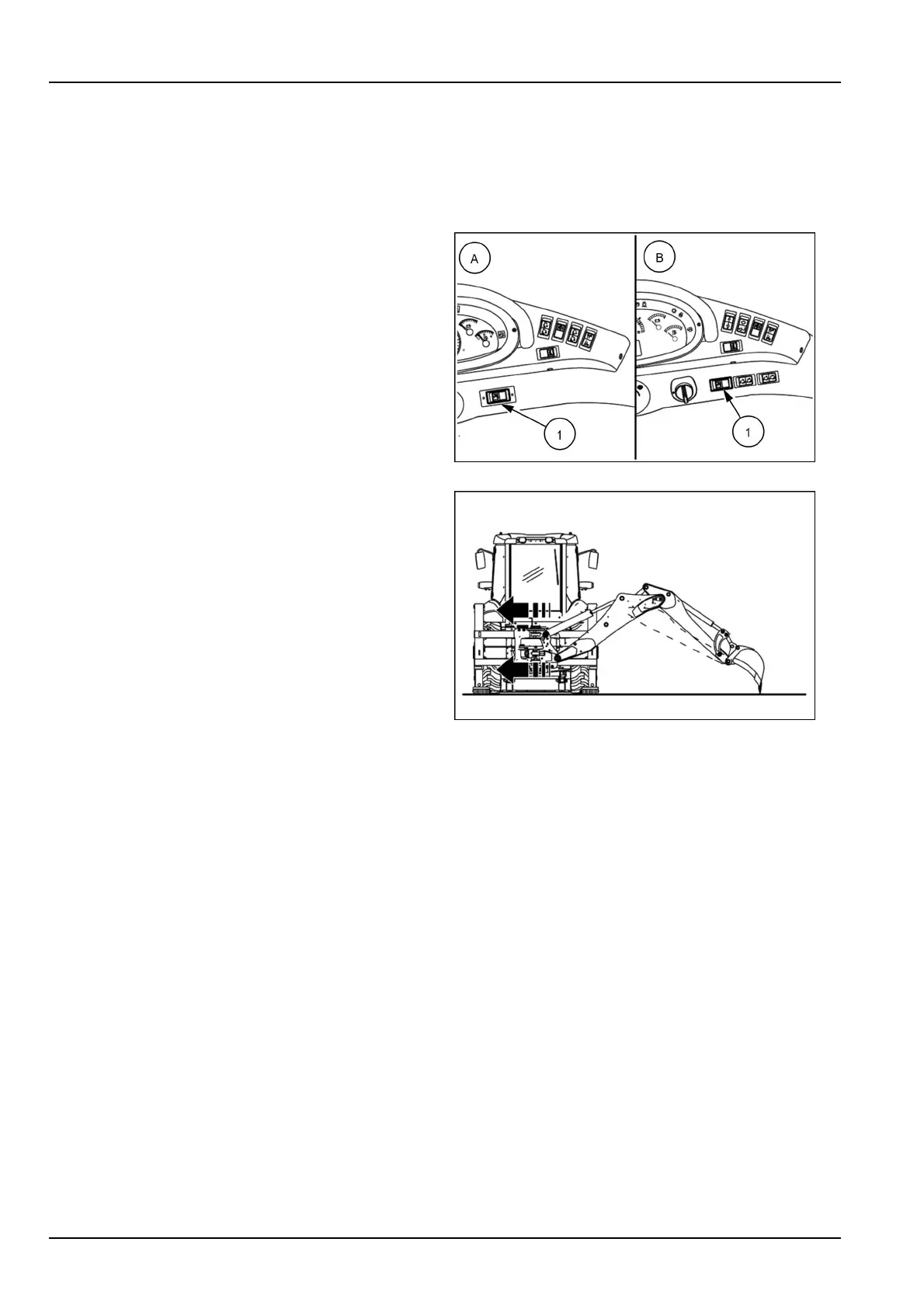

2.Pressthebackhoeattachmentsideshiftunlocking
switch(1).Theswitchlampturnson(ONposition).
A.Versionwithmechanicalengines
B.Versionwithelectronicengines
LEEN11T0175AA1
3.Operatethebackhoeattachmentcontrolsalternately
soastoslidethesideshiftcarriagesideways.
4.Oncetheattachmentisinthesidepositionrequired,
swingitroundintoalignmentwiththemachine.
5.Workontheoppositesideofthesideshiftcarriageas
muchaspossible.Otherwise,reducetheloadinthe
bucketforbetterstability.
6.Pressthebackhoeattachmentsideshiftlockingswitch
(1).Theswitchlampturnsoff(OFFposition).
NOTICE:Exceptwhenthesideshiftcarriageisbeing
moved,theswitch(1)mustalwaysbeintheOFFposi-
tion.Neverusethebackhoeattachmentwiththeside
shiftcarriageunlocked.
LEEN11T0176AA2
6-26
