Case 695ST - Telescopic Dipper (if Equipped)

To Next Page

To Previous Page

7-MAINTENANCE

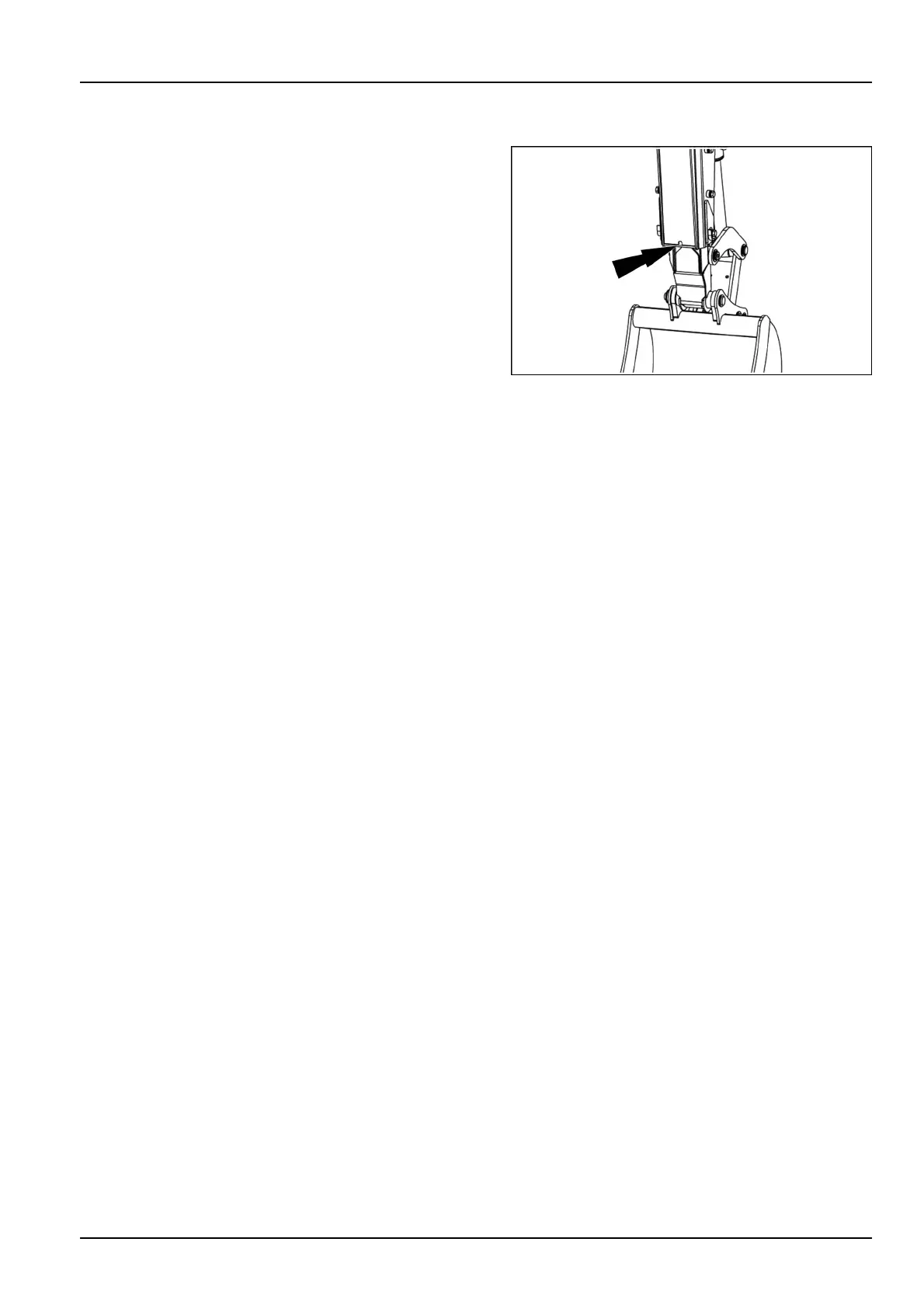

Telescopicdipper(ifequipped)-draining

1.Ensurethedrainportattheendofthedipperiskept

cleartopreventaccumulationofwaterinsidetheunit.

2.Checktheholeforhydraulicoiltraces,whichwould

indicatethepresenceofapressurelossinthecylinder.

LEEN12T0501AA1

7-133
