Case 695ST - Stabilizers (Side Shift) - Clearance Check and Adjustment

7-MAINTENANCE
Stabilizers(sideshift)-Clearancecheckandadjustment

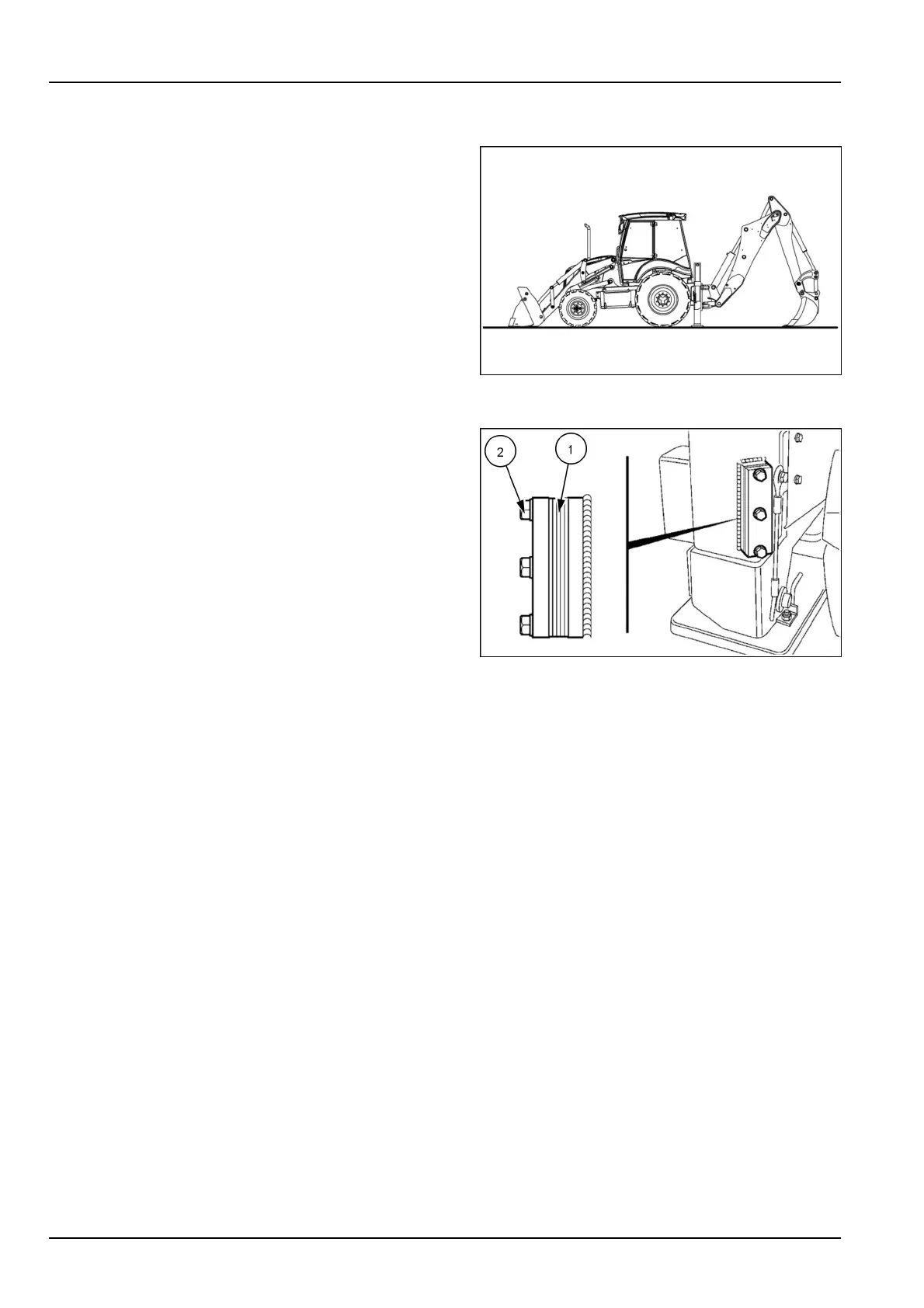

1.Movethemachinetoalevelandrmground.
2.Lowertheloaderattachmenttotheground.
3.Placethedirection-of-travelleverandgearshiftleverin
neutralposition.
4.Immobilizethemachinewiththeparkingbrake.
5.Raisethestabilizers.
6.Liftthemachineononesiderstandthenontheother
sidebymeansofthebackhoeattachment.
7.Lowerthestabilizers,onebyone,by550mm(21.6in).
8.Checkthattheclearancebetweenthestabilizerandthe
frameiswithin2.50-3.50mm(0.10-0.14in).
LEEN12T0499AA_11
9.Ifclearanceexceeds3.5mm(0.14in),itisnecessary
toremovethescrews(2)andremoveoneshim(1).
10.Retightenthescrews(2)toatighteningtorqueof
140N·m(103.25lbft).
LEEN12T0500AA2
7-132
