7-MAINTENANCE

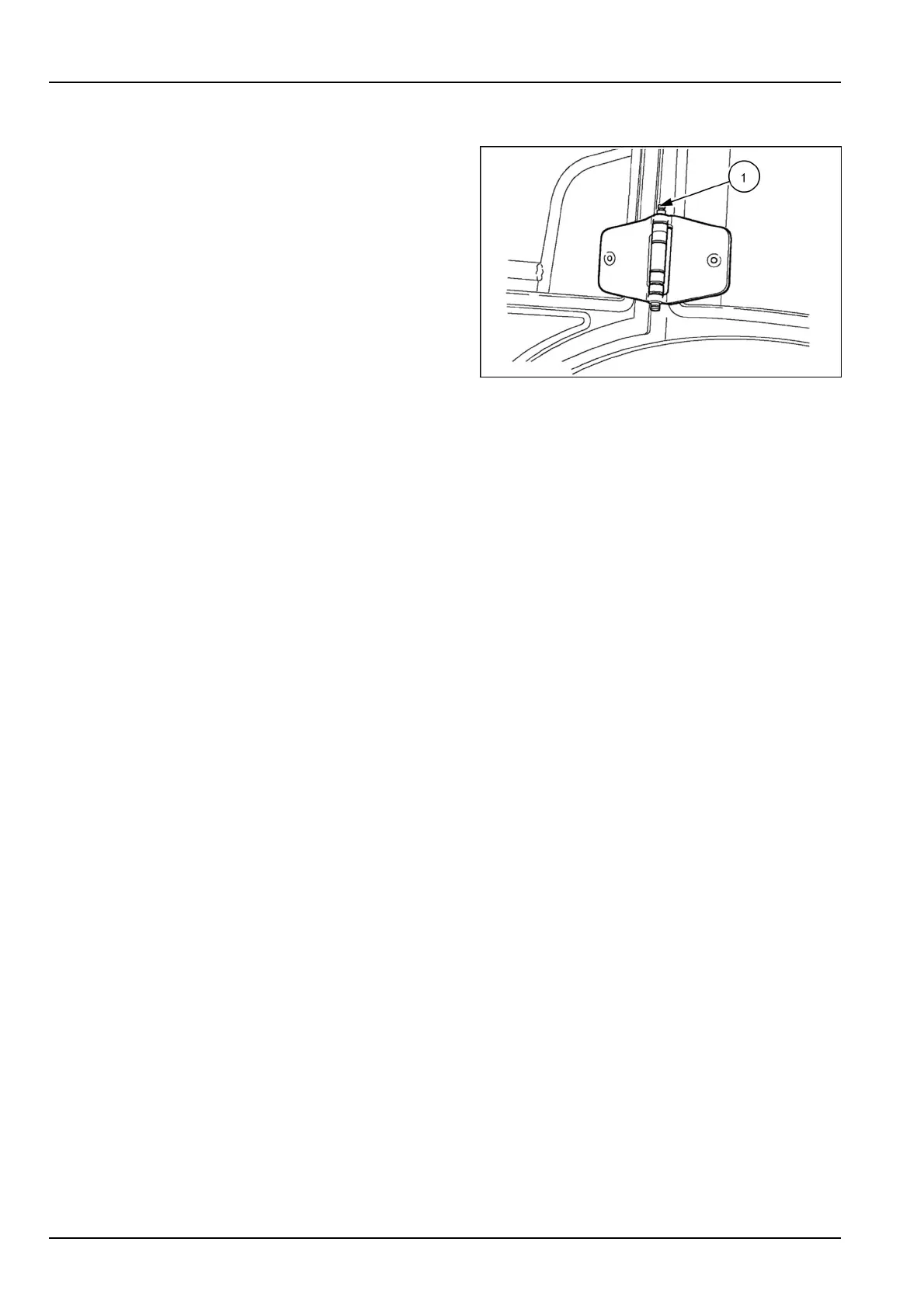

Doorhinges

Numberofgreasettings(1):4

LEEN11T0373AA1

Greasespecications

UseCASEAKCELAMOLYGREASE(MAT3550)or

agreasewhichmeetsthefollowingstandard:

•

NLGI2

NOTE:TUTELAMULTI-PURPOSEEPGREASE251H,GR-9

canalsobeused.

7-36
