Case 695ST - Working Attachments

To Next Page

To Previous Page

7-MAINTENANCE

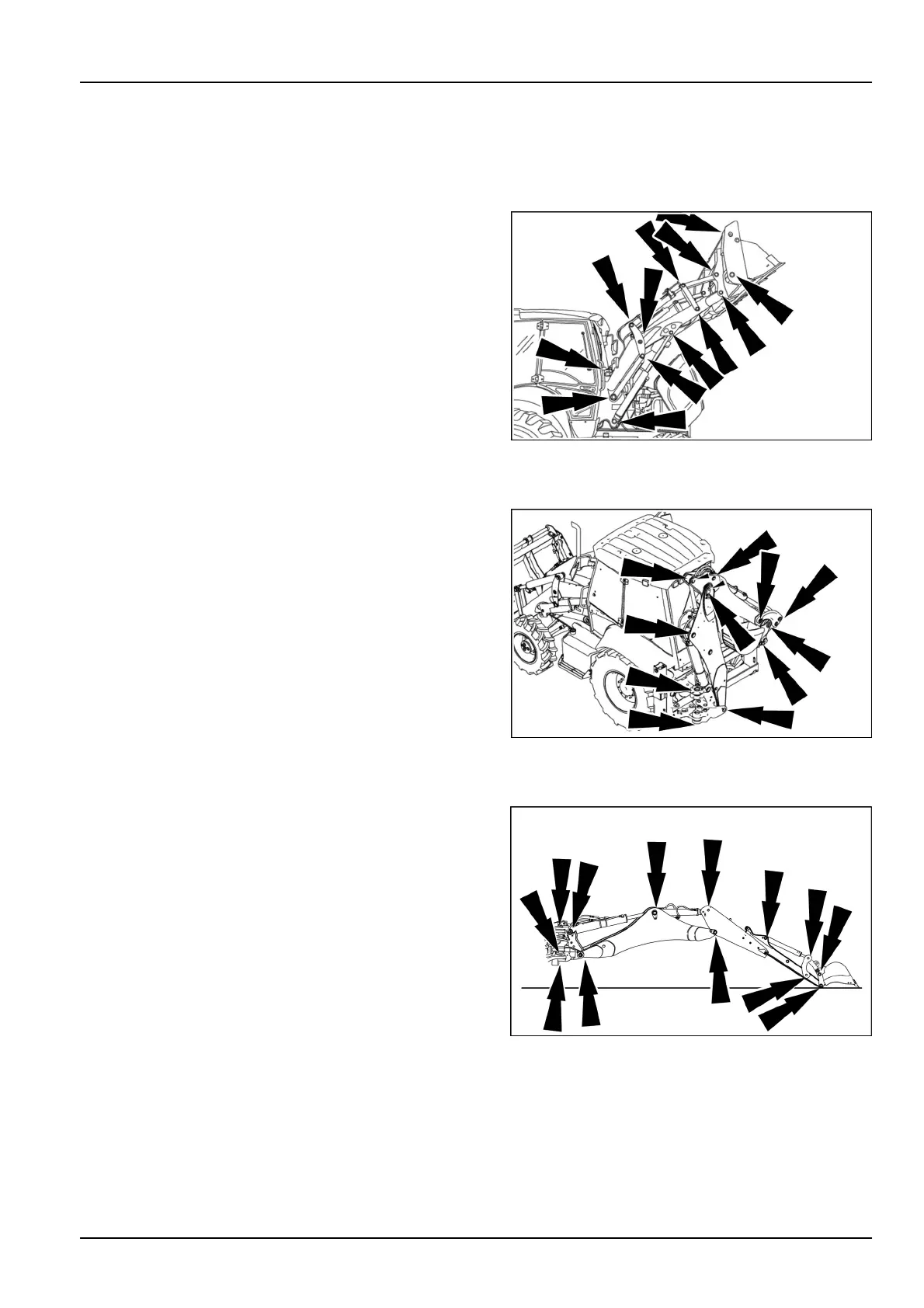

Workingattachments

NOTE:Thenumberofgreasepointsmayvarydependingonthetypeofaccessoryinstalled.

Loaderattachment

Numberofgreasettings:26

LEEN11T0365AA1

Backhoeattachment(Side-shift)

Numberofgreasettings:24

NOTE:580STwithoptionalbackhoeconguration,590ST,

and695ST.

LEEN11T0366AA2

Backhoeattachment(Side-shift)

Numberofgreasettings:24

NOTE:580T/580STwithstandardbackhoeconguration.

RAIL15TLB0535AA3

7-29
