Engineoillter-Replacement
1.Movethemachinetoalevelandrmground.
2.Raisetheloaderattachmentandinstallthesafetysup-
portstrut.
3.Placethebackhoeattachmentintheroadtravelposi-
tion.
4.Placethedirection-of-travelleverandgearshiftleverin
neutralposition.
5.Immobilizethemachinewiththeparkingbrake.
6.Stoptheengineandremovethestarterswitchkey.
7.Openandraisetheengineguard.
8.Placeacontainerwithsuitablecapacityunderthelter.

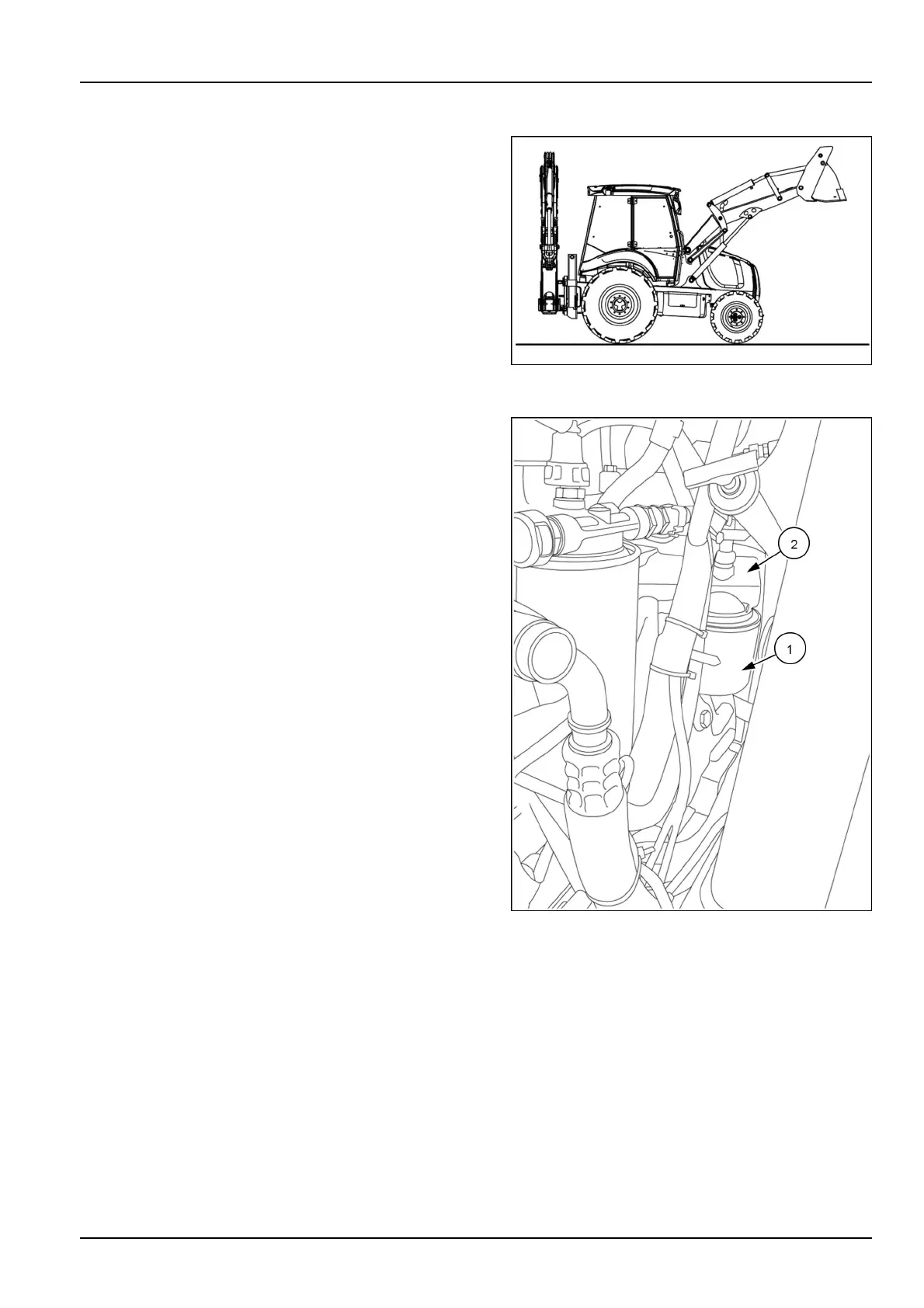

LEEN11T0354AA4
9.Unscrewandremovethecartridge(1)withthewrench
380000670.
NOTICE:Theoilltercontainsanoilquantityofapproxi-
mately0.5L(0.15USgal)
10.Applyathinlayerofcleanoilonthesealofthenew
cartridge.
NOTE:Donotllthenewlterwithoilbeforeinstallingit.
11.Assemblethenewcartridge(1).
12.Manuallyscrewinthecartridgeuntilthesealtouches
thesupport(2).
13.Bymeansofwrench380000670,tightenby3/4ofa
turn.
NOTICE:Overtighteningcandamagethelterseal.
14.Letthemotorrunforseveralminutesandthencheck
thelevelagainbymeansofthedipstick.
15.Ifnecessary,topuptocompensatethequantityofoil
usedforllingthecartridge.
16.Lowerandlocktheengineguard.
17.Removethesafetysupportstrutandlowertheloader
attachment.
LEEN11T0414BA_15
Oilspecicationandcapacity
UseCASEAKCELAUNITEK10W-40EngineoilSAE
10W40,MAT3521engineoiloranoilmeetingthefol-
lowingspecication:
•
APICH-4
•
ACEAE5
NOTE:Ahigherqualityoilisaccepted.
Engineoilcapacity(withlter):11.70L(3.09USgal)
