Engineguardhandle
NOTICE:Itisessentialtoinstalltheloaderattachment
supportstrutbeforeanyservicingworkisdoneonthe
engine.

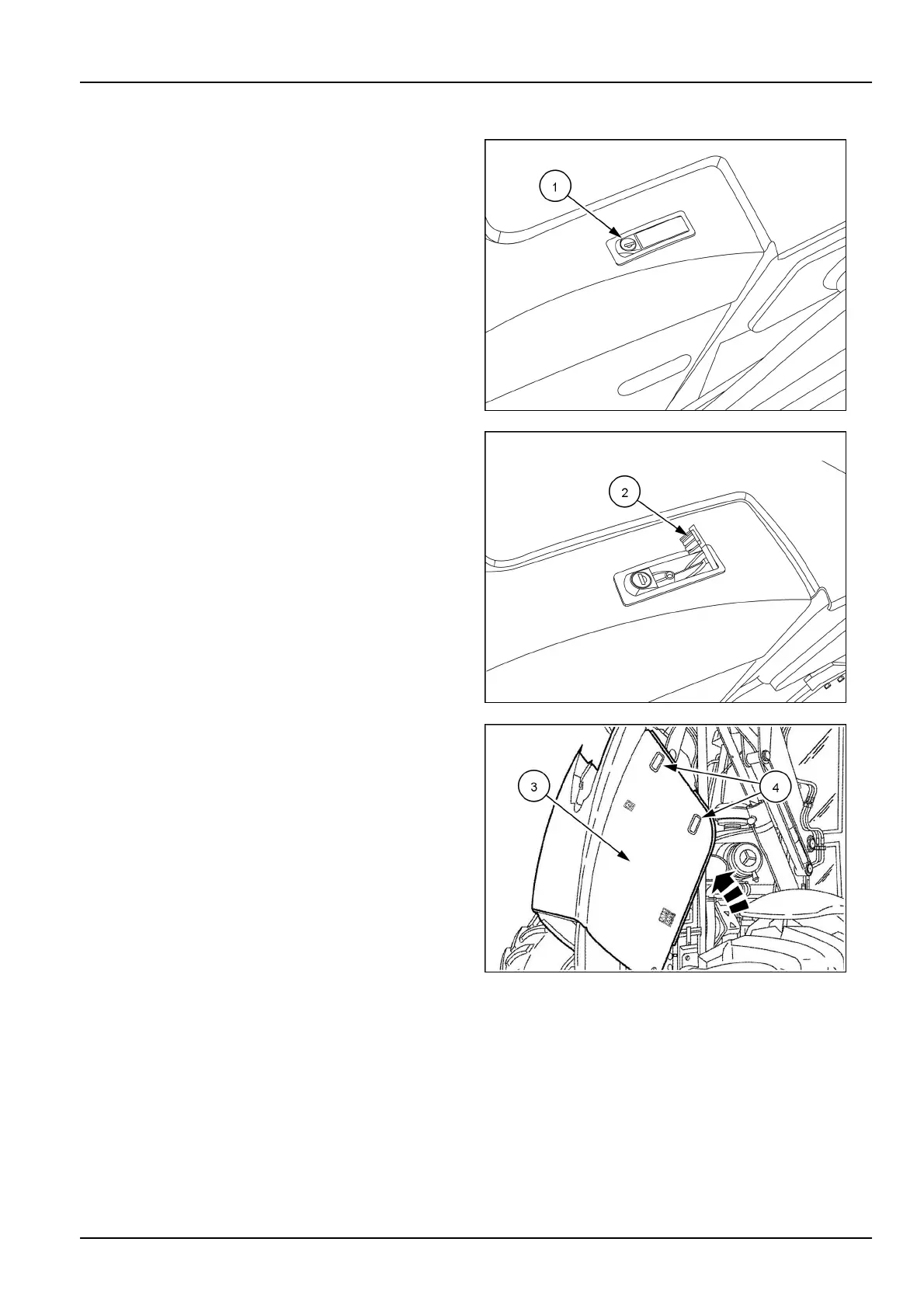

Opentheenginehood:
1.Insertthekey(1)andturncounter-clockwise.
2.Pushthekeyslotontheenginelatchtoreleasethe
lock(2).
3.Usetheenginehoodlifthandles(4),lift,androtatethe
hood(3)intothefullyopenposition.
NOTICE:Beforeundertakinganyroadtravel,makesure
theengineguardisproperlylocked.
Closeandlocktheenginehood(guresinreverseorder):
1.Pushthehooddownintotheclosedposition.
2.Pushtheenginelatch(2)downintothelockposition.
3.Insertthekey(1)andturnclockwise.
