3-CONTROLSANDINSTRUMENTS

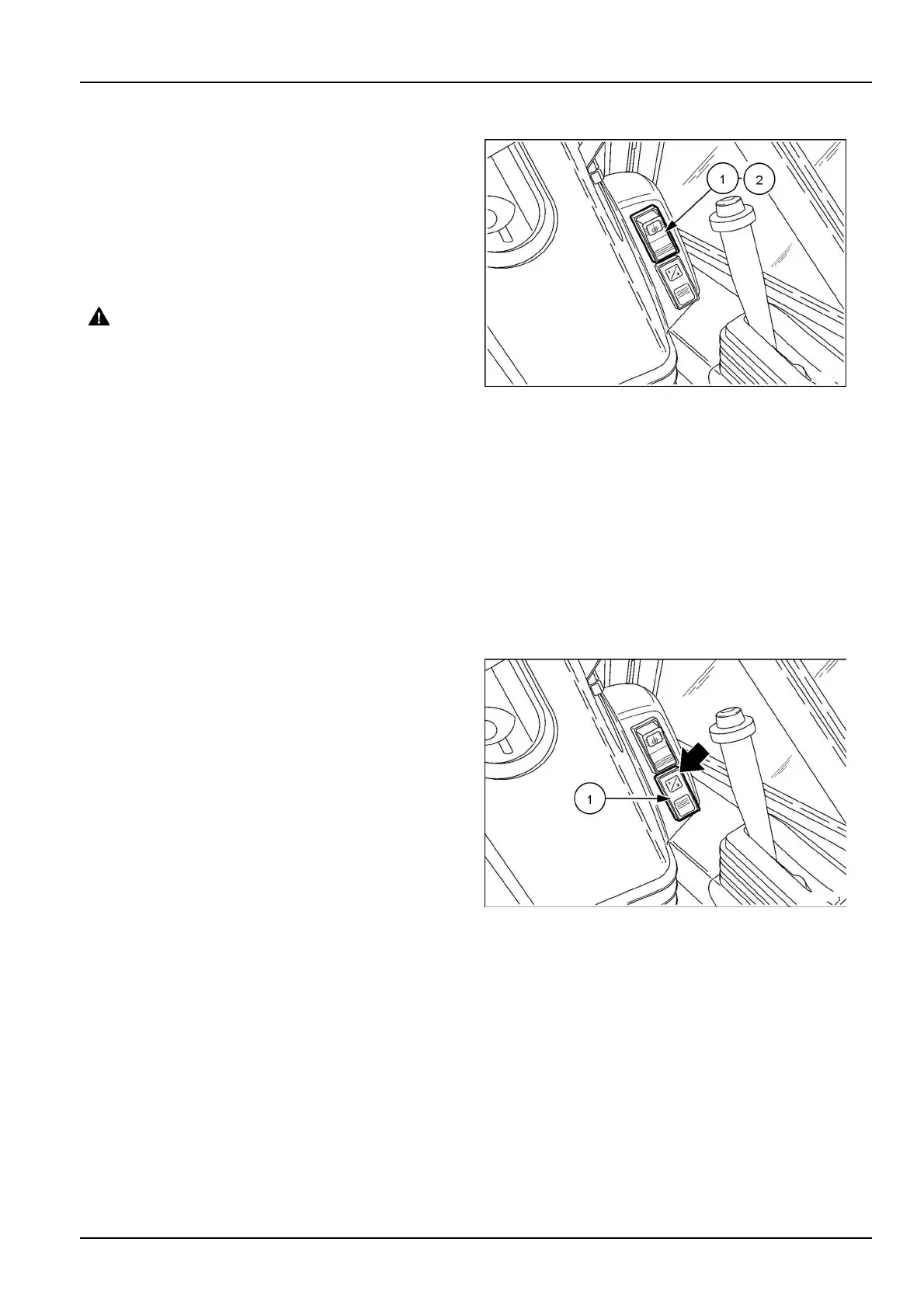

Controlenableswitch
Thiscontrolislocatedontheright-handcontrollever.
Thisswitchhasthreepositions:
•
PositionOFF:(Lampoff)Allcontrolswilldeactivate;
•
Position1:Bypressingtheupperside(lampoff),the
stabilizerswillactivate;
•
Position2:Bypressingtheupperside(lampon)again,
allcontrolswillactivate.
WARNING
Unexpectedmachinemovement!
Afterusingtheattachmentandbeforeleav-
ingthemachine,deactivateallthecontrolsby
movingthecontrolenableswitchtotheOFF
position.
Failuretocomplycouldresultindeathorse-
riousinjury.
W1327A
NOTICE:Afterusingtheattachmentorbeforeleavingthe
machine,alwaystilttheswitchtoOFFbypressingthe
lowersideoftheswitch(lampoff).Neverforgetthisbasic
safetyrequirement.
NOTE:Whenstartingtheengine,thepositionOFFfor
disabledcontrolsisautomaticallyselected.
LEEN11T0318AA2
Controlpatternchangeswitch(Boomordipper)
Locatedontheright-handhydrauliccontrollever,this
switchisttedwithalockingdevice.
TheswitchisusedtochangefromstandardpatterntoISO
version,orviceversa.
Tounlocktheswitch,pushthelockingdeviceupwardsand
atthesametimepressthetopoftheswitch(1).Inthis
position,theswitchturnsonandthecontrolsareinISO
pattern.
Theboomanddippercontrolsonthehydrauliccontrol
leversarenowinverted.
Pressthebottomoftheswitch(1)tolockandreturnto
standardpatternoperation.
LEEN11T0319AA3
3-71
