5-TRANSPORTOPERATIONS

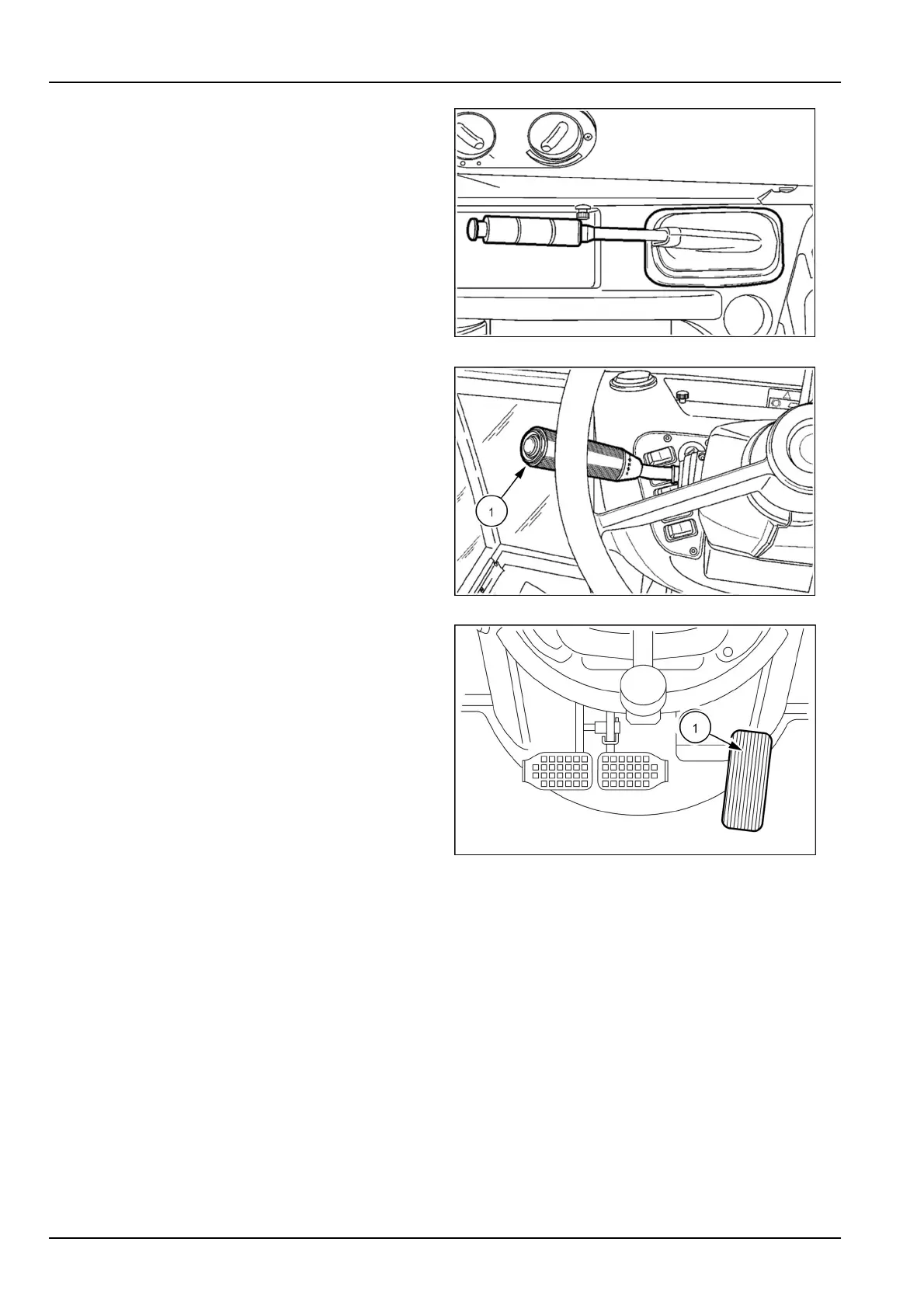

30.Disengagetheparkingbrake.

LEEN11T0137AA20

31.Positionthedirection-of-travelcontrollever(1)for-

wards.

LEEN11T0138AA21

32.Releasethebrakepedalsandadjustthetravelspeed

bymeansoftheacceleratorpedal(1).

33.Shiftgearsasnecessary.

NOTE:Monitorallgaugesandindicator/warninglamps

frequently.

MOLI12LBB0240AB22

5-10
