Case 695ST - Page 221

6-WORKINGOPERATIONS
9.Ifapplicable,allmachineswithside-shiftcapabilities
musthydraulicallylockthemovementofthesideshift
carriage.See6-26.
10.Connectahandlinetotheloadbeforeyoustart.
Makesurethattheworkerholdingthehandlineis
awayfromtheload.
11.Setacorrectenginerpmaccordingtothehydraulic
effortrequired.

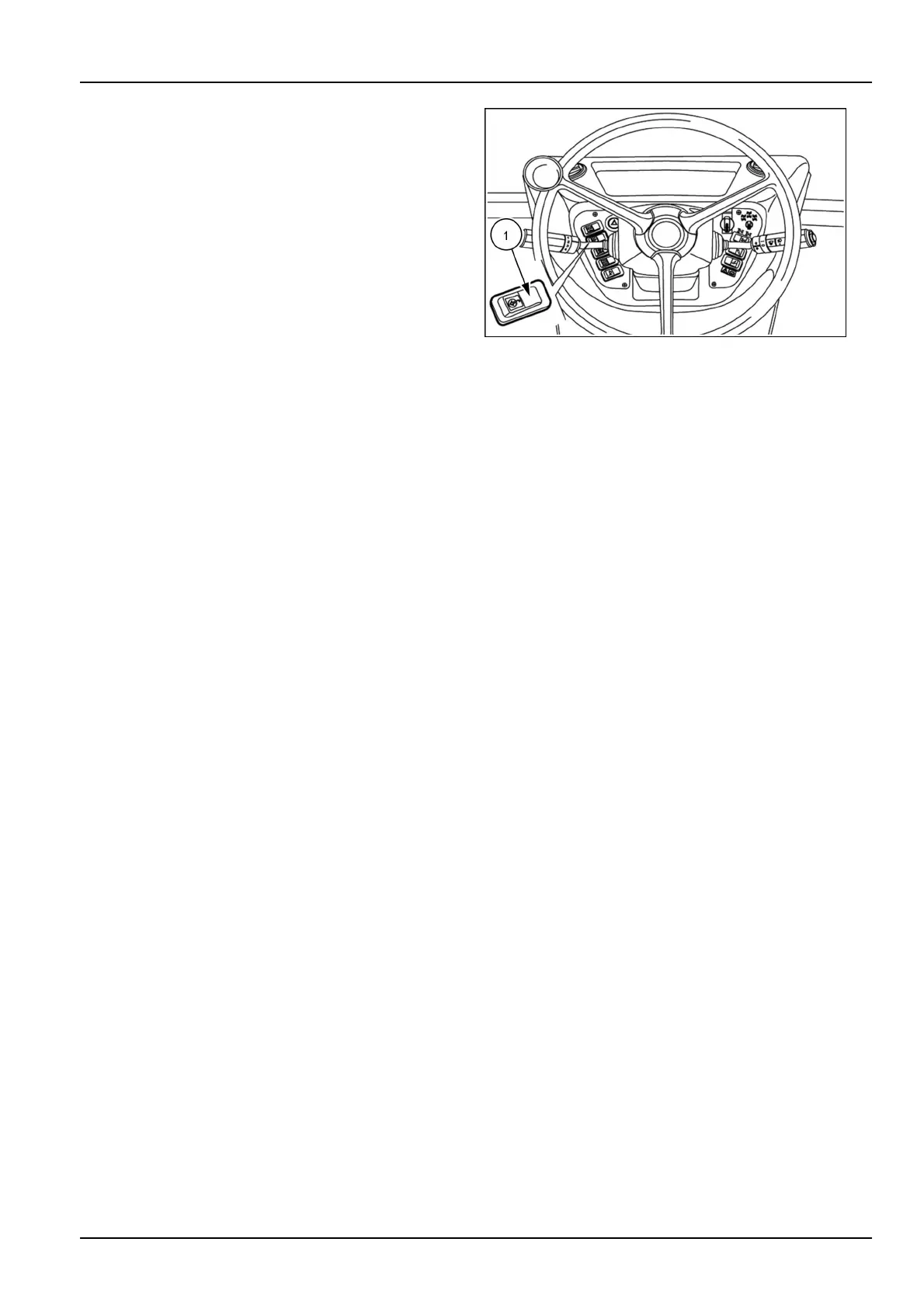

12.Ifavailable,presstheanti-tippingsensorswitch(1)to
activate.Thissensoractivatestheacousticalarm
whensensingthemachineisreachingitssafetylifting
loadlimit.
LEEN11T0199AA5
Tolifttheload,observethefollowinginstructions:
•
Keeptheloadascloseaspossibletothegroundand
tothemachine;
•
Lifttheloadslowly,avoidingsuddenmovementsthat
couldcauseloadswingandoperatelengthwiserather
thancrosswise.
•
Operatethecontrolssmoothlytoobtainprecisemove-
ments;
•
Inordertoreducetheload’soscillation,avoidslinging
itwithtoolongropesand/orchains.
Loadsaregiveninkilograms(kg),foramachinewithouta
backhoebucket,withthebucketcylinderrodcompletely
extended,andwiththefollowingsafetymargins:
•
33%forstability
•
15%forhydrauliclimitconsiderations
•
Withthebackhoebucketconnectingrodeyeastheload
xingpoint.
NOTE:Ifthebackhoebucketisinstalledonthemachine
theweightofthebucketmustbedeductedfromthevalues
given.
NOTE:Thereachesgivenasfromthebackhoeattach-
mentswingpivotpinandtheheightisthatoftheloadx-
ingpoint.
NOTE:Theloadsgivenarevalidthroughouttheentire
heightrangeattheconcernedcapacity.
6-43
