7-MAINTENANCE

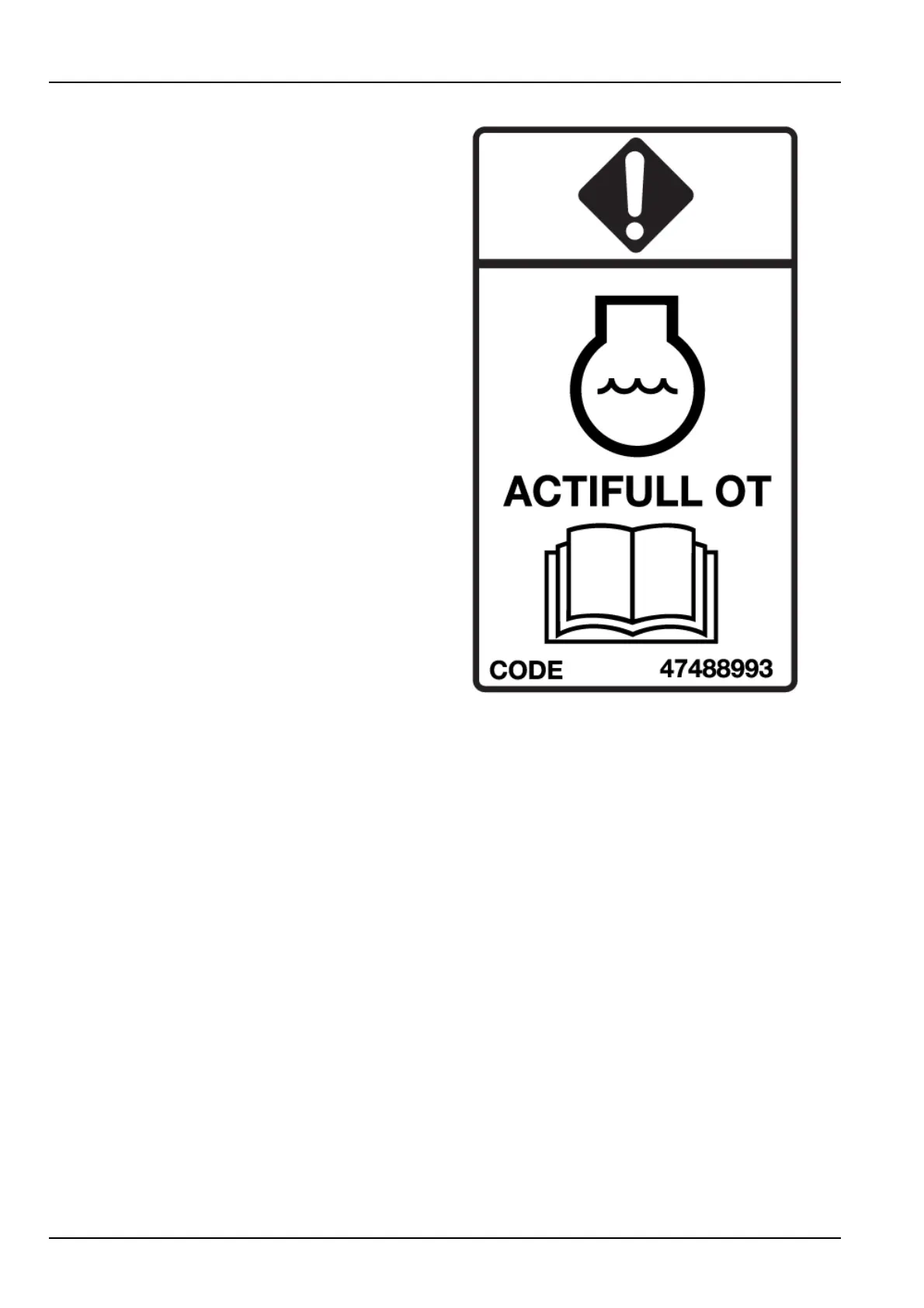

YoumaynoticetheolderversionoftheOATdecal(CNH

Industrialpartnumber47488993)onsomeapplications.

Denitions

Conventionalcoolant:

Acoolantthatreliesoninorganicinhibitorssuchassil-

icates,nitrites,andphosphatesforcorrosionandcavi-

tationprotection.

OrganicAcidTechnology(OAT)coolant:

Acoolantthatreliesoninhibitorssuchasorganicacid

saltsforcorrosionandcavitationprotection.

474889932

7-10
