7-MAINTENANCE

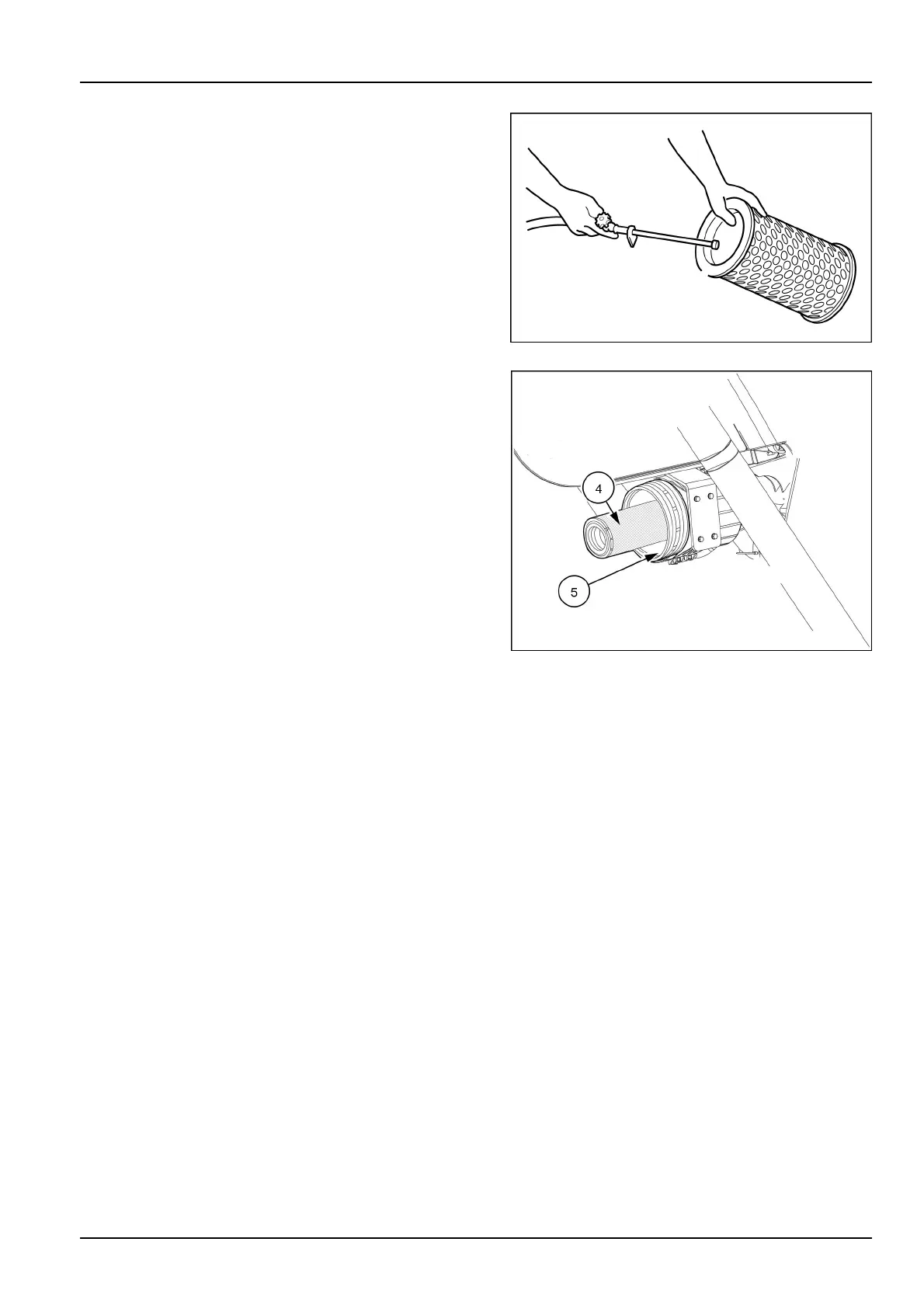

11.Blowcompressedairfromtheinsideoftheele-

ment.Maintainaminimumdistanceof3cm(1.2in)

betweentheairnozzleandtheinsideofthelter

element.

12.Cleaningiscompletewhennodustcomesoutofthe

lterelementanymore.

MOLI12LBB0464AB4

13.Withadrylintfreeclothwipetheinsideofthelter

housing(5)clean.Donotremovethesafetylterel-

ement(4).

LEEN12T0883FA5

14.Insertthemainlterelement.Makesurethatatight

evensealismadebetweenthelterhousingandlter.

15.Securetheltercoverwithretainingclips.

7-107
