9-SPECIFICATIONS

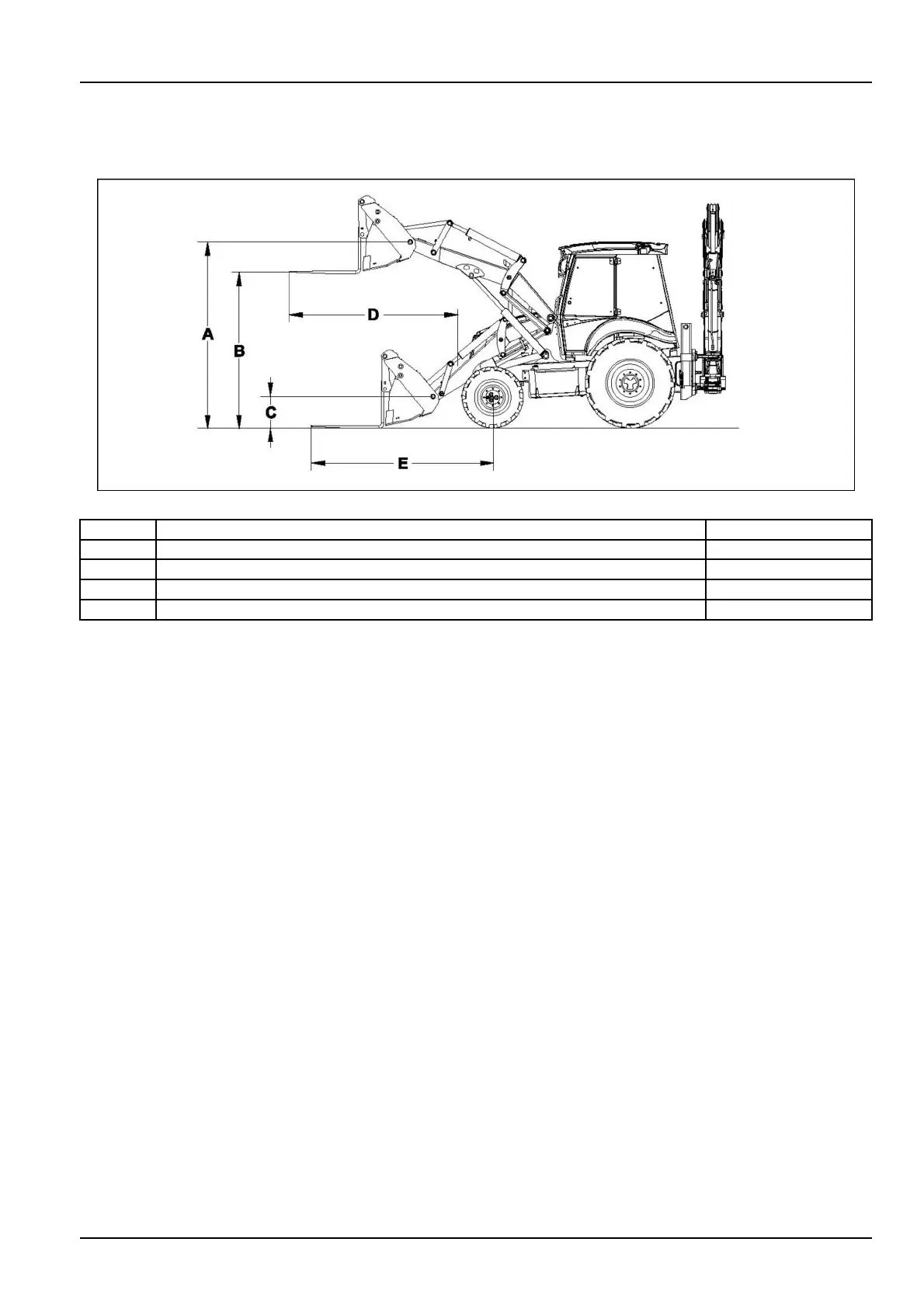

Performanceofloaderattachmentwithforks

580T/580STwithbentloaderarmand590ST

LEEN11T0027FA8

Maximumheightofloaderbucketpin/pivotwithliftedforks4245mm(167.1in)

Forkmaximumheight

3460mm(136.2in)

Heightofloaderbucketpin/pivotofloaderbucketwithloweredforks460mm(18.1in)

DForkreachwhenraised

2320mm(91.3in)

EForkreachwhenlowered

3185mm(125.4in)

9-21
