9-SPECIFICATIONS

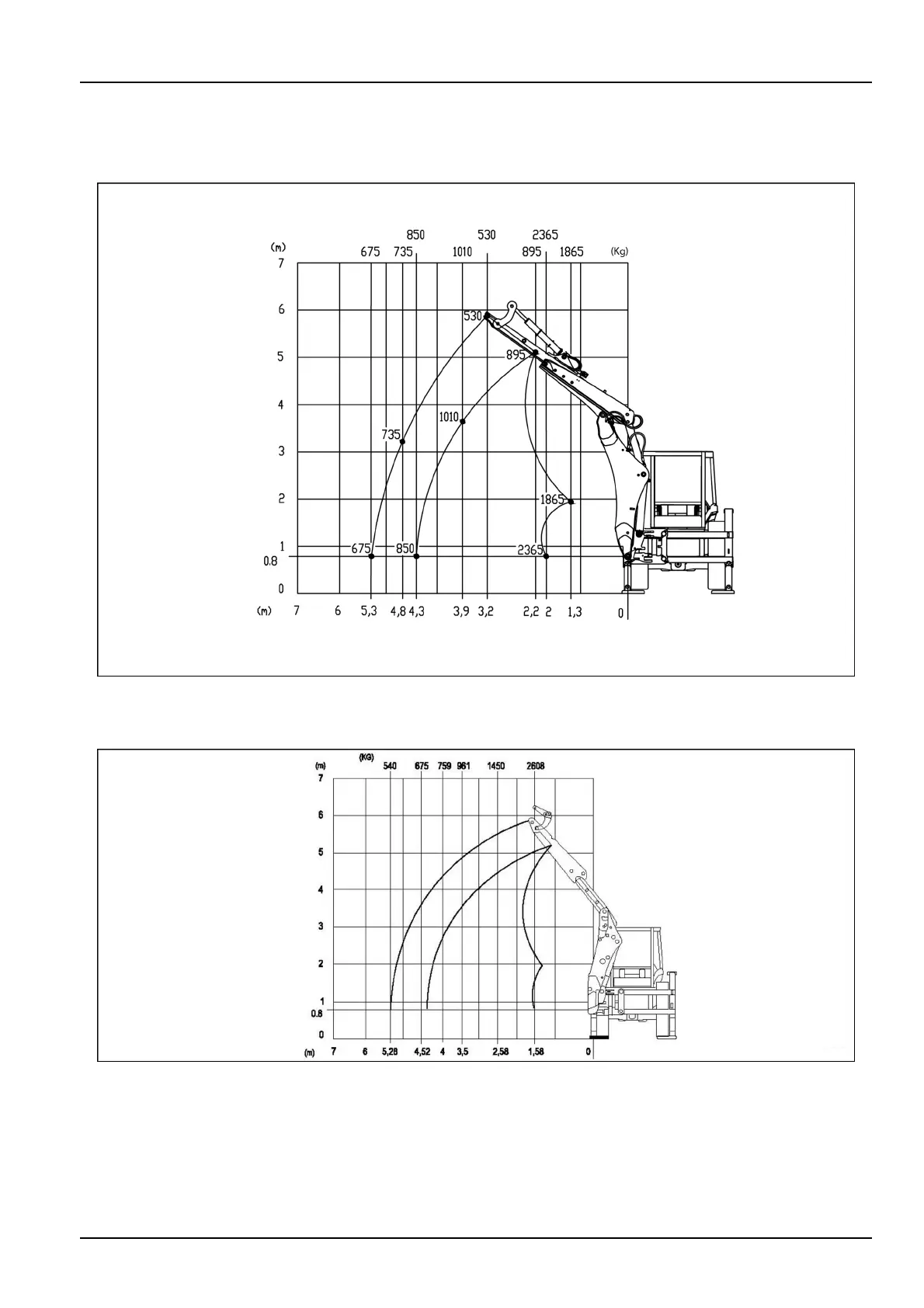

BACKHOEATTACHMENTMAXIMUMLIFTINGLOADTABLE

2WS(580T/580STwithanin-linecylinderboom)

RAIL15TLB0565FA3

2WS(580T/580STwithanoverlappingcylinderboom)

LEEN11T0040FA4

9-29
