3-CONTROLSANDINSTRUMENTS

Rearwindows

Open:

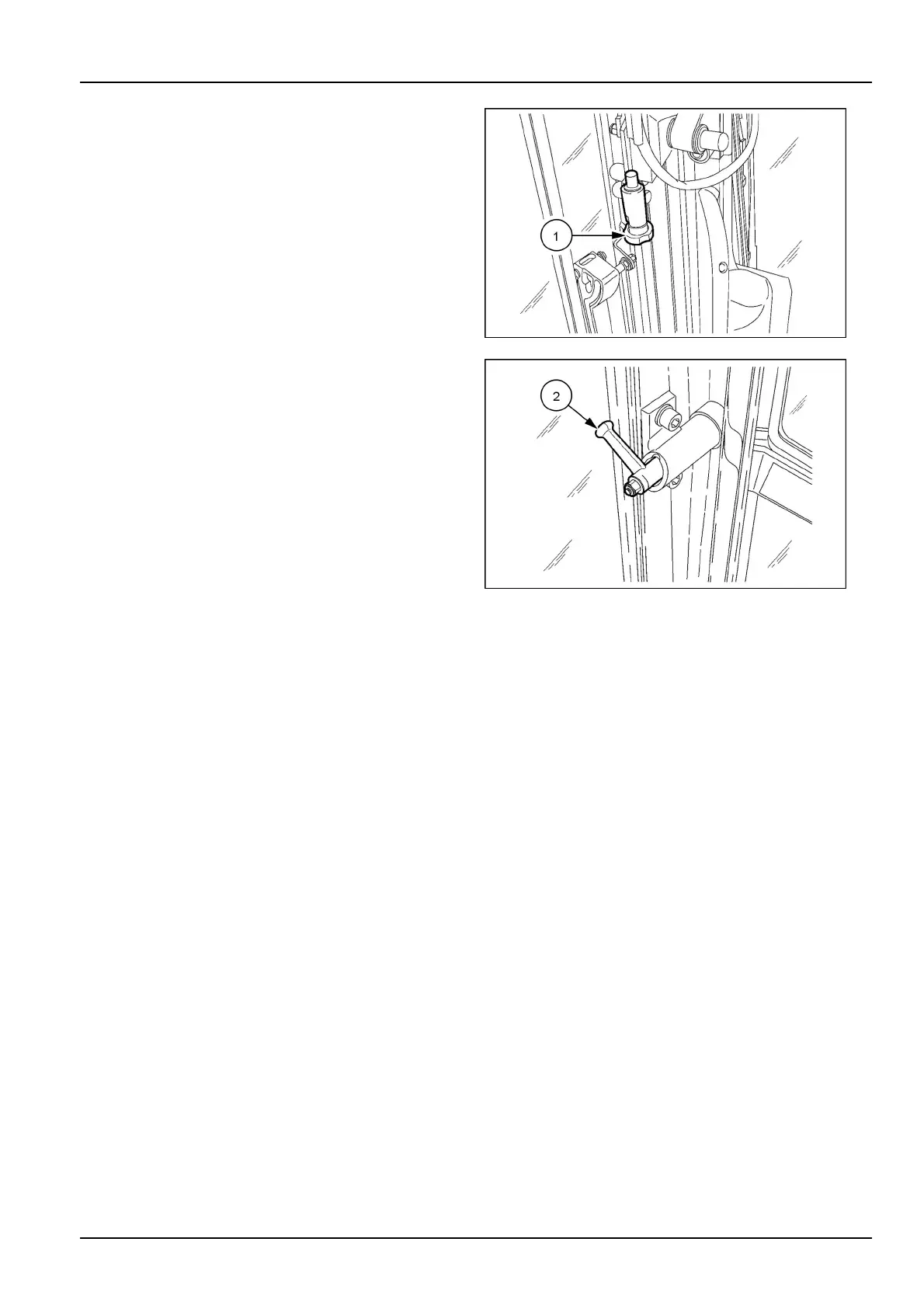

1.Turnthehandle(1)oneithersidetounlockthewin-

dow.

2.Pushthewindowoutwardsandupwardssimultane-

ouslytoopenituntilitengageswiththelockingdevice.

NOTICE:Makesurethatthewindowissecure.

Closing:

1.Releasethelatches(2)andtiltintolowerpositionwith

thehandles.

2.Lockthewindowwiththelocks(1)

MOLI12LBB0136AB6

MOLI12LBB0137AB7

3-3
