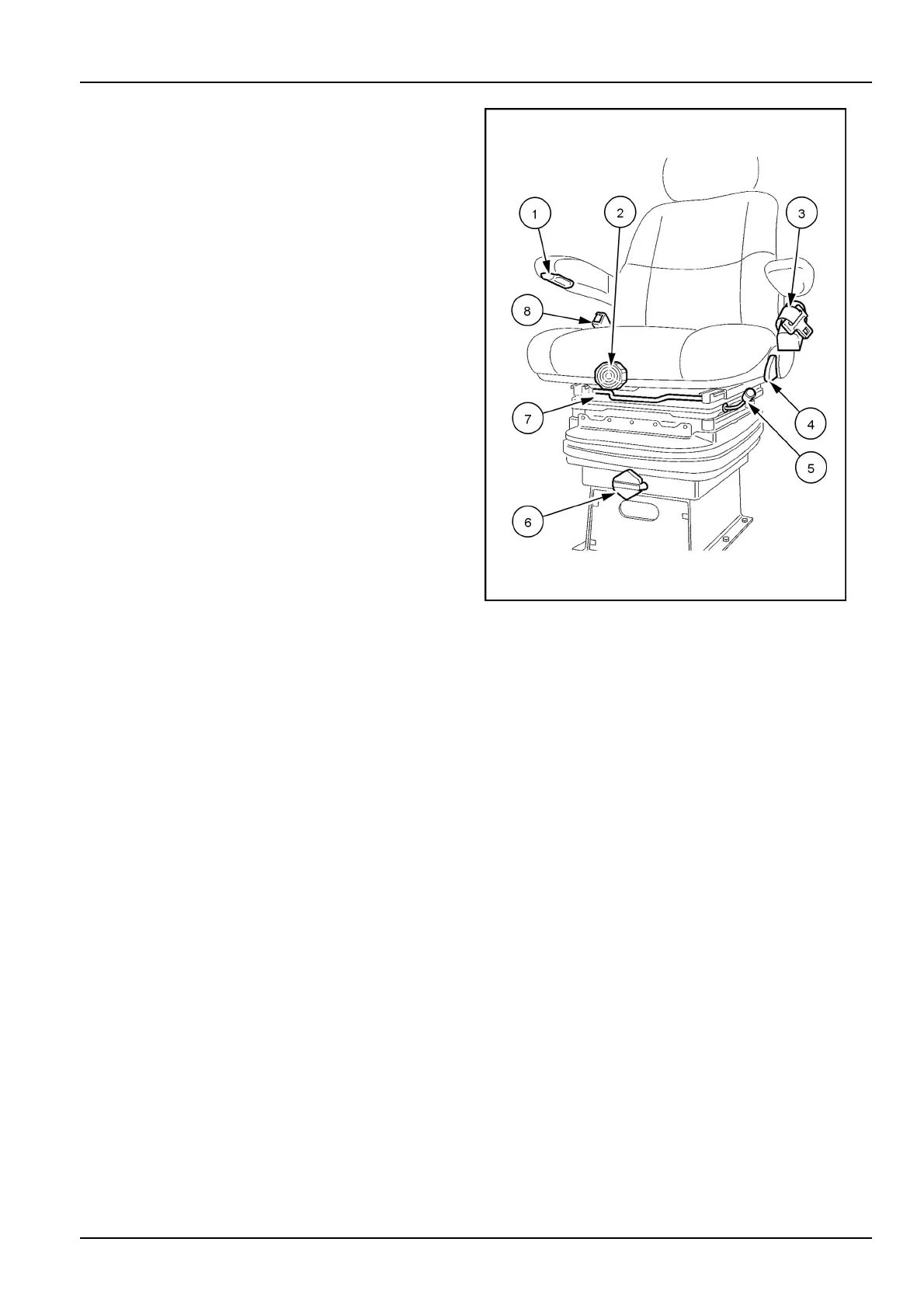

StandardSeat
Armrestangleadjustment
Raisethearmrest,turntheknob(1)toobtainthedesired
armrestpositionandthenlowerthearmrest.
Cushionangleadjustment
Toadjusttheseatcushionangle,turntheknob(2)clock-
wiseorcounterclockwise,toincreaseorreducetheangle
oftheseatcushion.
Seatbelt
Toattachtheseatbelt(3),insertthebuckleintothesocket
(8).
Toreleasethebelt,pressthebuttononthesocket.
Seatbackrestangleadjustment
Toadjusttheseatbackangle,holdthelever(4)rearward,
movetheseatbacktoobtainthedesiredpositionandthen
releasethelever.
Swing
Releasetheseatusinglever(5)andswingitround.Re-
leasetheleverandmakesurethattheseatlocksinplace.
Combinedheightandweightadjustment
Adjustmentmaybemadetosuittheoperator’ssize.Turn
thecontrol(6)setting.
Seatfore-and-aftadjustment
Holdthelever(7)inraisedposition,slidetheseatuntilthe
desiredpositionisreachedandthenreleasethelever.
Seatheightadjustment
Theseatheightcanbeadjustedtothreedetentpositions.
Toraisetheseat,pulllever(7)upwardsandlifttheseat
totherequiredposition.Tolowertheseat,pulltheseat
upwardstoallowthedetenttodisengageandtheseatto
returntothelowestposition.
