Case 695ST - Page 71

To Next Page

To Previous Page

3-CONTROLSANDINSTRUMENTS

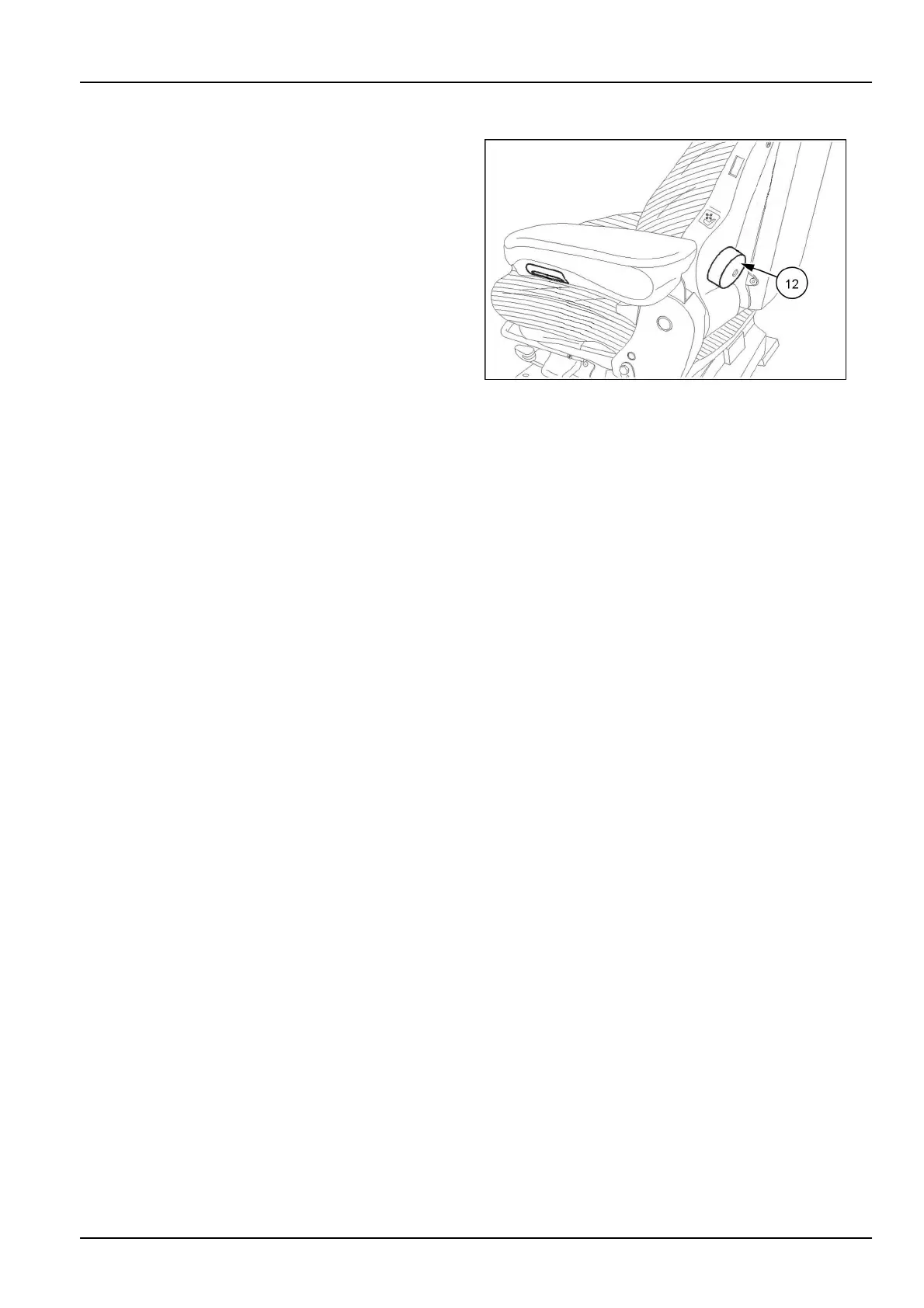

Lumbarsupportadjustment

Turntheknob(12)toobtaingoodbacksupportfromthe

seatback.

LEEN11T0088AA9

3-9
