OPERATING INSTRUCTIONS
103
RIGHT PAGE
Bur 6-34090EUR
Booster Battery Connections to Machine Jumper Stud
and Ground (Jump Start)
SA006
M146B
NOTE: Two persons are required for
this procedure. Make sure the person
making the connections is wearing face
protection.
1. Open the side door.
2. Sit in the operators seat and have
the other person make the
connections.
3. If using jumper batteries, make
sure the jumper batteries are 24
volts.
4. If using another machine for power,
make sure the two machines, DO
NOT touch.
NOTE: Make sure the batteries are not
frozen. Do not use batteries that have
been frozen. Replace the batteries if
the batteries have been frozen.
5. Connect the positive (+) jumper
cable to the positive (+) battery
terminal on the jumper batteries or
the other machine. Connect the
other end to the positive jumper
stud.
6. Connect the negative (-) jumper
cable to the negative (-) terminal on
the jumper batteries or the other
machine. Connect the other end of
the negative (-) jumper cable to a
good frame ground away from the
batteries.
7. Start the engine according to the
instructions in this manual. See
Starting the Engine in this manual.
8. Have the other person disconnect
the jumper cables in the reverse
order that the jumper cables were
connected in.
9. Close the side door.

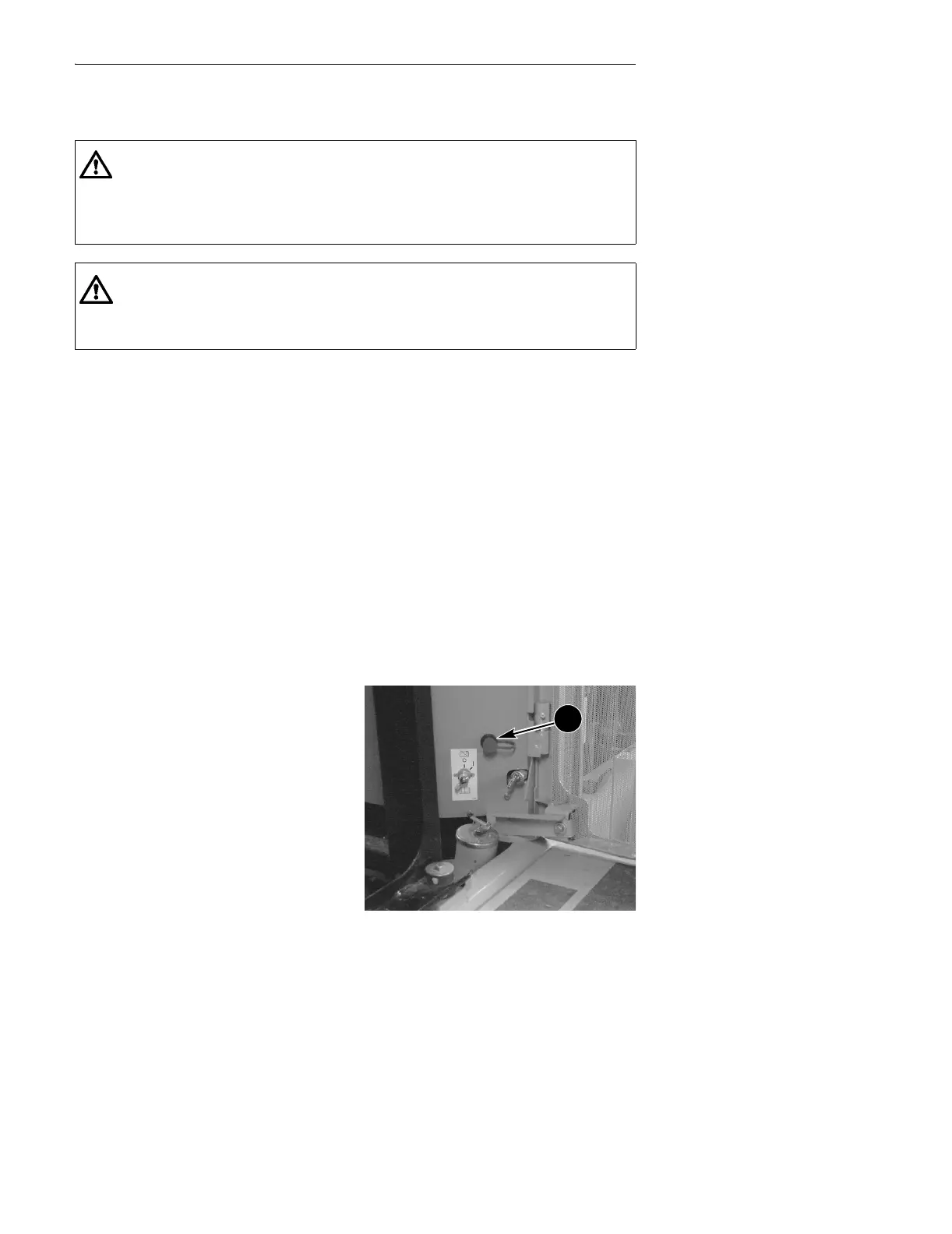

BD02B030
1. CONNECT POSITIVE JUMPER CABLE
HERE
WARNING: Batteries contain acid and explosive gas. Explosion can
result from sparks, flames or wrong cable connections. To connect the
jumper cables correctly to the battery of this machine, see the correct
method shown on this page. Failure to follow these instructions can cause
serious injury or death.
WARNING: Battery explosion and/or damage to electrical components
can result from improper connection of booster batteries or charger.
Connect positive to positive and negative to negative. Externally, battery
acid can cause burns and blindness, and taken internally it is poison.
1
