OPERATING INSTRUCTIONS
111
RIGHT PAGE
Bur 6-34090EUR

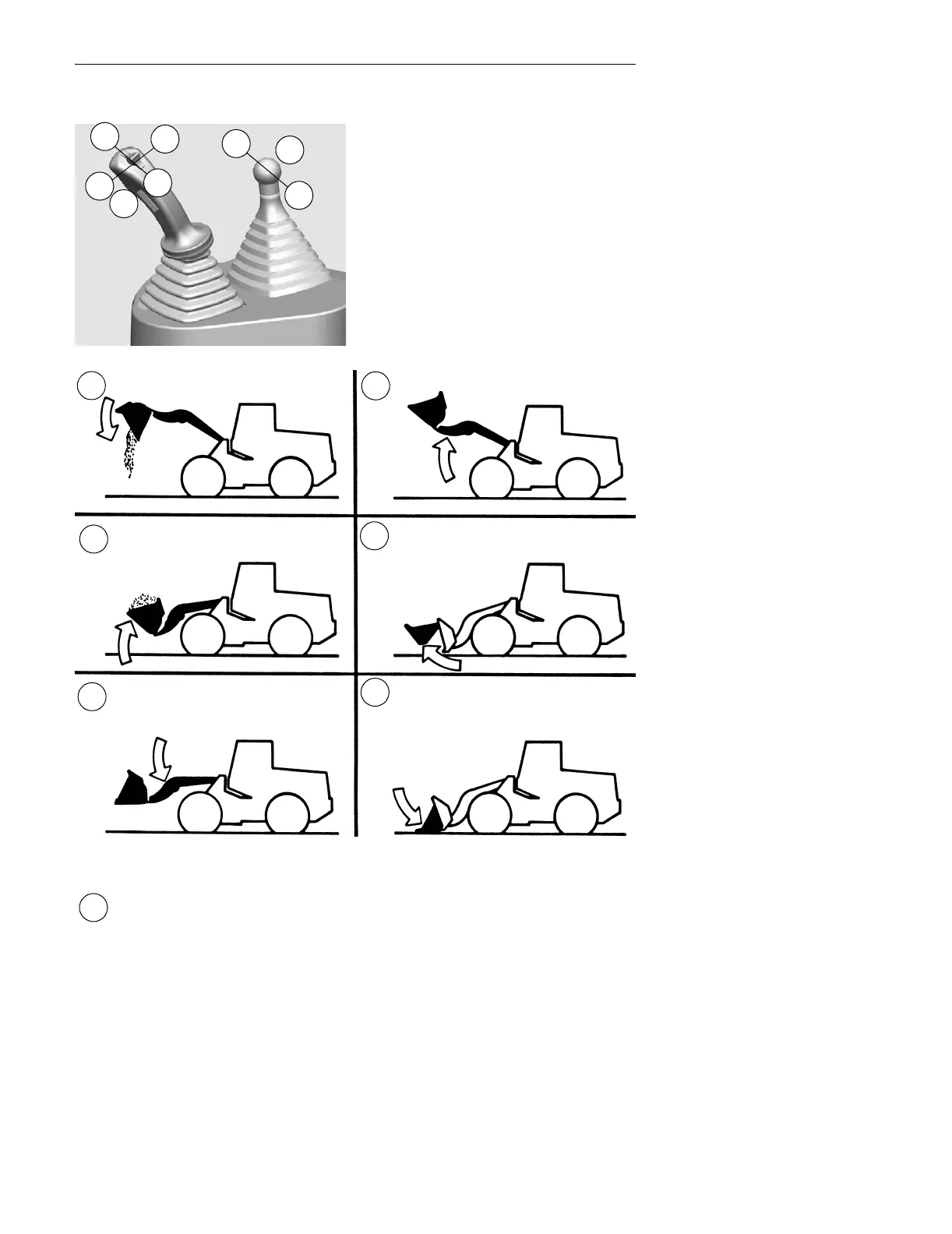

Three Spool Valve - Two Control Levers
BC01E130
NOTE: This page shows the basic
loader control lever positions. The
Detent Switch for the loader functions
is in the OFF position.
See Loader Function Switches in this
manual for RETURN-TO-DIG,
BUCKET HEIGHT CONTROL and
RETURN-TO-TRAVEL/FLOAT
switches.
B1120A88J
HOLD: The loader arms, bucket, and clam will not move when the control
levers are in HOLD. When released, the control levers will return to HOLD
automatically.
7
6
5
1
2
3
4
7
1. DUMP 3. LOWER 5. CLAM OPEN
2. ROLLBACK 4. RAISE 6. CLAM CLOSED
1
2
4
5
3
6
7
