WHEELS/TIRES/BALLAST
136
LEFT PAGE
Bur 6-34090EUR

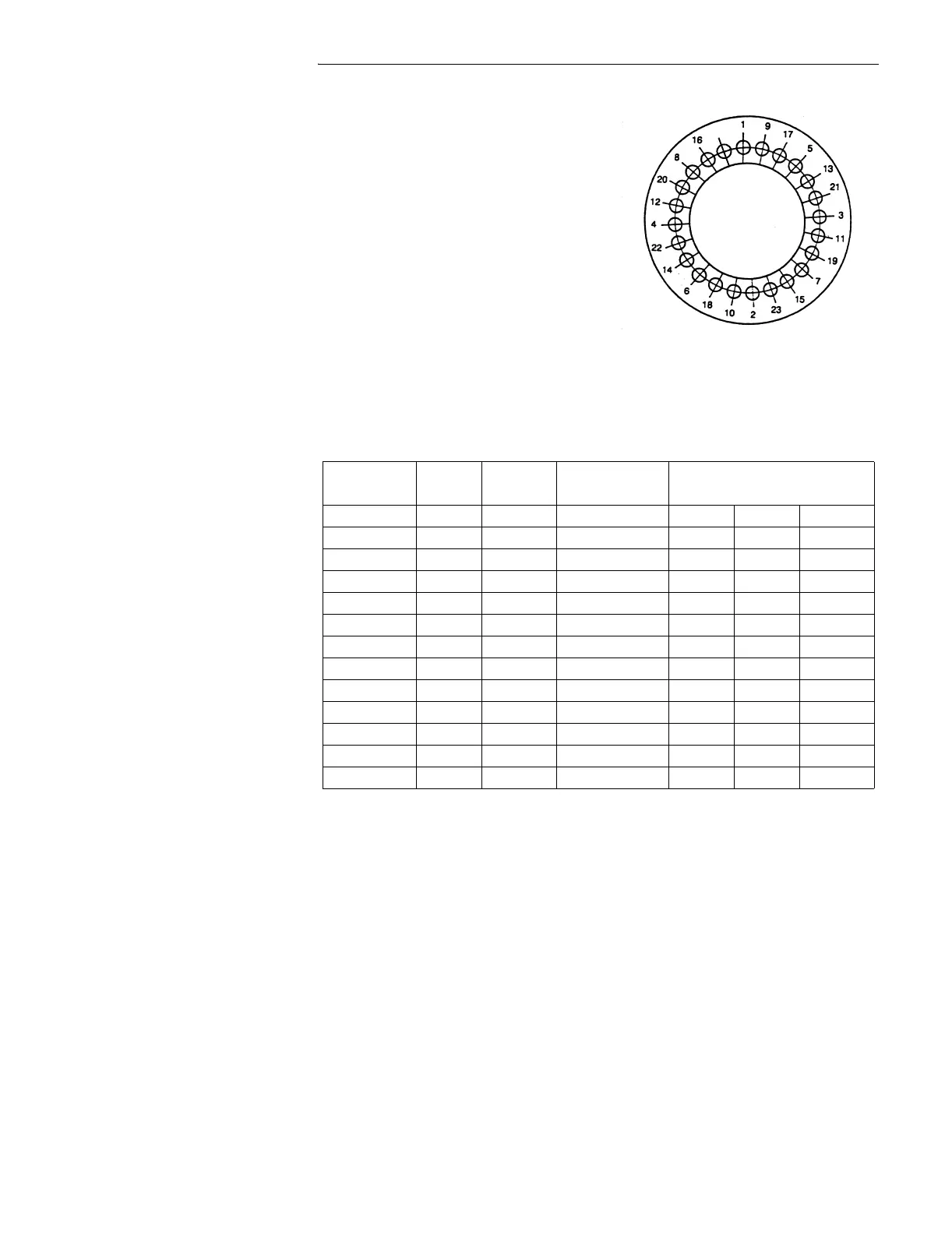

Wheel Nut Torque
Check the torque of the wheel nuts
after every 20 hours of operation until
the wheel nuts stay tight, if the machine
is new or if a wheel has been removed
and installed.
If a wheel is removed from the machine
and installed, tighten the nuts using the
sequence shown. First tighten the nuts
to 203 Nm (150 pound-feet), then to a
final torque of 515 to 569 Nm (380 to
420 pound-feet) in the same sequence.
B910920J
Tire Pressure Chart
NOTE: * For correct mounting of the Michelin radial tires, lubricate the tire beads
with tire mounting lubricant. Inflate to 552 Kpa, (80 psi), (5.5 bar). After the tire
beads are correctly seated, decrease the tire pressure to the correct pressure
shown above.
24
TIRE PLY TREAD TIRE PRESSURE
SIZE RATING TYPE kPa (PSI) (bar)
26.5 X 25 F & R 20 L2 345 50 3.4
26.5 X 25 F & R 20 L3 345 50 3.4
26.5 X 25 F & R 20 L4 380 55 3.8
26.5 X 25 FRONT 20 L5 380 55 3.8
REAR 20 L5 276 40 2.8
26.5 R 25 FRONT XHA TL* 414 60 4.1
REAR XHA TL* 207 30 2.1
26.5 R 25 FRONT XRD IA 414 60 4.1
REAR XRD IA 207 30 2.1
750/65R25 FRONT XLD L3 414 60 4.1
REAR XLD L3 207 30 2.1
26.5 R 25 FRONT VMT L3 414 60 4.1
REAR VMT L3 310 45 3.1
