MAINTENANCE/ADJUSTMENT
187
RIGHT PAGE
Bur 6-34090EUR

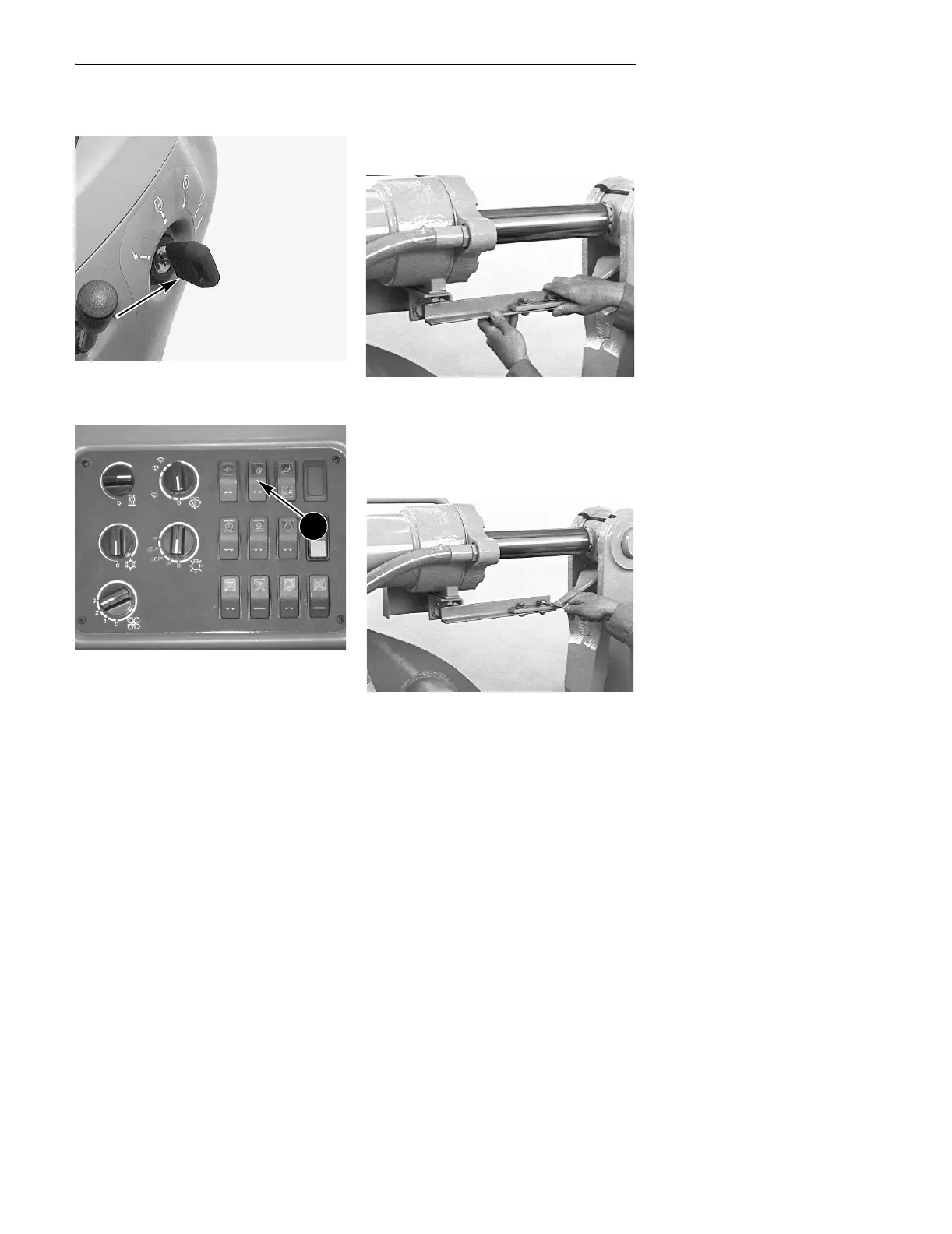

7. Turn the key switch to the ON
position but do not start the engine.
RD98K312
8. Push down on the top side of the
detent function switch.
BD02B055
1. DETENT OFF/ON SWITCH
9. Have another person help you at
this time. Slowly move the actuator
forward until the bucket control
lever returns to NEUTRAL.
B4037188T
10. Tighten the cap screws that fasten
the actuator. Make sure the 1/8 to
3/16 inch (3.2 to 5.0 mm) clearance
is maintained through the full
stroke of the cylinder.
B4037088T
11. Start the engine. Raise the loader
frame all the way and dump the
bucket completely. Increase the
engine speed to full throttle. Pull
back the bucket control lever to the
ROLLBACK position. The bucket
will roll back automatically.
12. Lower the bucket to the floor and
stop the engine.
13. If the bucket is not in the correct
position, adjust the actuator as
required.
1
