MAINTENANCE/ADJUSTMENT
188
LEFT PAGE
Bur 6-34090EUR
Return-To-Travel Minor
Adjustment
1. Lower the loader bucket to the
ground.
2. Park the machine on a level
surface and apply the parking
brake.
3. Stop the engine.

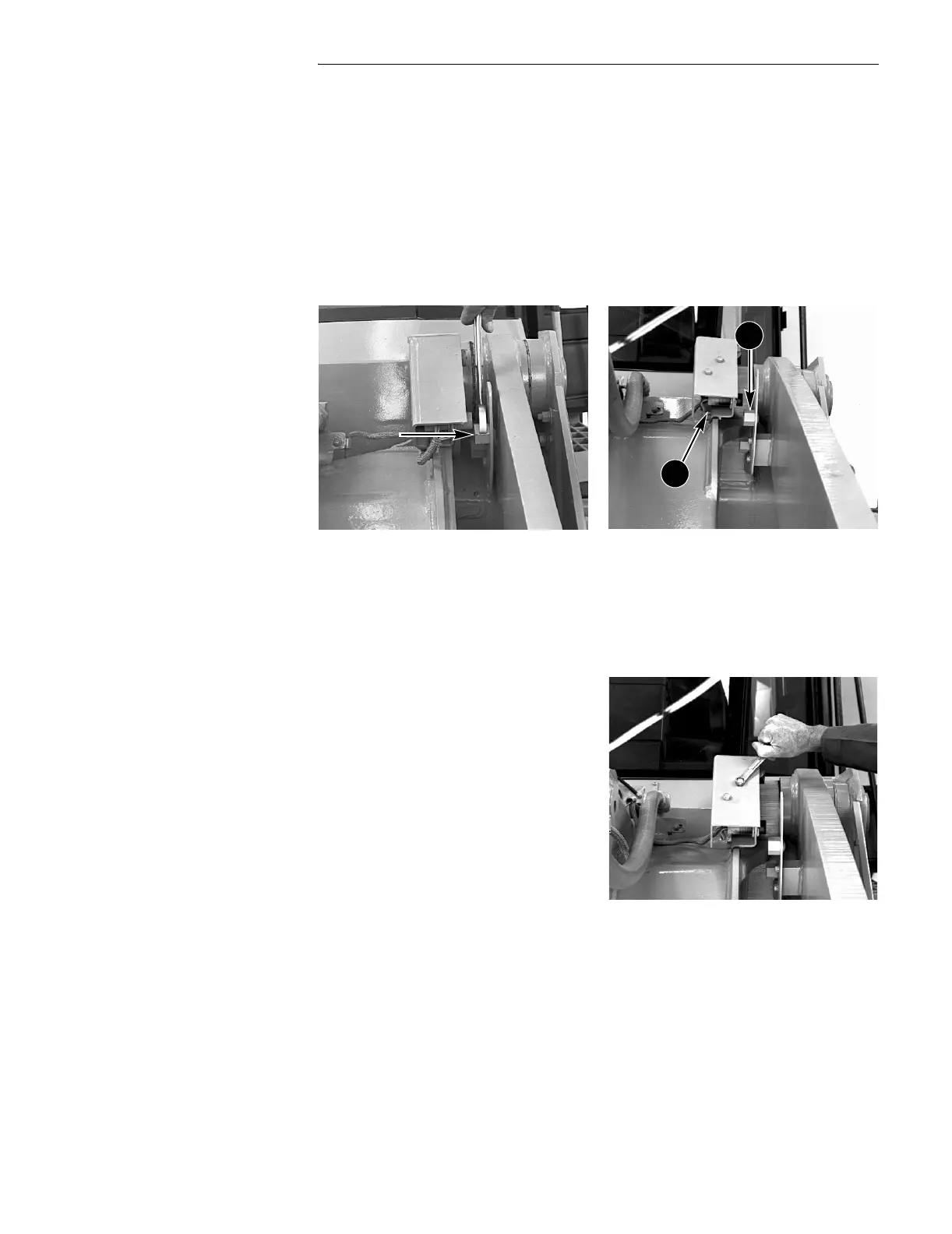

4. Loosen the front actuator.
B4063388T
5. To increase the carry height, move
the actuator down in the slot. To
decrease the carry height, move
the actuator up in the slot.
6. Tighten the actuator and check the
adjustment.
Return-To-Travel
Adjustment
1. Park the machine on a level
surface and apply the parking
brake.
2. Raise the loader until the front
actuator is even with the Return-
To-Travel switch. Make sure the
clearance is 1/8 to 3/16 inch (3.2 to
5.0 mm).
B4196789T
1. FRONT ACTUATOR
2. RETURN-TO-TRAVEL SWITCH
3. Stop the engine.
4. Loosen and remove the screws
and hardened washers that fasten
the cover.
B4196689T
2
1
