MAINTENANCE/ADJUSTMENT
189
RIGHT PAGE
Bur 6-34090EUR

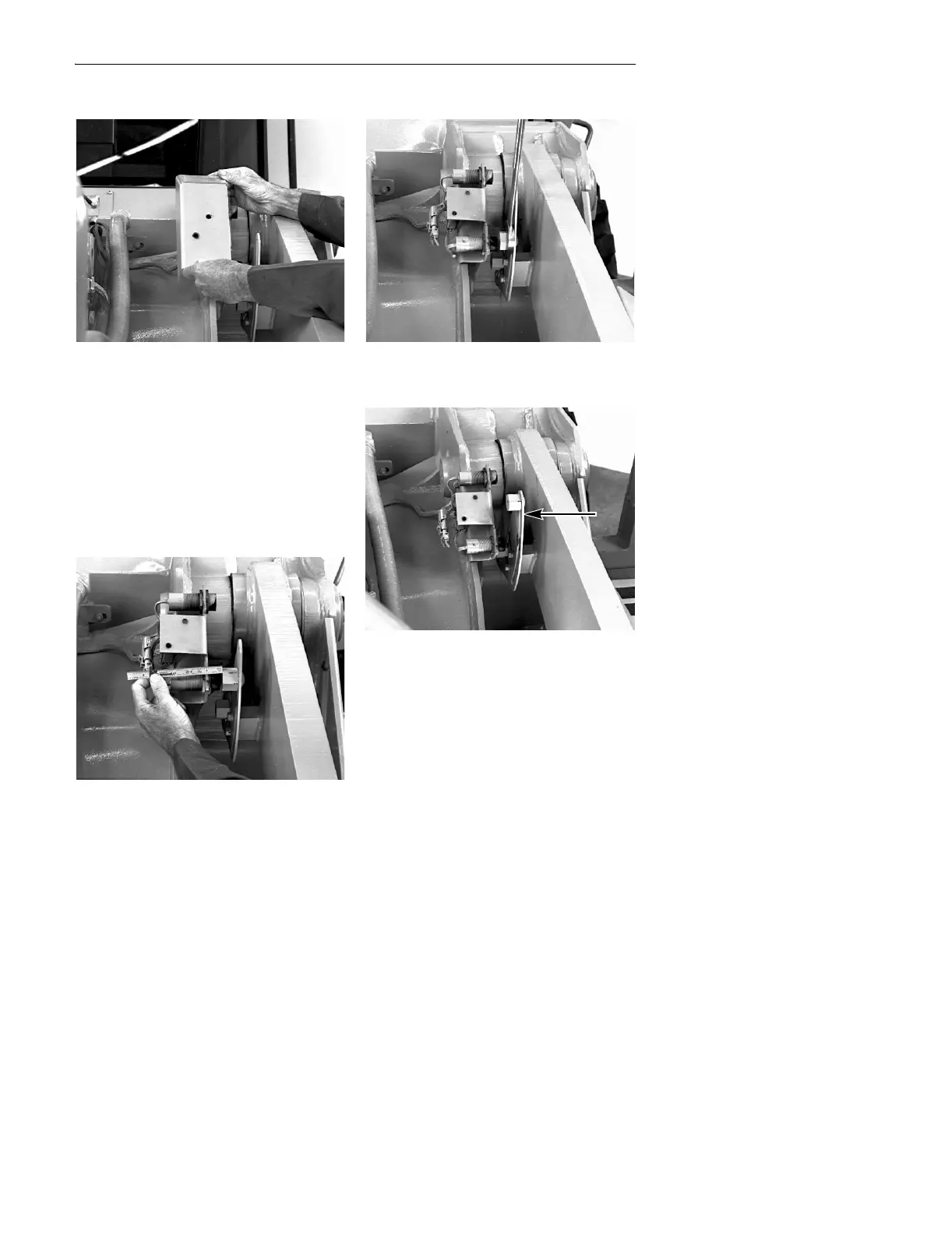

5. Remove the cover.
B4196589T
6. Check the clearance between the
actuator and the switch. This
clearance is 1/8 to 3/16 inch (3.2 to
5.0 mm). If the clearance is not
correct, loosen the nuts for the
switch and adjust the nuts so there
is 1/8 to 3/16 inch (3.2 to 5.0 mm)
clearance between the switch and
the actuator. Hold the switch in
position and tighten the nuts.
B4196489T
7. Have another person help you at
this time. Start the engine and
lower the loader frame until the
bucket is at the desired height
above the floor. Put a sufficient
support under each end of the
bucket and stop the engine.
8. Loosen the actuator.
B4196289T
9. Move the actuator up in the slot
and hand tighten the actuator.
B4196189T
10. Turn the key switch to ON but do
not start the engine.
