MAINTENANCE/ADJUSTMENT
190
LEFT PAGE
Bur 6-34090EUR

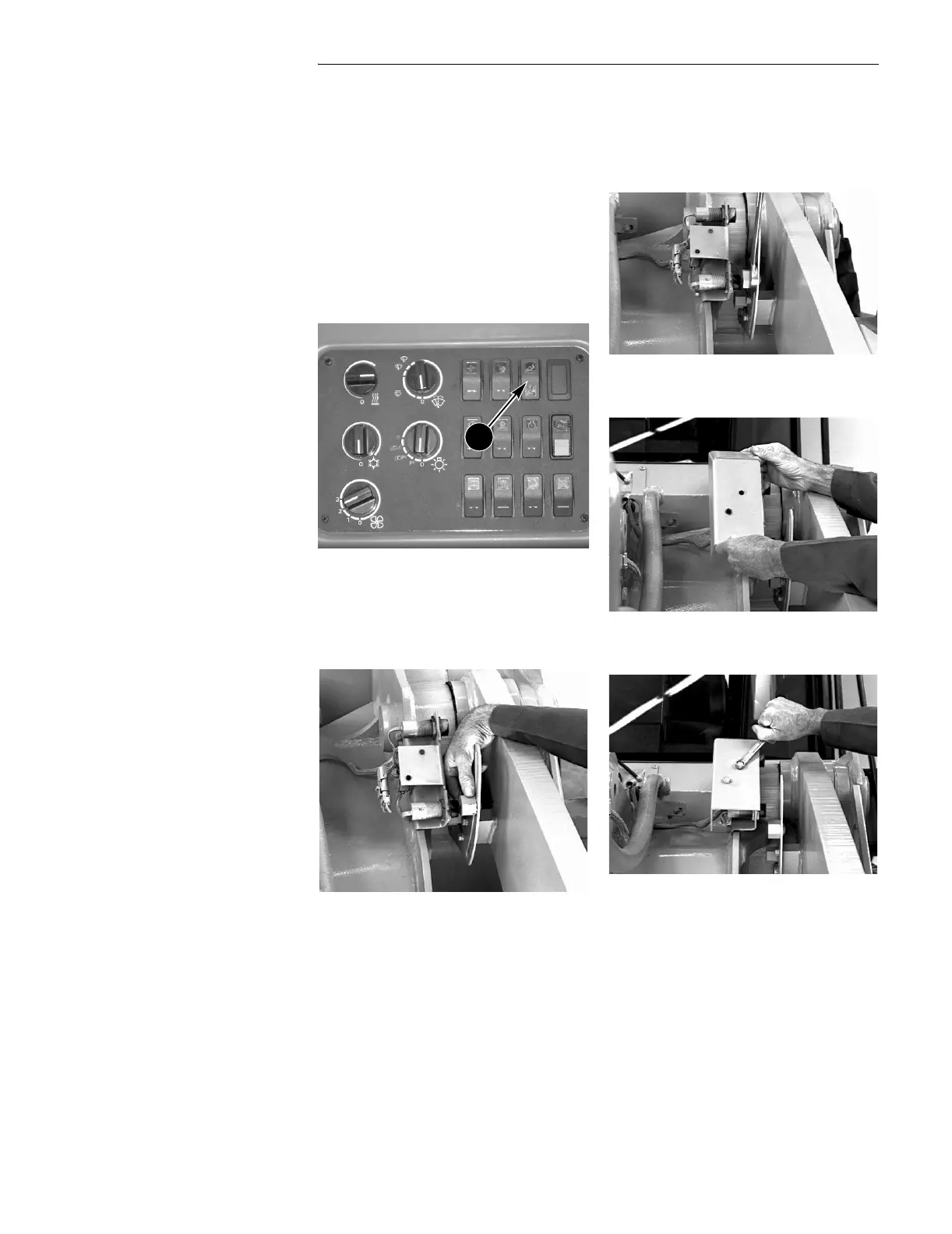

11. Push down on the top of the
Return-To-Travel detent switch.
Move the lift control lever from the
HOLD position to the RAISE
position several times to relieve all
of the pressure in the accumulator.
Turn the key switch to the ON
position. Move the lift control lever
to the FLOAT position. The lift
control lever will remain in this
position and the loader frame will
not move.
BD02B055
1. RETURN-TO-TRAVEL SWITCH
12. Loosen the actuator and slowly
move the actuator down the slot
until the lift control lever returns to
HOLD.
B4196089T
13. Tighten the actuator. Move the lift
control lever to the FLOAT position.
The loader frame will lower and
stop at the adjusted height above
the floor.
B4196289T
14. When the adjustment is correct,
install the cover.
B4196589T
15. Install the screws and hardened
washers and tighten the screws.
B4196689T
16. Remove each support from under
the bucket and lower the bucket to
the floor.
