MAINTENANCE/ADJUSTMENT
191
RIGHT PAGE
Bur 6-34090EUR

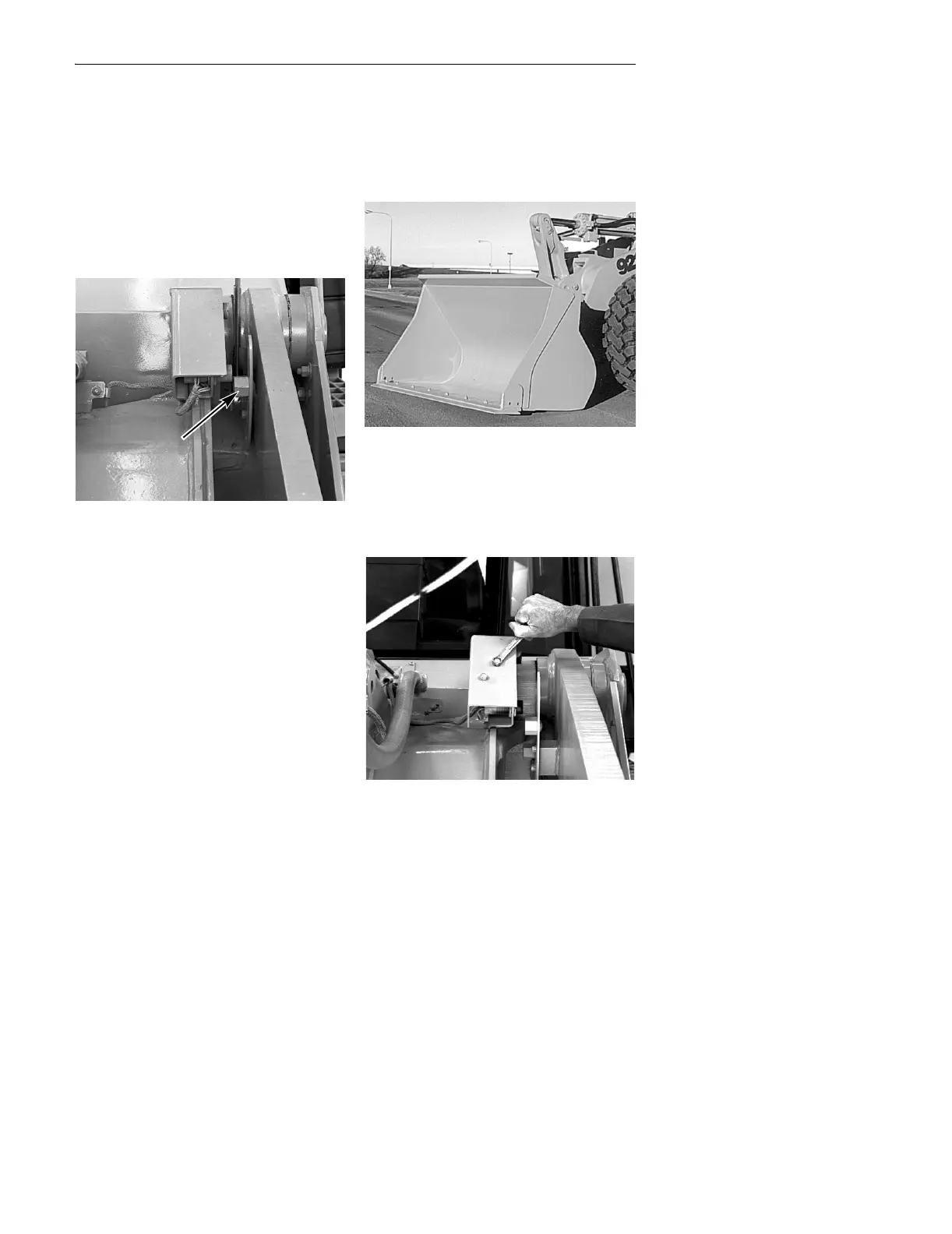

Bucket Height Control
Minor Adjustment
1. Park the machine on a level
surface. Lower the loader bucket to
the floor.
2. Apply the parking brake and stop
the engine.
3. Loosen the rear actuator.
B4063488T
4. To increase the dump height, move
the actuator down in the slot. To
decrease the dump height, move
the actuator up.
5. Tighten the actuator.
6. Start the engine and pull the lift
control lever to the RAISE detent
position. When the loader arms
stop moving, check the dump
height.
Bucket Height Control
Adjustment
1. Park the machine on a level
surface and lower the loader frame
so the bucket is flat on the floor.
RP98N357
2. Stop the engine and apply the
parking brake.
3. Loosen and remove the screws
and hardened washers that fasten
the cover.
B4196689T
To Next Page
