MAINTENANCE/ADJUSTMENT
192
LEFT PAGE
Bur 6-34090EUR
4. Remove the cover.

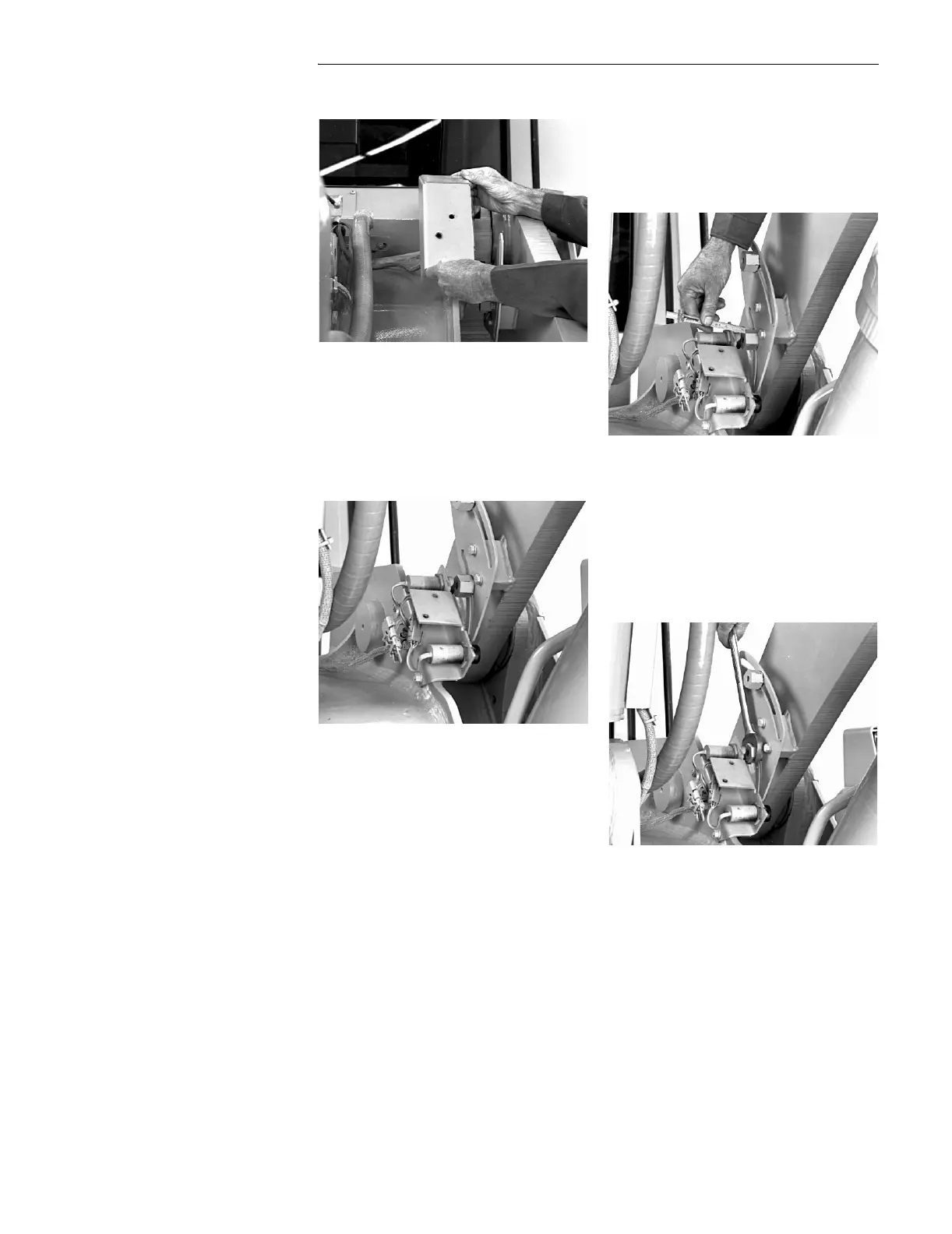

B4196589T
5. Start the engine and raise the
loader frame until the rear actuator
is even with the Bucket Height
Control switch. Stop the engine.
Connect acceptable lifting
equipment to the loader arms that
will hold the loader in place.
B4195489T
6. Loosen the nuts of the switch and
adjust the nuts so there is 1/8 to 3/
16 inch (3.2 to 5.0 mm) clearance
between the switch and the
actuator. Hold the switch in position
and tighten the nuts.
B4195989T
7. Disconnect the lifting equipment.
Start the engine. Dump the bucket
completely and raise or lower the
loader frame for the bucket height
required. Stop the engine. Connect
the lifting equipment to the
crossmember of the loader.
8. Loosen the actuator.
B4195789T
To Next Page
