MAINTENANCE/ADJUSTMENT
193
RIGHT PAGE
Bur 6-34090EUR

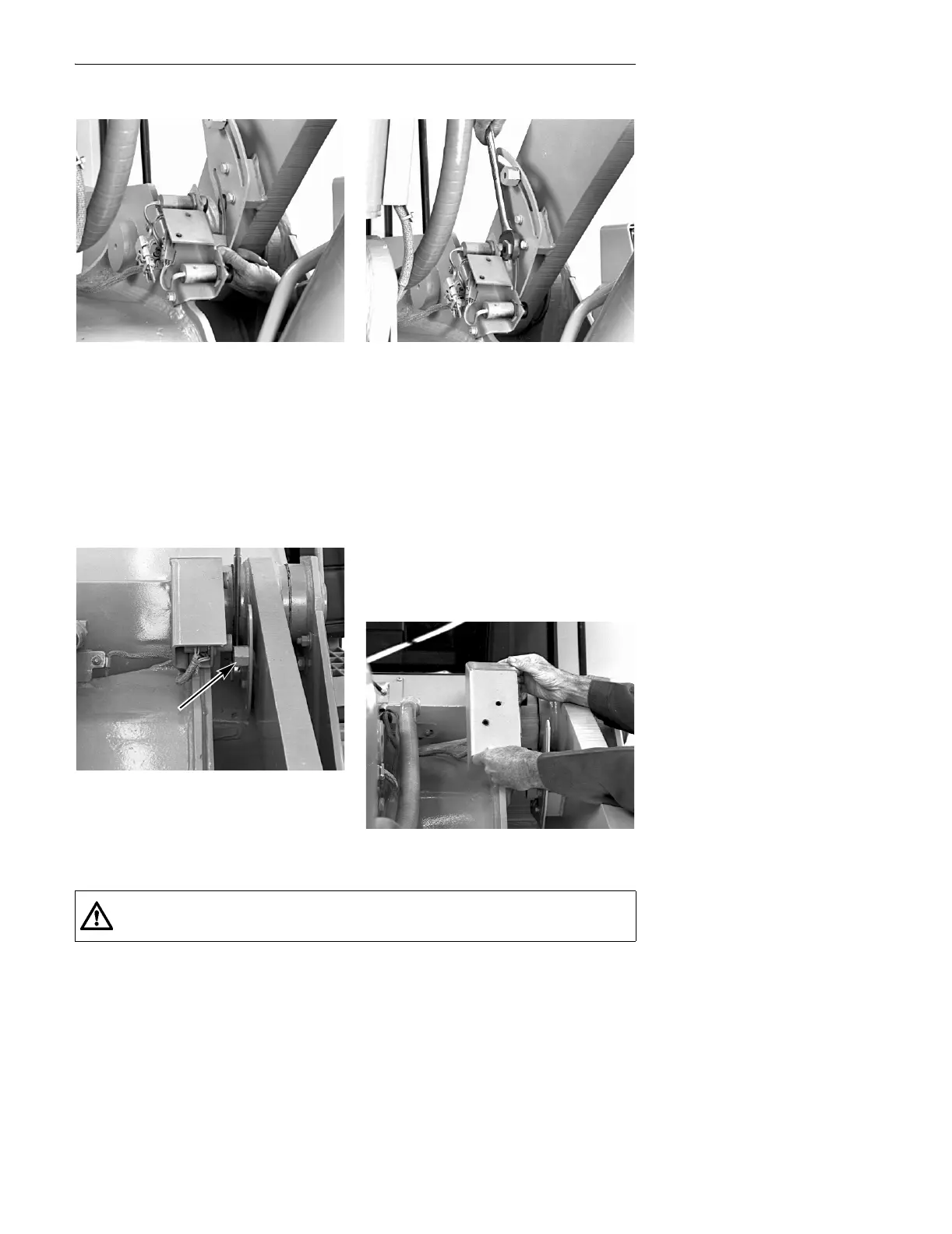

9. Move the actuator down in the slot.
B4195689T
10. Turn the key switch to ON but do
not start the engine.
11. Push in the left side of the Bucket
Height Control switch on the
instrument panel. Move the lift
control lever to the RAISE position.
The lift control lever will remain in
this position and the loader frame
will not move.
B4063488T
12. Slowly move the actuator up the
slot until the lift control lever returns
to HOLD.
13. Tighten the actuator.
B4195789T
14. Disconnect the lifting equipment
from the crossmember of the
loader frame. Start the engine and
lower the loader frame so the
bucket is flat on the floor.
15. Put the lift control lever in the
RAISE position. The loader frame
will raise and stop at the adjusted
bucket height.
16. Lower the loader frame so that the
bucket is flat on the floor. Stop the
engine.
17. Install the cover.
B4196589T
18. Install the screws and hardened
washers and tighten the screws.
CM115
WARNING: Replace all covers or guards after servicing or cleaning the
machine. NEVER operate the machine with covers or guards removed.
