Case 921C - Page 211

MAINTENANCE/ADJUSTMENT
205
RIGHT PAGE
Bur 6-34090EUR
3. If the tension for the air
conditioning compressor belt is not
correct, loosen the pivot bolt.
Loosen the strap bolt and nut,
move the air conditioning
compressor as required to loosen
or tighten the air conditioning
compressor belt.

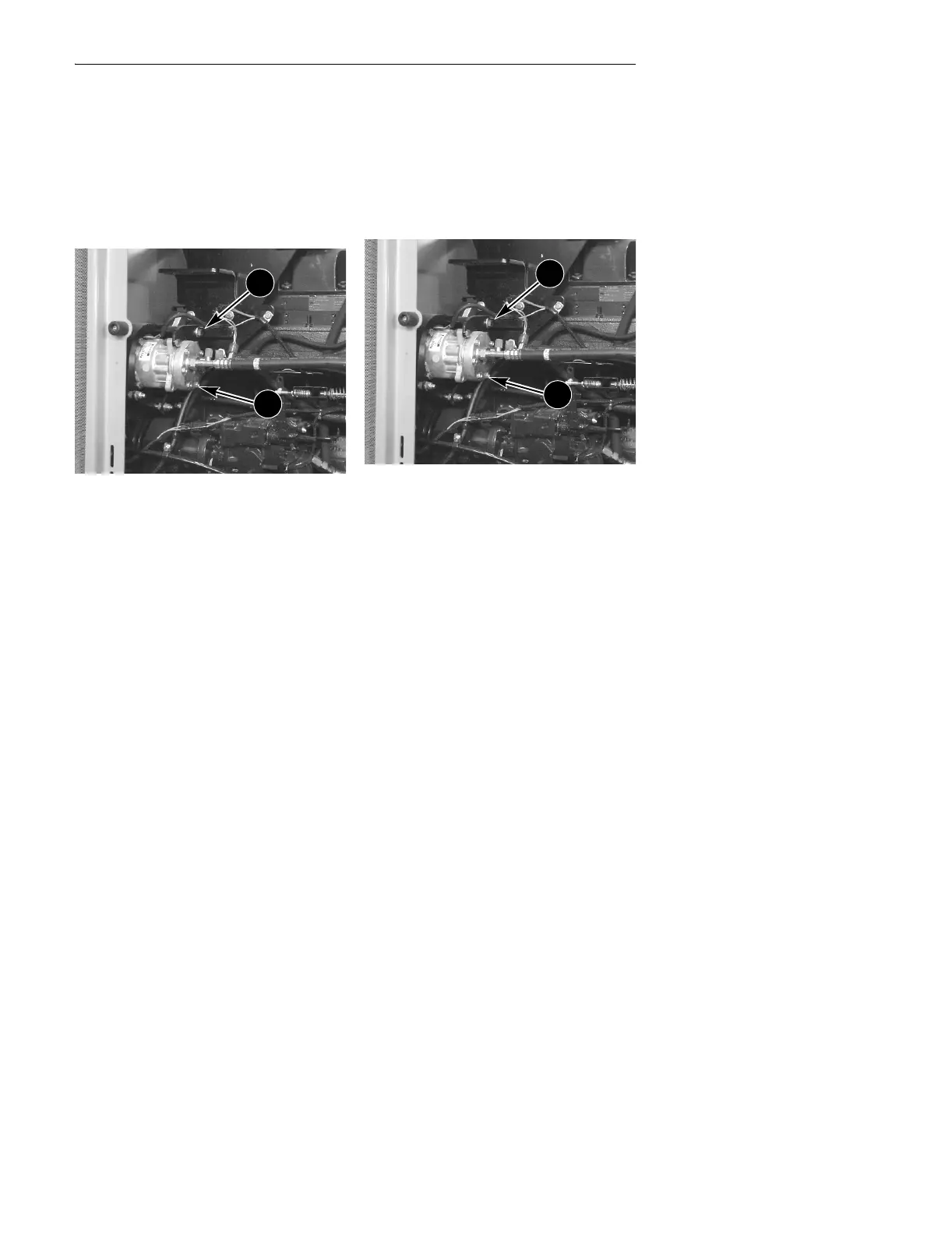

BD02B041
1. PIVOT BOLT
2. STRAP BOLT
Removal and Installation
1. Loosen the pivot bolt. Loosen the
strap bolt and move the air
conditioning compressor down until
the belt is loose. Remove and
discard the air conditioning
compressor belt.
BD02B041
1. PIVOT BOLT
2. STRAP BOLT
2. Install a new air conditioning
compressor belt. See Air
Conditioning Compressor Belt
Inspection and Adjustment and
adjust the air conditioning
compressor belt to the correct
tension.
1
2
1
2
