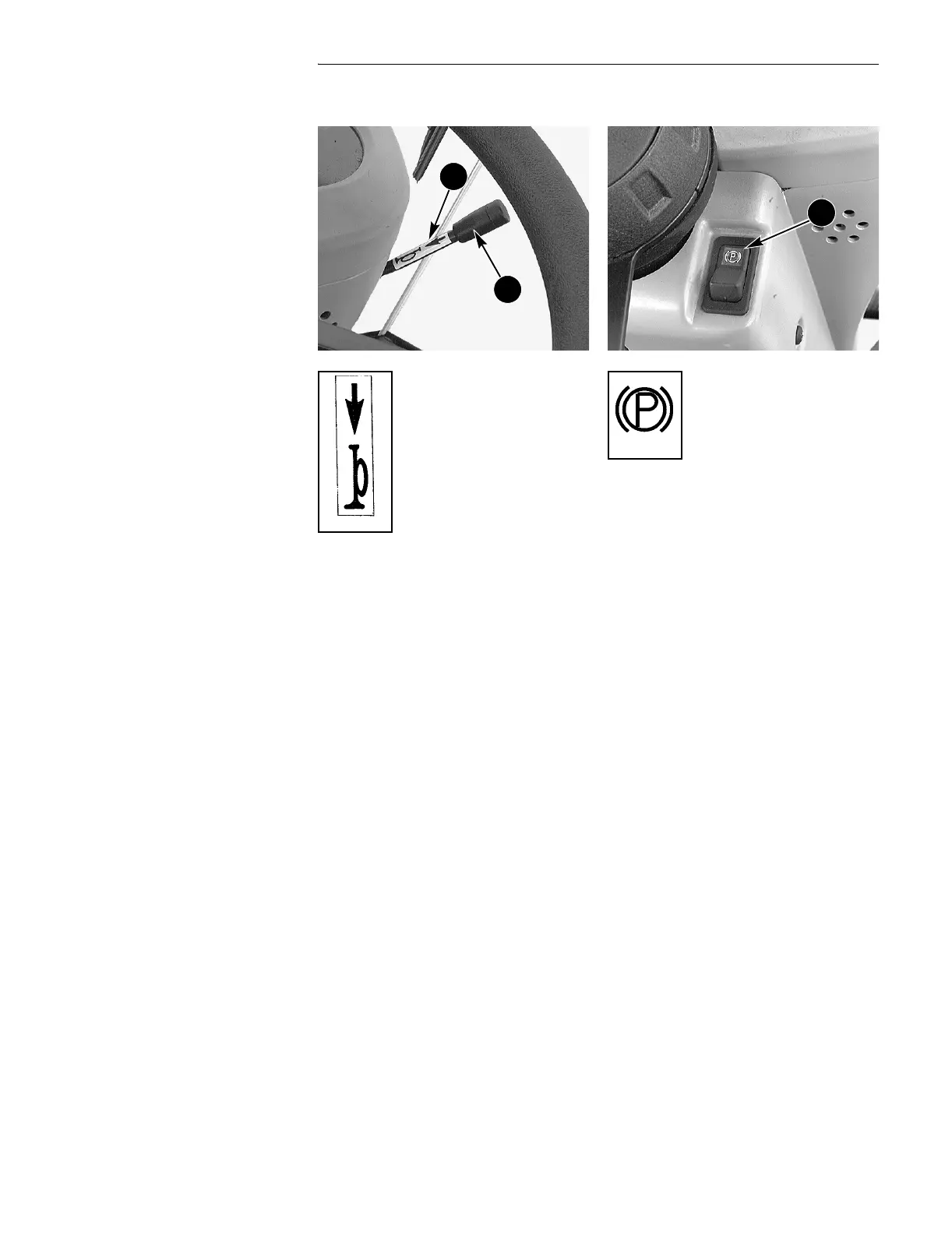

9. HORN:
Push the horn button to
actuate the horn.
10. TURN SIGNAL
LEVER:
Push the control lever up
to signal a left turn. Pull the
control down to signal a
right turn. You must move
the control lever to the center position
to stop the signal.
RD98K313
11. PARKING BRAKE
SWITCH:
NOTE: Make sure the
machine has come to a
complete stop before
applying the parking brake.
Push down on the top of the park brake
switch to ENGAGE the parking brake.
IMPORTANT: The Parking Brake is a
spring applied, hydraulic released
brake. When the key switch is turned to
the OFF position or the brake system
loses pressure the Park Brake will
engage. Always wear your seat belt
when operating.
NOTE: The service brake must be at
operating pressure before the parking
brake can be released. The Brake
Pressure Indicator Lamp must
not be
illuminated when disengaging the
parking brake. See Parking Brake in
Operating Instructions in this manual.
Push down on the bottom of the
parking brake switch, hold pressure on
the brake pedals and put the
transmission control lever either in
FORWARD or REVERSE to
DISENGAGE the parking brake
