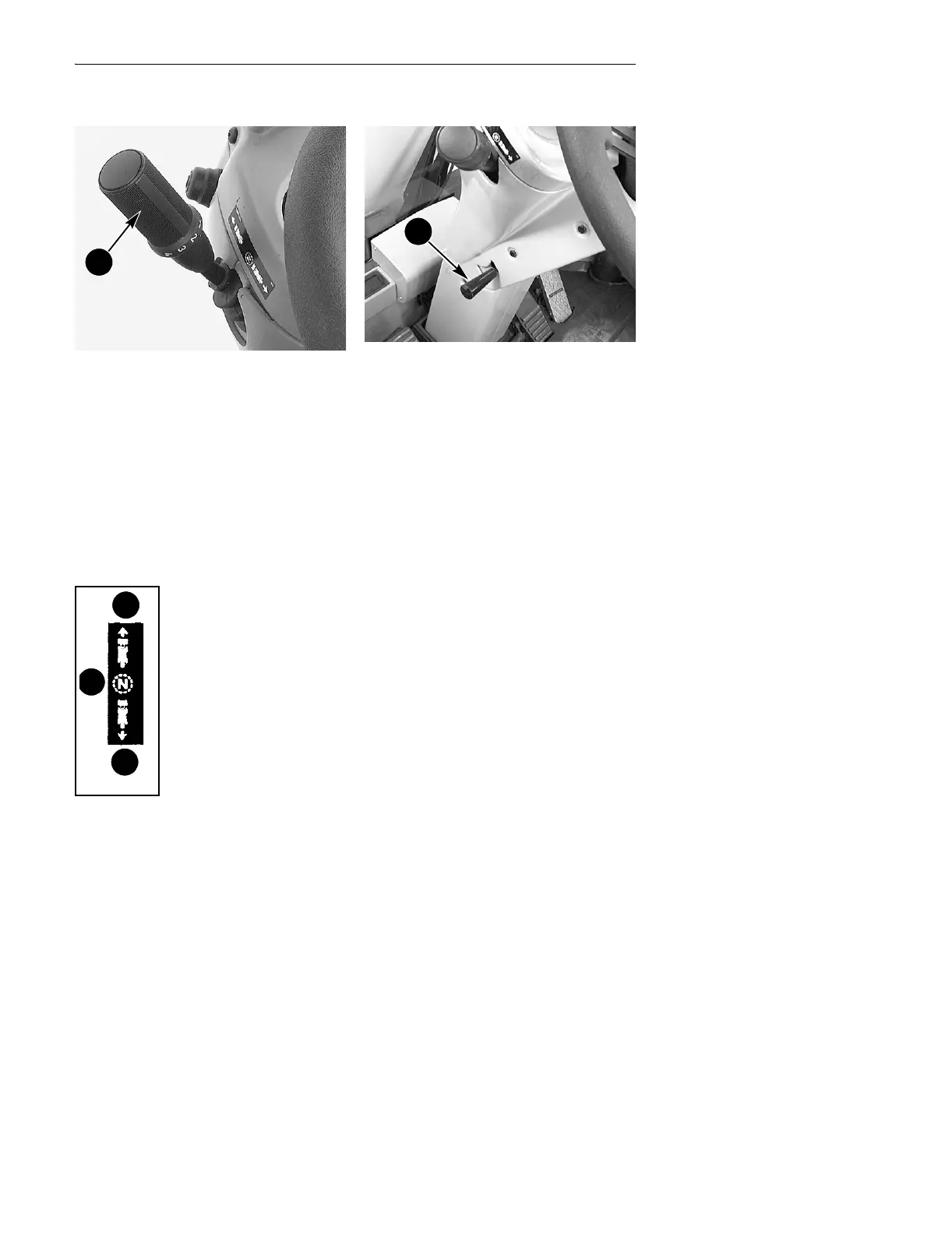

7. TRANSMISSION CONTROL
LEVER:
The transmission control lever is used
to shift the transmission gears from 1st
through 4th gear. Turn the transmission
control lever away from you to select a
higher gear or toward you to select a
lower gear. This control lever is also
used to put the transmission in
FORWARD, NEUTRAL and
REVERSE.
A. Move the control lever
away from you for
FORWARD.
B. The center position is
NEUTRAL.
C. Move the control lever
toward you for
REVERSE.
NOTE: The F-N-R function of the
Transmission Control Lever may be
moved to the Loader Control Lever for
operating efficiency. See pages 70 or
73 of this manual.
RD97F213
8. STEERING WHEEL TILT
CONTROL:
This control has multiple positions. Pull
the handle up and adjust the steering
wheel to the correct angle. Release the
control to hold in that position. Tilt the
steering wheel completely up when
leaving the machine. Always adjust the
steering wheel to the correct position
before starting the engine.
