INSTRUMENTS/CONTROLS
73
RIGHT PAGE
Bur 6-34090EUR

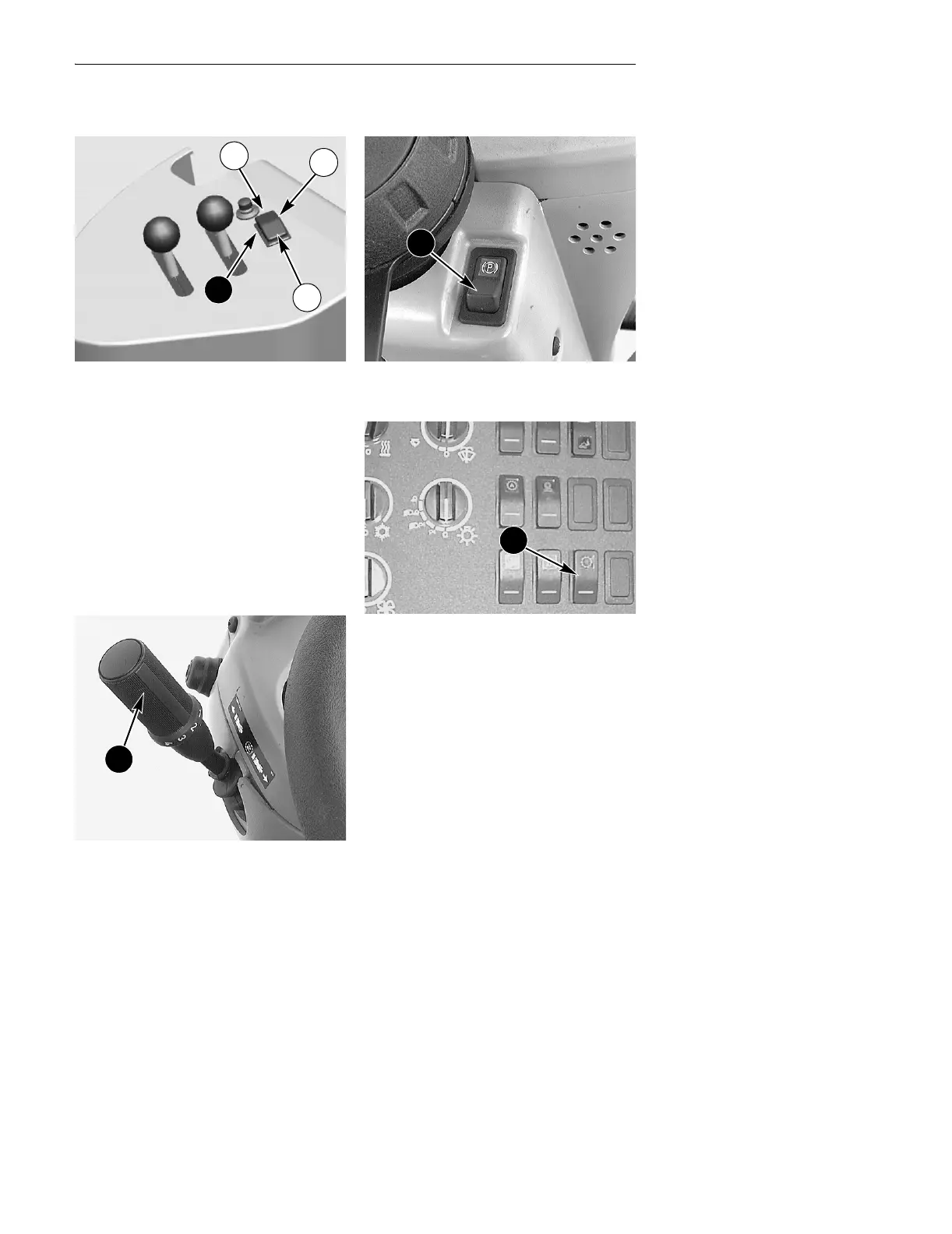

AUXILIARY F-N-R SWITCH FOR TWO SPOOL-TWO
LEVER AND THREE SPOOL-THREE LEVER VALVES
BC01E133
1. AUXILIARY F-N-R SWITCH
A. FORWARD
B. NEUTRAL
C. REVERSE
To actuate the Auxiliary F-N-R switch
the following conditions MUST be met:
1. The machine must be stopped.
2. The engine must be running.
3. The Auxiliary F-N-R Switch (1)
must be in Neutral (B).
RD98K322
4. The Transmission Control Lever
(2) must be in neutral.
RD98K313
5. The parking brake (3) must be
released.
BD01E113
When steps 1 through 5 have been met
the Auxiliary F-N-R Switch may be
enabled by pushing down on the top of
the switch (4). The indicator light on the
bottom of the switch will illuminate.
The Auxiliary F-N-R Switch will be
DEACTIVATED and F-N-R control will
default back to the Transmission
Control Lever if:
1. The engine is stopped.
2. The parking brake is applied.
3. The transmission control lever is
taken out of the neutral position.
NOTE: SeeTransmission Operation/initial machine movement for moving the
machine after engine start up.
1
A
C
B
2
3
4
