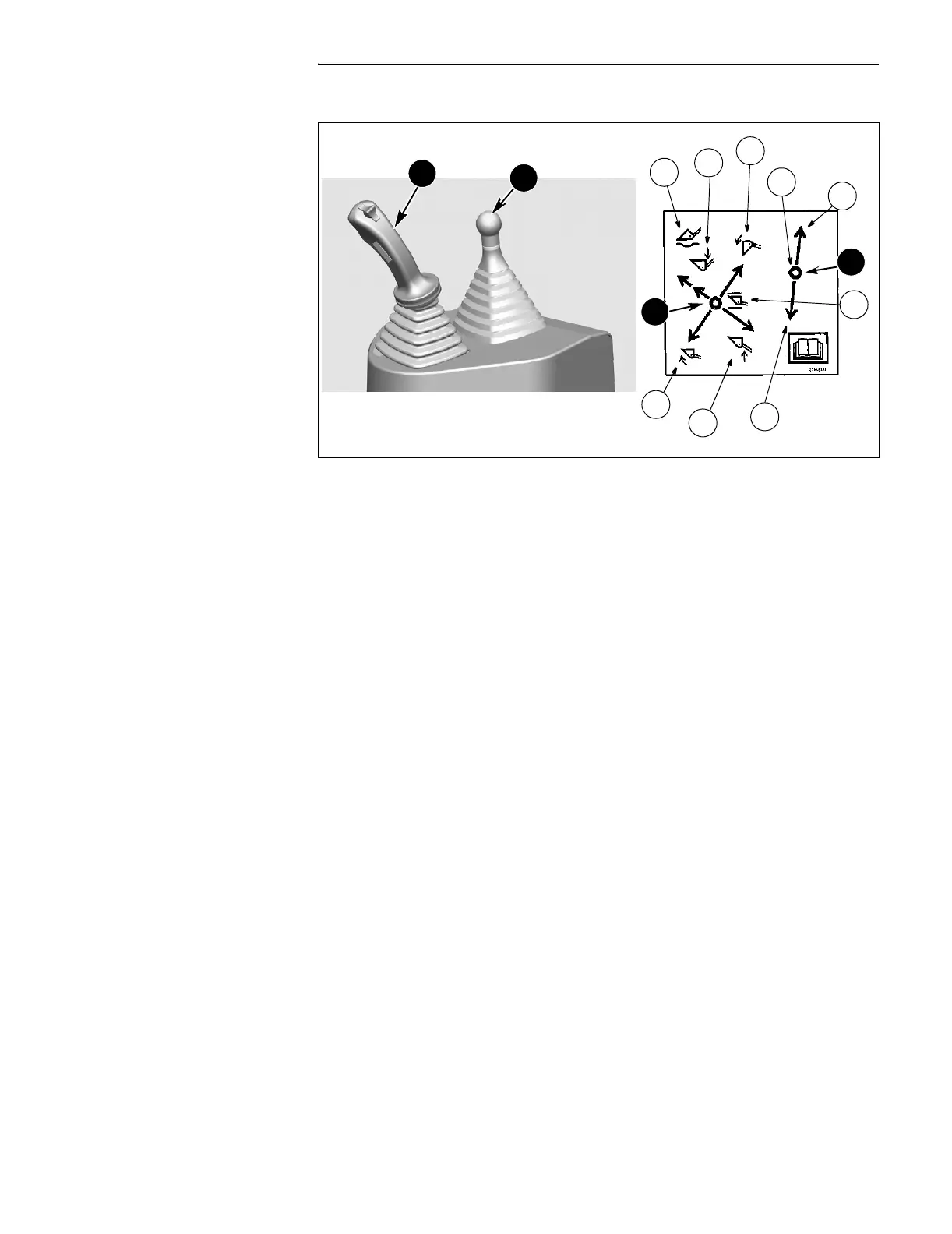

8. BUCKET AND LIFT ARM CONTROL
A. DUMP
B. ROLLBACK
C. HOLD: The loader arms and bucket will not move when the control lever is
in the HOLD position. When released, the control lever will automatically
return to the HOLD position. You must manually move the control lever
from the FLOAT position to the HOLD position.
D. FLOAT (Detent): This is a detent position. When in the FLOAT (Detent)
position, the loader bucket can follow the level of the ground without
movement of the control lever.
E. LOWER
F. RA IS E
9. AUXILIARY CONTROL (IF EQUIPPED)
IMPORTANT: If your machine is equipped with an auxiliary attachment, write the
function of the control lever positions next to the letters below.
G. ________________________________________
H. ________________________________________
I. HOLD: There will not be any auxiliary function with the control lever in this
position. When released, the control lever will automatically return to the
HOLD position.
9
8
E
A
B
G
C
D
F
H
8
9
I
