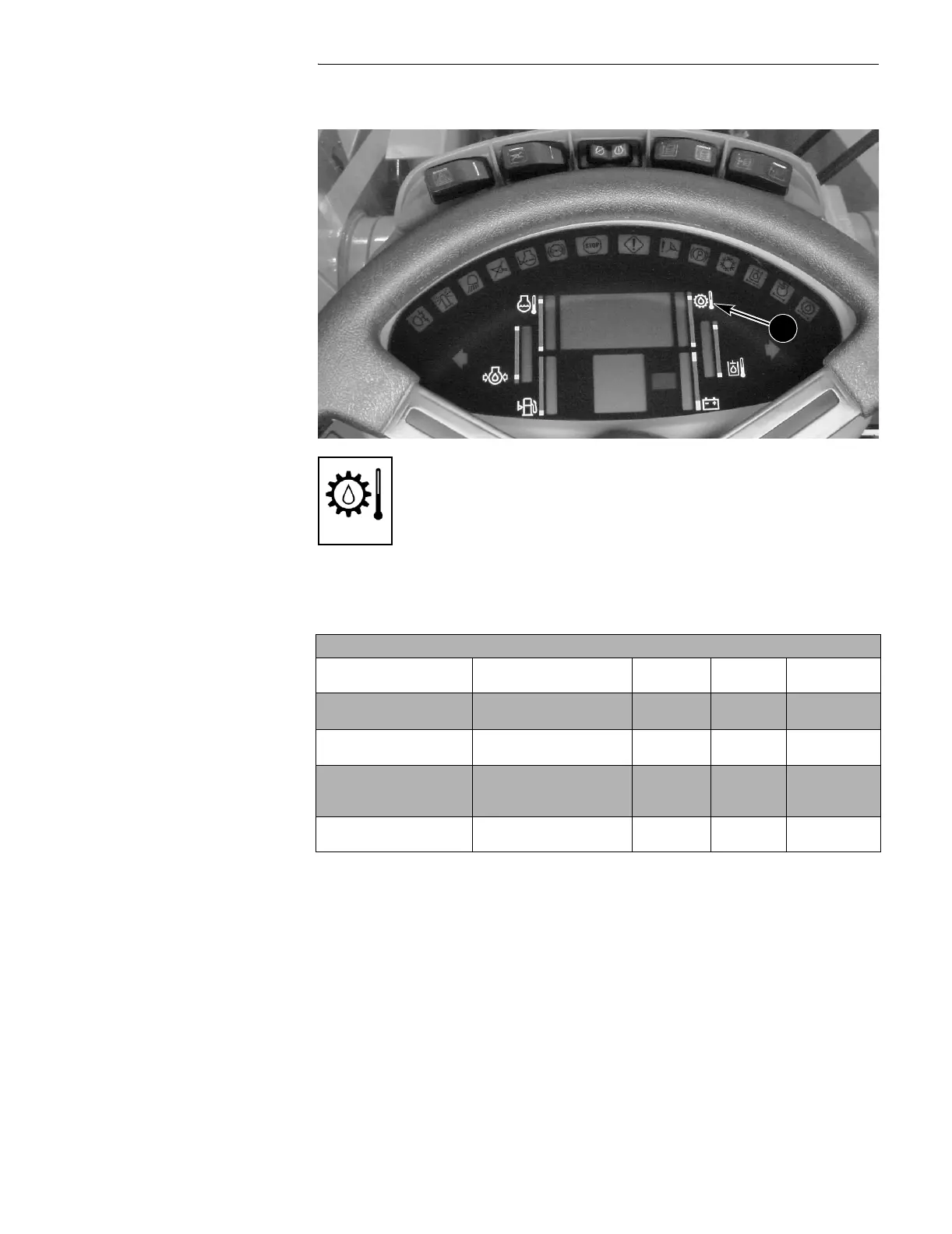

15. TRANSMISSION OIL TEMPERATURE GAUGE:
The transmission oil temperature gauge is shown with indicator bars.
Normal operating temperature is in the green zone. When the
transmission oil temperature increases, the bars move into the yellow
zone and begin to flash, the warning alarm sounds for three seconds,
and the caution master indicator turns yellow. When the temperature
continues to increase the bars move into the red zone and continue to flash, the
warning alarm will sound continuously, and the stop master indicator turns red.
The machine must not be operated when the temperature is in the red zone.
.
NOTE: To prevent damage to the transmission, stop the machine, shift the
transmission to NEUTRAL, and run the engine at full throttle until the transmission
cools. If the transmission oil temperature does not return to normal operating
temperature, run the engine at idle speed and check the transmission oil level.
Correct the problem before continuing to operate the machine
TRANSMISSION OIL TEMPERATURE GAUGE
Gauge
Indication
Condition Master
Indicator
Gauge
Status
Alarm
Status
20°C and below
(68
°F and below)
Oil temperature
is very low
20 to 120°C
(68 to 248
°F)
Oil temperature
is normal
120 to 125°C
(248 to 257
°F) (See the
note below.)
Oil temperature
is high
Caution
(Yellow)
Flashes 3 Seconds
125
°C and above
(257
°F and above)
Oil temperature
is very high
Stop
(Red)
Flashes Continuous
