INSTRUMENT PANEL INDICATORS
BD02B020

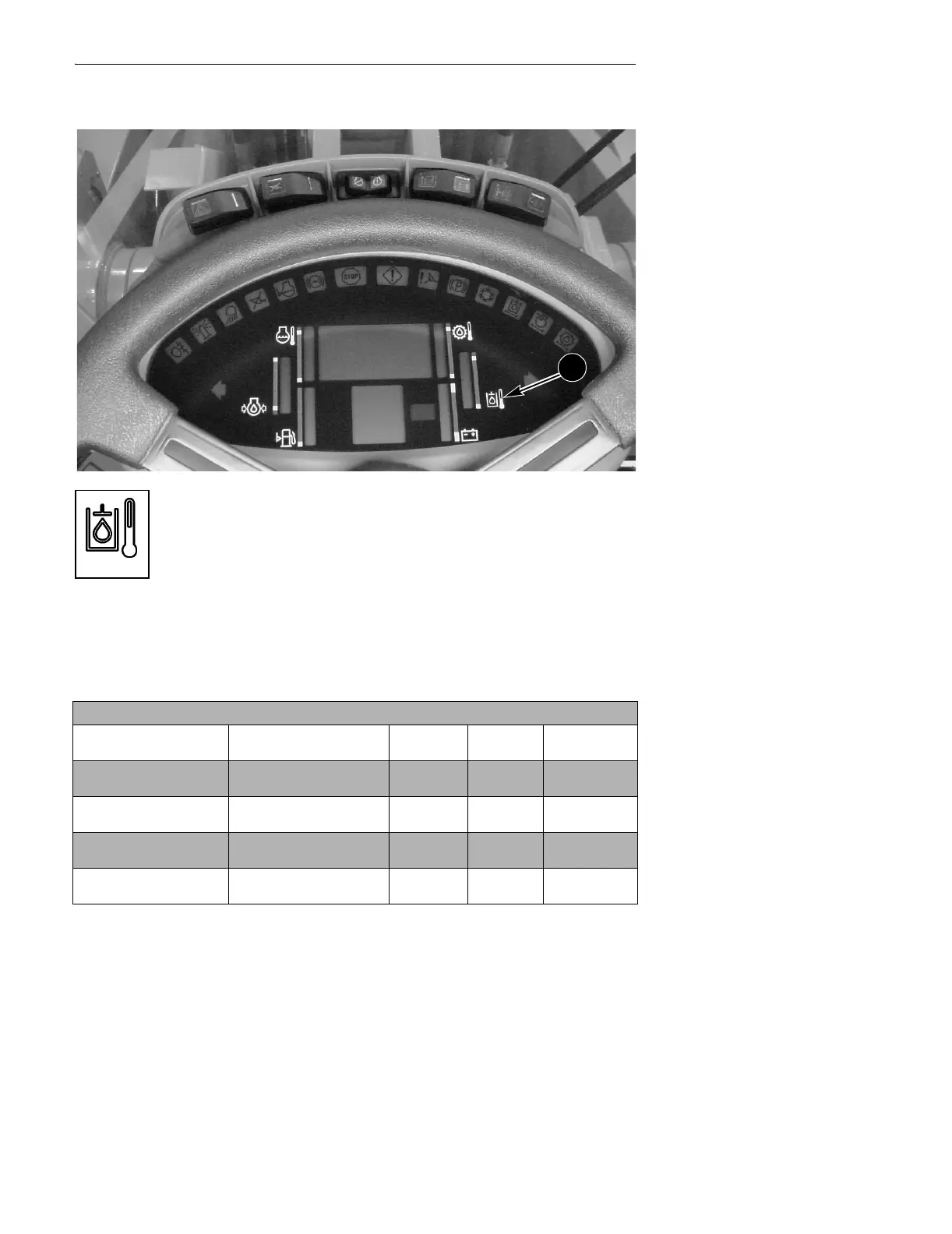

16. HYDRAULIC OIL TEMPERATURE GAUGE:
The Hydraulic Oil Temperature Gauge indicates the oil temperature
of the hydraulic system. The hydraulic oil temperature gauge is
shown with indicator bars. Normal operating temperature is in the
green zone. When the hydraulic oil temperature increases the bars
move into the yellow zone and begin to flash, the warning alarm
sounds for three seconds, and the caution master indicator turns yellow. When
the temperature continues to increase the bars move into the red zone and
continue to flash and the warning alarm sounds continuously. The stop master
indicator turns red. The machine must not be operated when the temperature is in
the red zone
.
NOTE: Stop the machine and correct the problem.
HYDRAULIC OIL TEMPERATURE GAUGE
Gauge
Indication
Condition Master
Indicator
Gauge
Status
Alarm
Status
20°C and below
(68
°F and below)
Hydraulic oil
temperature is very low
20 to 105°C
(68 to 221
°F)
Hydraulic oil
temperature is normal
105 to 110°C
(221 to 230
°F)
Hydraulic oil
temperature is high
Caution
(Yellow)
Flashes 3 Seconds
110
°C and above
(230
°F and above)
Hydraulic oil
temperature very high
Stop
(Red)
Flashes Continuous
16
BC00B123
