INSTRUMENTS/CONTROLS
53
RIGHT PAGE
Bur 6-34090EUR
INFORMATION CENTER
BD02B020
TRANSMISSION OIL TEMPERATURE - Displays the transmission oil
temperature in Celsius with the transmission oil temperature bar graph flashing.
HYDRAULIC OIL TEMPERATURE - Displays the hydraulic oil temperature in
Celsius with the hydraulic oil temperature bar graph flashing.
VOLTMETER - Displays the electrical system voltage level in volts with the
voltmeter bar graph flashing.
Programming Your Information Center
NOTE: To program your instrument cluster the machine must be off.

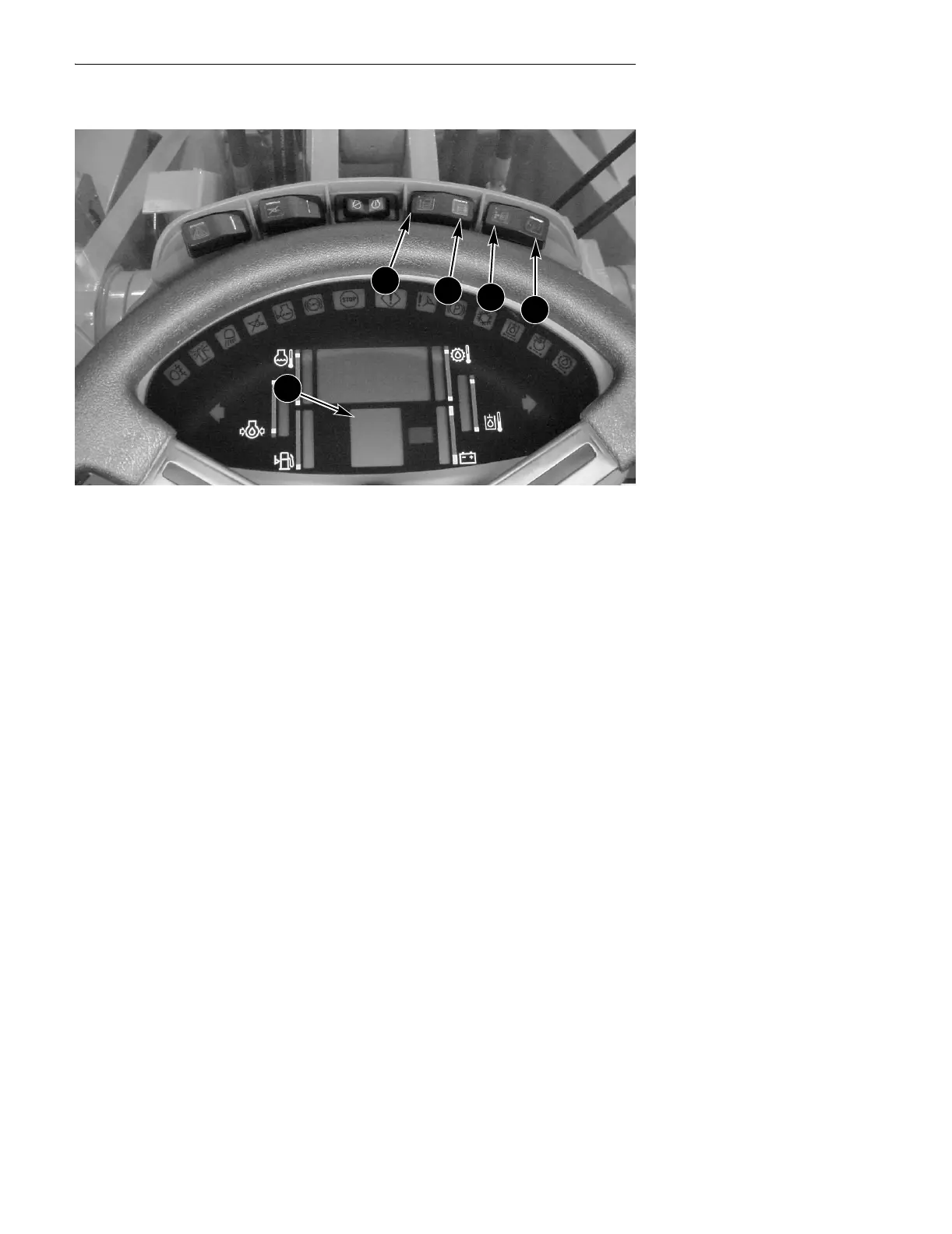

To program your Information Center, you need to use two switches, the up/
down count (A, B) switch and the program/reset (C, D) switch. These switches
are located on the Right Hand side of the front console.
For an up count (A) press the left side of the up/down count (A, B) switch. For a
down count (B) press the right side of the up/down count (A, B) switch.
For programming (C) press the left side of the program/reset (C, D) switch. For
resetting (D) press the right side of the program/reset (C, D) switch.
NOTE: The program/reset (C, D) switch is a three position rocker switch. The
center position is
OFF or NEUTRAL.
A. UP COUNT C. PROGRAM
B. DOWN COUNT D. RESET
1
A
B
C
D
