INSTRUMENTS/CONTROLS
84
LEFT PAGE
Bur 6-34090EUR
SIDE CONSOLE
BD02B022

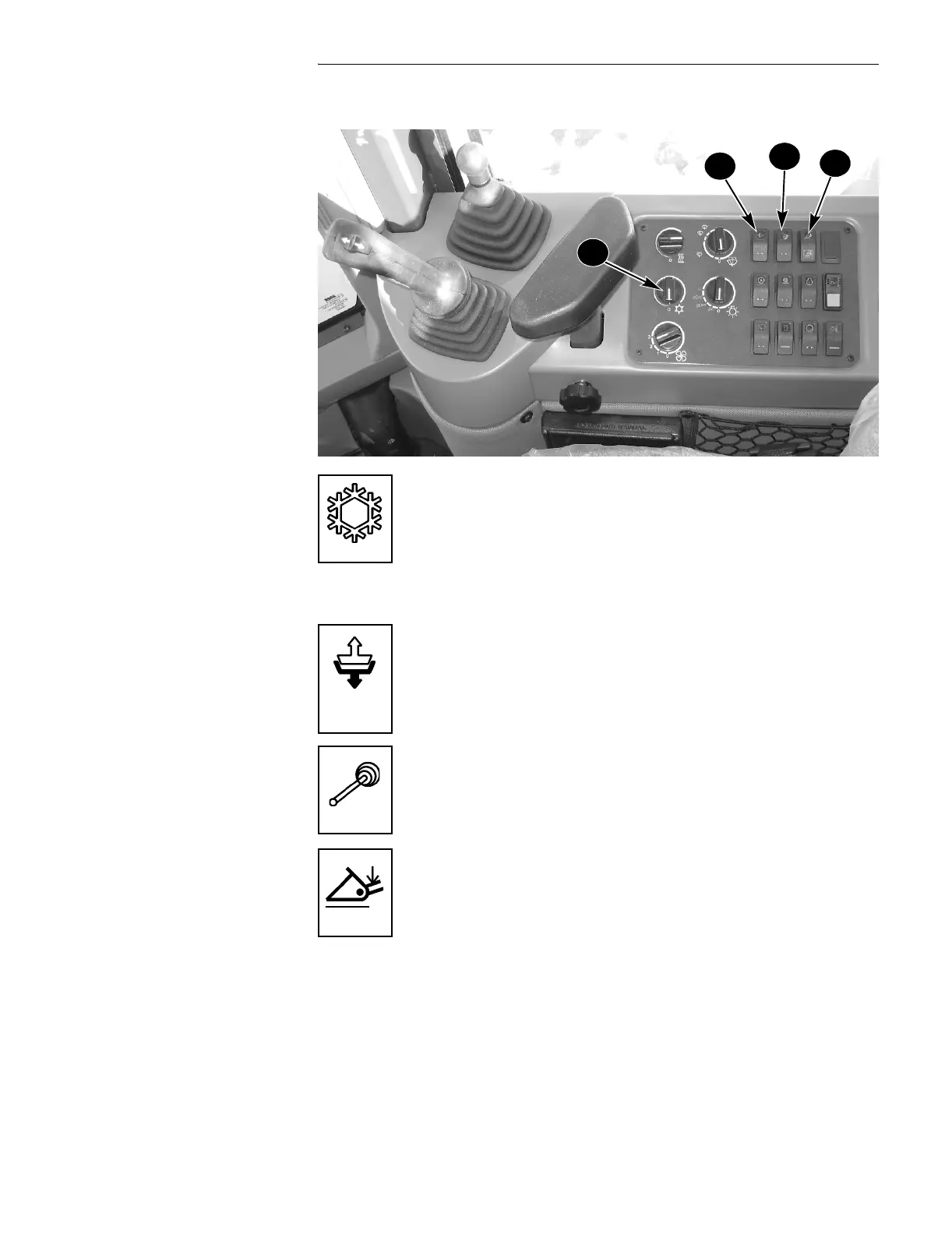

8. AIR CONDITIONING TEMPERATURE CONTROL (IF
EQUIPPED):
Turn the control clockwise for ON. Adjust the control to the needed
temperature. Turn the control counterclockwise for OFF (see
Recirculation Louvers in this manual). Select the desired fan speed.
NOTE: For maximum cooling make sure the water inlet on the engine for the
heater is in the full OFF position.
9. DECLUTCH SWITCH:
The declutch disengages the transmission when maximum power is
needed for the loader (the foot pressure required to disengage the
transmission is adjustable, see Declutch Adjustment on page 195 of
this manual). Push down on the top of the declutch switch and push
on either brake pedal to operate the machine with the declutch.
10. DETENT ON/OFF SWITCH:
The Detent On/Off switch is used engage all detents. Push down on
the top of the detent on/off switch to engage all detents. Push the
bottom of the switch for the OFF position.
11. RETURN-TO-TRAVEL SWITCH:
The Return-To-Dig switch is used to automatically return the loader
bucket to the dig position after you have dumped the loader bucket.
Push down on the top of the Return-To-Travel switch to engage all
detents. Push the bottom of the switch for the OFF position.
8
9
10
11
BS98M034
BC00B098
BC00B097
BC00B086
