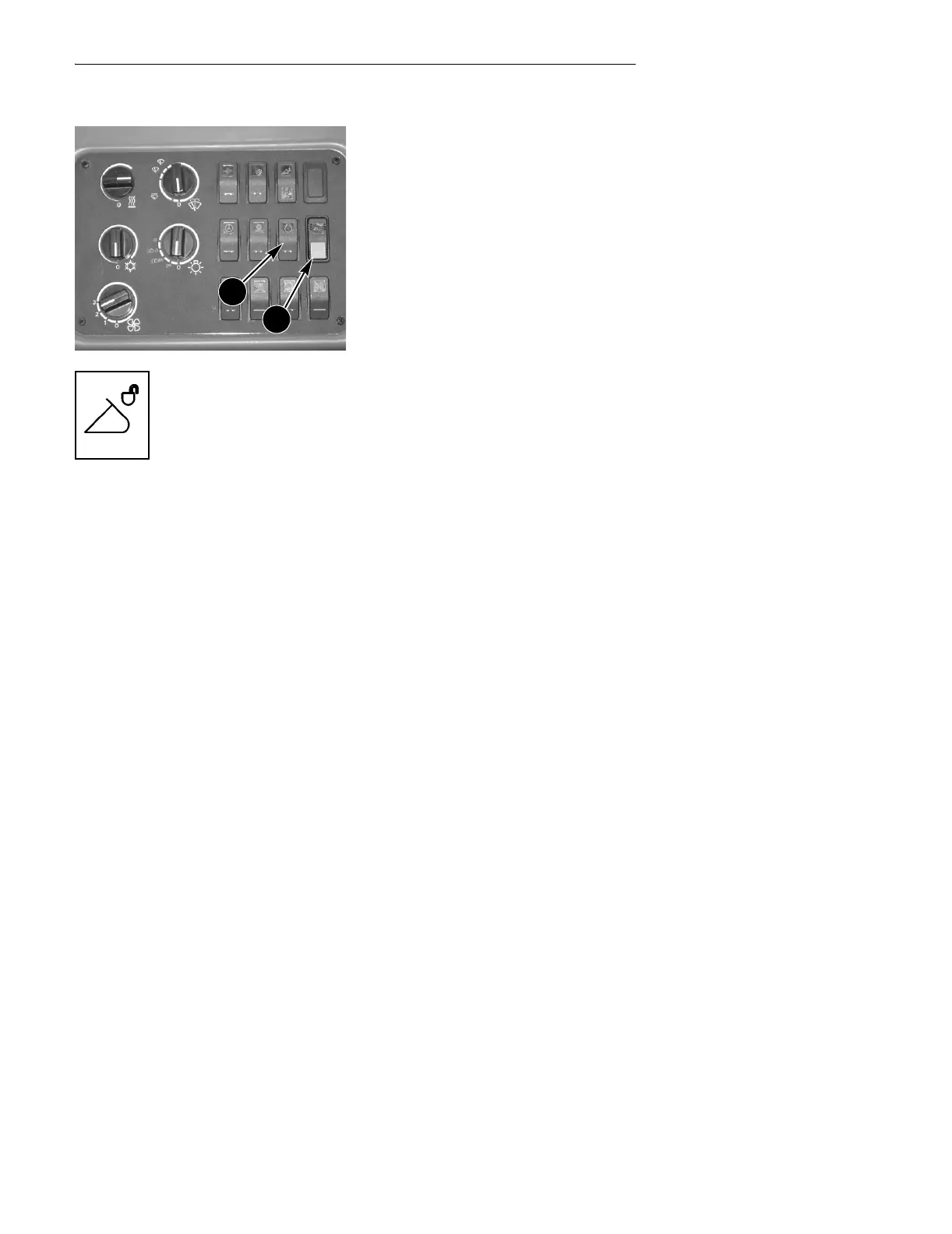

17. COUPLER PIN ENGAGE SWITCH ( IF EQUIPPED):
Slide the locking plate towards the center of the switch, push down on
the top of the switch to RETRACT the pins. The switch lamp will
illuminate when the pins are retracted. The switch will lock in the PIN
EXTENDED position after the bottom of the switch has been pressed
and the PINS EXTENDED.
18. ENGINE ECONOMY SWITCH
Push the top of the switch to have the engine change to the economy mode. The
switch lamp will illuminate when in the economy mode. Depending on working
conditions and operator use of the machine, fuel economy can be realized in this
mode.
