INSTRUMENTS/CONTROLS
86
LEFT PAGE
Bur 6-34090EUR

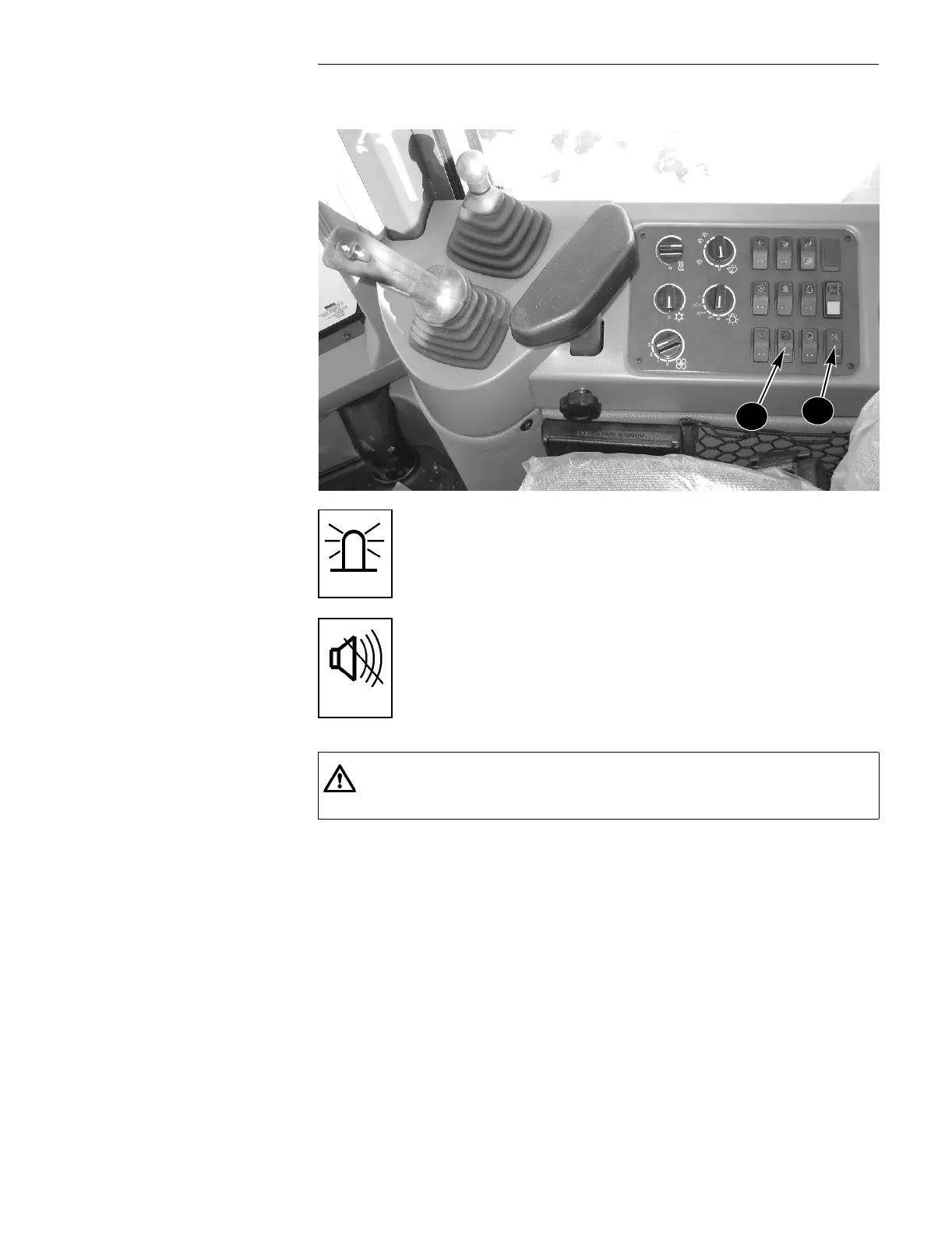

SIDE CONSOLE
BD02B022
15. ROTATING BEACON SWITCH (IF EQUIPPED):
Push the tip of the rotating beacon switch for the ON position and
push the bottom of the switch for the OFF position.
16. BACKUP ALARM CANCELLATION SWITCH (IF EQUIPPED):
Push down on the top of the backup alarm ON/OFF switch to turn the
audible sound OFF for the backup alarm. The symbol on the switch
will illuminate when the backup alarm is in the OFF position.
Push down on the bottom of the backup alarm ON/OFF switch to turn
the audible sound ON for the backup alarm.
M564
WARNING: The backup alarm OFF function is to be used ONLY when the
wheel loader is driven on the road and MUST BE TURNED ON when back
on the job site.
15
16
BS98M034
BCOOBO79
